Cold Drawn Stainless Steel Seamless Pipe Food Grade 304 304L 2mm Thick 4 Inch 6 Inch
Cold Drawn Stainless Steel Seamless Pipe Food Grade 304 304L 2mm Thick 4 Inch 6 Inch
Specifications
Brand Name :
TISCO
Model Number :
304 304L
Certification :
ISO,SGS
Place of Origin :
CHINA
MOQ :
3 tons
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
3000 tons per month
Delivery Time :
ship within 10 days after received the advance
Packaging Details :
Standard export packing (waterproof paper + steel rings), or as your requirement
Name :
Stainless Steel Pipe
Standard :
ASTM, DIN, JIS, GB, EN, ASME
Grade :
304 304L
Thickness :
0.8-20mm
Diameter :
15-220mm
Length :
3000-12000mm
Technic :
Cold Rolled
Finish :
Mill Finish ;Bright or Mirror ;Satin Brushed
Application :
Decorative ,industrial,building material, and gas transportation.
Description

Low Price Food Grade 304 304L 2mm Thick 4 Inch 6 Inch Cold Drawn Stainless Steel Seamless Pipe

What is a seamless steel tube?
Seamless tubes are as defined – they do not have a welded seam. The tubing is manufactured through

an extrusion process where the tube is drawn from a solid stainless steel billet and extruded into a hollow

form.

What is stainless steel pipe used for?
Stainless Steel Pipe. Stainless steel pipe is primarily used in piping systems for the transport of fluids or gases.

We manufacture steel pipe from a steel alloy containing nickel as well as chromium, which give stainless steel its

corrosion-resistant properties.

Is 304 the same as 304L?

Type 304 and 304L have very similar chemical and mechanical properties. The only difference between them is the carbon content; the 304 stainless steel has a maximum range of carbon of 0.08% whereas the 304L has a maximum range of 0.03%. This range of carbon in the steel affects the corrosion resistance of the tanks.

Product Description

Name

Stainless Steel Round Pipe

Standard

ASTM A554,ASTM A312

Material Grade

201,202,304,304L,316,316L,430

Diameter

15-220mm

Thickness

0.5-30mm

Length

6m or as customers' request


Tolerance

a) Outer Diameter: +/- 0.2mm

b) Thickness: +/- 0.02mm

c) Length: +/- 5mm

Surface

180G, 320G Satin/Hairline
400G, 600G Mirror finish

Application

handrail,railing, staircase, weldmesh screen,door,window, balcony,fence,bench,furniture,etc

Test

Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT





Chemical Composition of Material


Material


Composition

201

202

304

316L

430

C

≤0.15

≤0.15

≤0.08

≤0.035

≤0.12

Si

≤1.00

≤1.00

≤1.00

≤1.00

≤1.00

Mn

5.5-7.5

7.5-10

≤2.00

≤2.00

≤1.00

P

≤0.06

≤0.06

≤0.045

≤0.045

≤0.040

S

≤0.03

≤0.03

≤0.030

≤0.030

≤0.030

Cr

13-15

14-17

18-20

16-18

16-18

Ni

0.7-1.1

3.5-4.5

8-10.5

10-14

Mo

2.0-3.0


Mechanical Property

Material Item

201

202

304

316

Tensile Strength

≥535

≥520

≥520

≥520

Yield Strength

≥245

≥205

≥205

≥205

Extension

≥30%

≥30%

≥35%

≥35%

Hardness (HV)

<105

<100

<90

<90

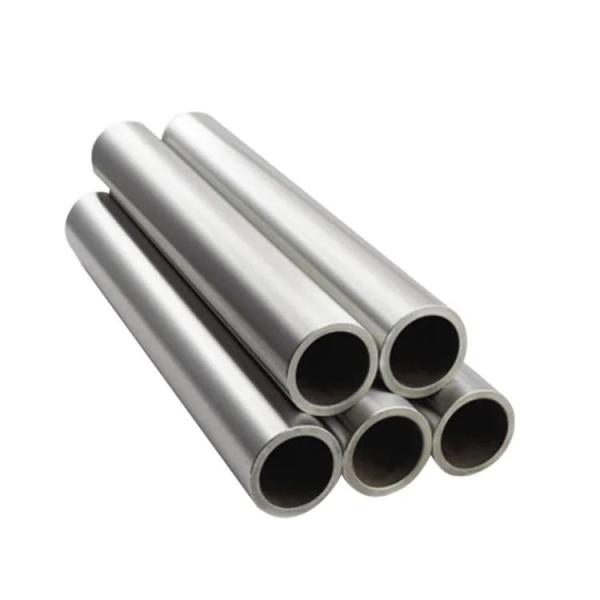

Product display

Cold Drawn Stainless Steel Seamless Pipe Food Grade 304 304L 2mm Thick 4 Inch 6 Inch

Application

Cold Drawn Stainless Steel Seamless Pipe Food Grade 304 304L 2mm Thick 4 Inch 6 Inch

Cold Drawn Stainless Steel Seamless Pipe Food Grade 304 304L 2mm Thick 4 Inch 6 Inch

Shipping:

1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)
2. Goods delivered by 20" , 40" FCL/LCL by quantity or customer's request.
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 10-30days after conformed or according to quantity.

Cold Drawn Stainless Steel Seamless Pipe Food Grade 304 304L 2mm Thick 4 Inch 6 Inch
