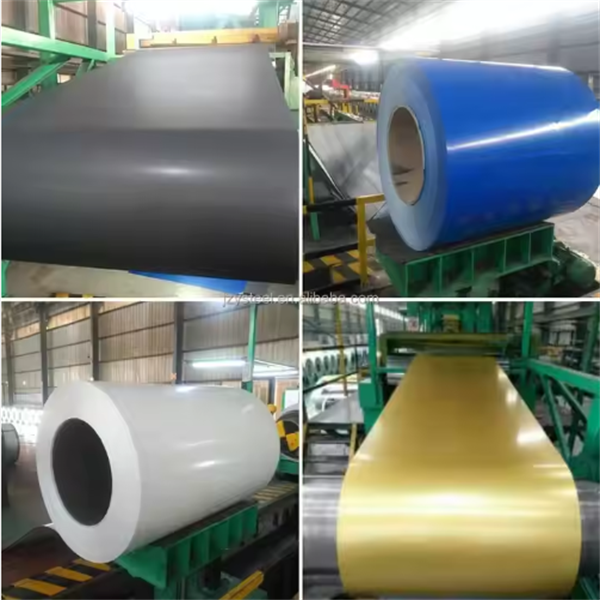

0.15mm-1.5mm PPGI Steel Coil Manufacturers Custom Available
0.15mm-1.5mm PPGI Steel Coil Manufacturers Custom Available
0.15mm-1.5mm PPGI Steel Coil Manufacturers Custom Available
0.15mm-1.5mm PPGI Steel Coil Manufacturers Custom Available
0.15mm-1.5mm PPGI Steel Coil Manufacturers Custom Available
0.15mm-1.5mm PPGI Steel Coil Manufacturers Custom Available
Specifications
Brand Name :
Baosteel,TISCO，WISCO，CHINA STEEL UNION
Model Number :
Thickness 0.1mm-20mm, can be customized
Certification :
ISO9001,SGS, ASTM, ASME
Place of Origin :
CHINA AnHui
MOQ :
1ton
Price :
385-560USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
2 metric tons per month
Delivery Time :
3-5Days
Packaging Details :
Steel strip + kraft paper + fumigated wooden box export exquisite packaging
Name :
PPGI Steel Coil Manufacturers
Coating Thickness :
Top-15-35
Packing :
Standard Seaworthy Packaging
Gloss :
60-80 Degrees
Front Paint Coating :
14-25um
Stock :
Stock
Coil Id :
508-610mm,as per your request
Top Paint Thickness :
10-25 microns
Product Keywords :
Galvanized Steel Coil Z275 China
Shape Type :
Steel Coil, Hot-Galvanized Steel Coil
Skin Pass :
Yes
Ral Color :
all colors
Payment Term :
30%TT Advance + 70% Balance
Temper :
Full hard ,half hard , soft
Type :
Steel Coil, Color Coated Steel Sheet
Description

PPGI Steel Coil With PE/PVDF Coating 0.15-1.5mm Thickness Custom Sizes Available

PE/PVDF Coated PPGI Steel Coils are precision-engineered for industries requiring ​ultra-thin yet durable materials with ​exceptional surface finishes. Available in ​0.15–1.5mm thicknesses and customizable widths (200–1,500mm), these coils are ideal for lightweight roofing, precision appliances, and decorative architectural elements. Featuring ​polyester (PE) or ​polyvinylidene fluoride (PVDF) coatings, they comply with ​ASTM A755, EN 10169, and JIS G3312 standards, offering flexibility for both cost-sensitive projects and high-end UV-resistant applications.

Key Features:

  • ​Ultra-Thin Versatility: 0.15mm for electronics/consumer goods to 1.5mm for structural cladding.
  • ​Coating Excellence:
    • ​PE Coating: 20–25µm thickness, 100+ RAL colors, ideal for indoor use.
    • ​PVDF Coating: 25–35µm thickness, superior UV/chemical resistance (25+ years outdoor).
  • ​Custom Sizing: Tailored widths/lengths (e.g., 200mm strips for LED strips, 1,500mm roofing panels).
  • ​Corrosion Resistance: Z60–Z275 galvanized base + chromium-free primer for C3–C5 environments.
  • ​Eco-Compliance: RoHS, REACH, and Green Label certified for sustainable manufacturing.
  • ​Fast Processing: Pre-punched, slit, or embossed options to reduce fabrication time by 50%.

​2. Technical Specifications

​Parameter ​Details
​Base Material Low-Carbon Steel (C: ≤0.06%, Mn: 0.10–0.45%, Si: ≤0.03%, P/S: ≤0.02%)
​Coating Layers Hot-Dip Galvanized (Z60–Z275) + Primer + PE/PVDF Topcoat (20–35µm)
​Grades ASTM A755 (SS Grade 33), EN 10169 (DX51D+Z), JIS G3312 (SGH340)
​Thickness Range 0.15mm–1.5mm (±0.02mm for ≤0.5mm, ±0.03mm for >0.5mm)
​Coil Dimensions Width: 200–1,500mm (±0.5mm), ID: 508/610mm, Max OD: 1,500mm
​Mechanical Properties Tensile Strength: 280–550 MPa, Yield Strength: 200–420 MPa, Elongation: 20–35%
​Surface Properties Gloss: PE (40–80 GU), PVDF (70–90 GU), adhesion (ASTM D3359): 5B
​Certifications ASTM A755, AAMA 2605 (PVDF), ISO 1461, SGS, RoHS, and TÜV Rheinland
​Key Applications Appliance casings, LED light housings, office partitions, and signage boards

​3. Why Import Our Custom-Sized PPGI Coils?

Competitive Advantages:

  • ​Affordability: ​30–40% lower costs than European suppliers for PVDF-coated coils.
  • ​Rapid Customization: 7-day lead time for non-standard sizes (e.g., 200mm x 0.3mm strips).
  • ​Zero-Defect Guarantee: 100% automated optical inspection (AOI) for coating uniformity.
  • ​Specialized Solutions: Anti-static coatings for electronics, antimicrobial finishes for healthcare.
  • ​Global Logistics: Pre-stocked in Dubai, Houston, and Rotterdam hubs for 5-day regional delivery.
  • ​Technical Partnership: Free material samples, DFM (Design for Manufacturing) reports, and CAD support.
  • ​Warranty: 10-year PE / 20-year PVDF coating warranty + 24-month corrosion protection.

0.15mm-1.5mm PPGI Steel Coil Manufacturers Custom Available0.15mm-1.5mm PPGI Steel Coil Manufacturers Custom Available

​4. Industry-Specific Applications

Industry ​Use Cases
Consumer Electronics Laptop bases, smartphone backplates, and smartwatch charger housings.
Home Appliances Microwave oven panels, refrigerator liners, and air fryer exteriors.
Architecture & Design Decorative wall panels, suspended ceilings, and modular furniture.
Advertising Durable outdoor billboards, lightbox signages, and exhibition displays.
Automotive Interior trim parts, EV charging station covers, and motorcycle fairings.
Renewable Energy Solar panel backing sheets, wind turbine sensor housings.
Medical Devices MRI machine covers, surgical instrument trays, and dental equipment casings.

FAQ

1. Who are we?

Our headquarters is located in Anhui, China. Since 2010, we have sold to the domestic market (30.00%), South Asia (10.00%), South America (10.00%), North America (10.00%), Southeast Asia (10.00%), and Africa (5.00%) , Northern Europe (5.00%), Central America (5.00%), Middle East (5.00%), Western Europe (3.00%), Oceania (3.00%), Southern Europe (2.00%), East Asia (1.00%), Eastern Europe (1.00%) . There are about 11-50 people in total in our factory.

2. How do we ensure quality?

There are always pre-production samples before mass production;

Always conduct final inspection before shipment;

3. What can you buy from us?

PPGI Steel Coil,PPGI Steel Sheet, stainless steel pipe, stainless steel coil, stainless steel strip, wear-resistant plate, galvanized steel plate

4. Why should you buy from us instead of other suppliers?

The company introduces advanced technology and equipment, and its products are exported to Western countries such as the United Kingdom and the United States. It has strong technical force and experienced technical and management personnel.

5. What services can we provide?

Accepted delivery terms: FOB, CFR, CIF, EXW;

Accepted payment currencies: USD;

Accepted payment methods: T/T, L/C, cash;

Languages spoken: English, Chinese
