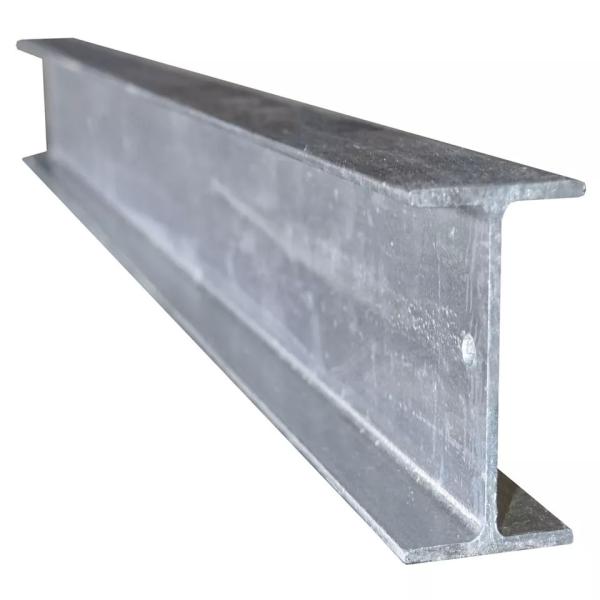

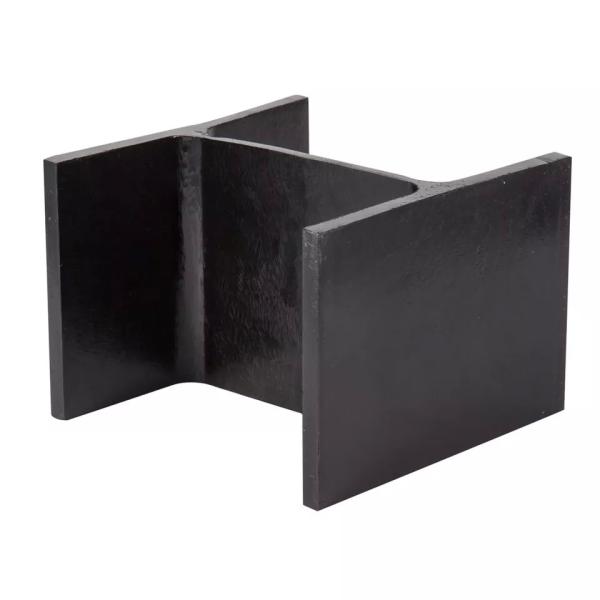

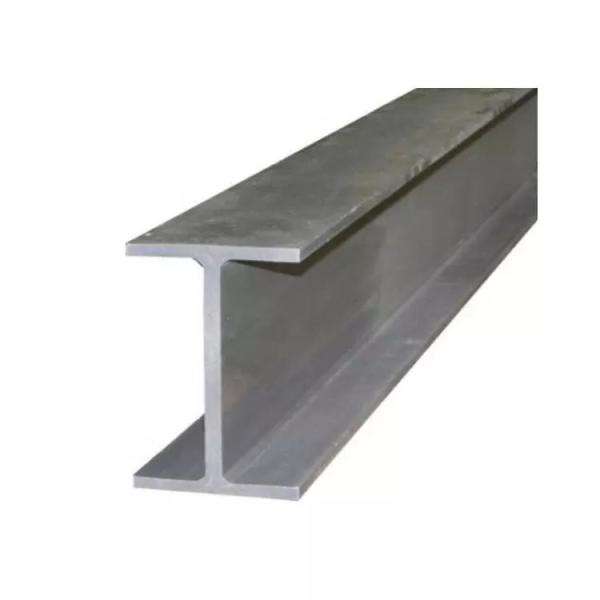

Custom Welded Stainless Steel H Channel 1m-12m Length Structural Steel H Beam
Custom Welded Stainless Steel H Channel 1m-12m Length Structural Steel H Beam
Custom Welded Stainless Steel H Channel 1m-12m Length Structural Steel H Beam
Custom Welded Stainless Steel H Channel 1m-12m Length Structural Steel H Beam
Custom Welded Stainless Steel H Channel 1m-12m Length Structural Steel H Beam
Custom Welded Stainless Steel H Channel 1m-12m Length Structural Steel H Beam
Specifications
Brand Name :
WOSHANG
Model Number :
301 304 316 430 201 303 302 420 317
Certification :
SGS ISO ROHS
Place of Origin :
China
MOQ :
1 ton
Price :
Negotatable
Payment Terms :
T/T, L/C
Supply Ability :
200 tons per day
Delivery Time :
7-15 days
Packaging Details :
Marine export packing
Product Name :
Stainless Steel Circle
Tolerance :
±1%
Length :
3000mm-12000mm Or Customize
Thickness :
3mm-35mm Or Customize
Technique :
Cold Rolled Hot Rolled
Pay terms :
T/T L/C
Trade terms :
FOB CIF CFR
MOQ :
1 ton
Description

1-12m or as customer request length stainless steel H Beam H Channel

Product Name
Steel Profile H Beams/Section H Beam/Structural Steel HBeam per kg
Standard
JIS G3101 / EN10025 / ASTM A36 / ASTM A572 / ASTM A992
Shape
H Channel/I Channel
Technique
Hot rolled/Welded
Materials
Q235B,Q345B,Q460C,SS400,S275JR.S355JR,A572,A992
Size
100*50-700*300mm
Web Thickness
5-16mm
Web Width
50--300mm
Flange Thickness
4.5-23mm
Flange Width
50-400mm
Steel Grade
G300 G350 S275JR S355JR,SS400,ASTM36,S235jr,S235jo, Q235B and Q345B etc.
Standard
ASTM, ANSI, GB, DIN, JIS, EN, ISO.
Surface Treatment
Hot Dip Galvanized, Painting or Black.
Length
1-12m or as customer request
Technique
Hot rolled/Cold Rolled/Galvanized
Custom services
Cutting-Punching-Drilling
Packing
By bundles with steel strips or as customer request
Delivery Time
15 days after receive advance payment or L/C
Application
Mechanical&manufacture,Steel structure,Shipbuilding,Bridging,Automobile
chassis.

Chemical composition

Grade C(max) Mn(max) P(max) S(max) Si(max) Cr(max) Ni(max) Mo(max)
201 0.15 5.5-7.5 0.06 0.03 1 16-18 3.5-5.5 -
304 0.08 2 0.045 0.03 1 18-20 8-10.5 -
304L 0.03 2 0.045 0.03 1 18-20 8-12 -
316 0.08 2 0.045 0.03 1 16-18 10-14 2-3
316L 0.03 2 0.045 0.03 1 16-18 10-14 2-3
321 0.08 2 0.045 0.03 0.75 17-19 9-12 -

Custom Welded Stainless Steel H Channel 1m-12m Length Structural Steel H Beam

Our advantage:

1.Online service:If you have any questions about aspects of stainless steel or want to get a free sample, please send us your inquiry, we will get back to you within one business day,

2. Best price: We have our own factory, all products in accordance with ex-factory price, cheap, and the quality of high quality.

3. ISO Certified: Our business philosophy is Total Quality Management, from monitoring our own performance to strategic planning and results measurement.

4. Quick Delivery: Buyer will be kept informed of the order production progress. Best delivery and direct shipping line.Short lead times of 5 days or less available on most items.
