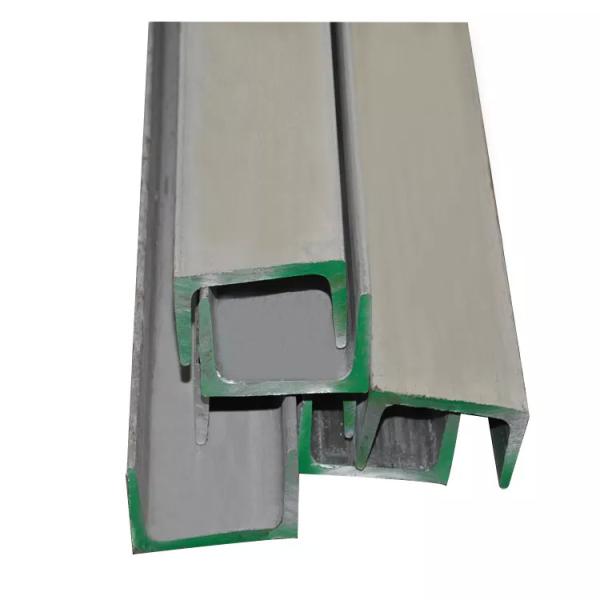

1.5mm Interior Stainless Steel U Channels 40*40 Metal U Profile For Mine Tunnels
1.5mm Interior Stainless Steel U Channels 40*40 Metal U Profile For Mine Tunnels
1.5mm Interior Stainless Steel U Channels 40*40 Metal U Profile For Mine Tunnels
1.5mm Interior Stainless Steel U Channels 40*40 Metal U Profile For Mine Tunnels
Specifications
Brand Name :
WOSHANG
Model Number :
201 301 304 316 430 420
Certification :
SGS ISO ROHS
Place of Origin :
China
MOQ :
1 ton
Price :
Negotatable
Payment Terms :
T/T, L/C
Supply Ability :
200 tons per day
Delivery Time :
7-15 days
Packaging Details :
Customized packaging
Product Name :
Stainless Steel U Channel
Tolerance :
±1%
Grade :
310S, 316, 321, 304，430，420
Tech :
cold rolled / hot rolled
Type :
U channel, C channel, I&H channel
Pay terms :
T/T L/C
Trade terms :
FOB CIF CFR
MOQ :
1 ton
Description

Rolled Stainless Steel U 40*40 Steel Profile 1.5 mm U Interior Channels China Supplier

Channel steel can be divided into 4 types shape: cold-formed equal-side channel steel, cold-formed unequal-side channel steel, cold-formed inner-coiled channel steel, and cold-formed outer-coiled channel steel.

Main features: high pressure, long support time, easy installation and not easy to deform.

Main uses: Mainly used for mine tunnels, secondary support of mine tunnels, and support and support of mountain tunnels. As the main section steel for manufacturing roadway shrinkable metal supports, U-section steel is widely used at home and abroad.

Material
200 300 400 Series stainless steel
Grade
201 202 301 303 304 304L 309 309S 310 310S 316 316L 316Ti 317L 321 2205 2507 409 409l 410 410S 420 420J1 420J2 430 441 444 904L
Dimensions
5# 8# 10# 12# 14# 16# 18# 20# 22# 24# 25# 28# 30# 32# 34# 36# 40#
Standard
AiSi ASTM JIS DIN EN BS
Tech
cold rolled / hot rolled
Type
U channel, C channel, I&H channel
Length
5.8m,6m,12m or as per customer's request
Size
50mm*37mm*4.5mm -- 400mm*104*14.5
Processing Service
Bending, Welding, Decoiling, Punching, Cutting
Place of Origin
Jiangsu China
Surface Treatment
Pickled,Black,Bright,Polishing,Blasting,etc
Payment
T/T terms, 30% pre-payment, 70% balance see B/L copy
Delivery Time
5-15 days for ordinary orders (standard orders ≦50 ton); specified orders needs final confirmation as per customer’s request

Chemical composition

Grade C(max) Mn(max) P(max) S(max) Si(max) Cr(max) Ni(max) Mo(max)
201 0.15 5.5-7.5 0.06 0.03 1 16-18 3.5-5.5 -
304 0.08 2 0.045 0.03 1 18-20 8-10.5 -
304L 0.03 2 0.045 0.03 1 18-20 8-12 -
316 0.08 2 0.045 0.03 1 16-18 10-14 2-3
316L 0.03 2 0.045 0.03 1 16-18 10-14 2-3
321 0.08 2 0.045 0.03 0.75 17-19 9-12 -

1.5mm Interior Stainless Steel U Channels 40*40 Metal U Profile For Mine Tunnels

Our advantage:

1.Online service:If you have any questions about aspects of stainless steel or want to get a free sample, please send us your inquiry, we will get back to you within one business day,

2. Best price: We have our own factory, all products in accordance with ex-factory price, cheap, and the quality of high quality.

3. ISO Certified: Our business philosophy is Total Quality Management, from monitoring our own performance to strategic planning and results measurement.

4. Quick Delivery: Buyer will be kept informed of the order production progress. Best delivery and direct shipping line.Short lead times of 5 days or less available on most items.

Our company hot sale items including copper plate/tube , aluminum plate/tube/coil ,stainless steel plate/tube/coil, carbon steel plate/tube/coil,Galvanized steel plate/tube/coil, Pre painted steel coils,PPGI/PPGL,Roofing sheets,H I U Angle Beam steel profile ,Deformed Bar&Round Bar etc. . Products are widely used in chemical, pharmaceutical, electric power, railway, automotive, paper and construction engineering. The company has long-term close trade relations with Shandong Iron and Steel, Tangshan Iron and Steel, Handan Iron and Steel, Jinxi Iron and Steel and other well-known domestic steel companies. Over the years, our company has won the trust of our customers with high-quality products, first-class service and ultra-low price. With the favor, our products are spread all over the country!
