Specifications
Brand Name :
QIANPU
Certification :
ISO
Place of Origin :
Anping of China
MOQ :
10units
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Delivery Time :
2weeks
Packaging Details :
Warpped with plastic film, then in wooden case.
Product Name :
Flat Wire Woven Mesh Facade
Material :
stainless steel wire 304
Color :
Silver, Brass, Bronze, Gold
Warp Wire Diameter :
10mm × 1.5mm.
Hole :
27mm
Surface Treatment :
Decorative plating, Powder Coating, etc.
Features :
Beautiful Appearance
Application :
Cladding and casings
Description

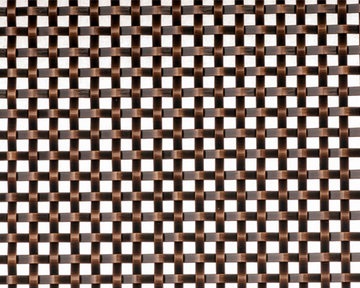

27mm Hole 10mm X 1.5mm Flat Wire Woven Mesh SS304 Beautiful Appearance

Flat wire woven mesh Introduction

Flat Wire Decorative Wire Mesh is a kind of architectural mesh. It is mostly made of high-grade stainless steel, copper or brass. Alternative metals are sometimes chosen for specific environment. This product has a wide range of weaving patterns, please see the images below. It is a simple way to give many projects from kitchens to fine furniture a unique style. It is also an exceptional element for architecture decoration; they can easily catch your eyes. Many of our products are produced with inspiration of architects and designers for interior and exterior architectural decoration purpose.

Materials:

Stainless steel: 201,202, 304, 316, 321, 410, 430
Copper: brass, pure copper, phosphor bronze
Pure Aluminum & Aluminum Alloy: 1050, 1060, 1100, 5052, 5056

Features

1: The crimped flat wires interlock to prevent slipping.
2: Big variety of colors available: natural colors and plated colors.
3: Beautiful appearance and various color option
4: High durability
5: Easy to install
6: Excellent Aesthetic appeal and functionality
7: Color never fading and paint never dropping
8: Gorgeous and chic elegant appearance

Specifications:

Warp Wire Weft Wire Open Area
W1×T1(mm) P1(mm) W2×T2(mm) P2(mm) (mm) (%)
8.0×2.0 35.0 8.0×2.0 35.0 27.0×27.0 59
8.0×2.0 24.0 8.0×2.0 24.0 16.0×16.0 44
6.4×1.0 13.4 6.4×1.0 13.4 7.0×7.0 32
3.0×1.2 10.0 3.0×1.2 10.0 7.0×7.0 49
3.2×1.6 9.5 3.2×1.6 9.5 6.3×6.3 44
6.0×1.5 12.0 6.0×1.5 12.0 6.0×6.0 25
3.0×0.8 9.0 3.0×0.8 9.0 6.0×6.0 41
2.2×0.8 6.7 2.2×0.8 6.7 4.5×4.5 45
1.7×1.0 6.2 1.7×1.0 6.2 4.5×4.5 52
3.0×1.2 7.2 3.0×1.2 7.2 4.2×4.2 34
1.5×0.8 5.0 1.5×0.8 5.0 3.5×3.5 49
3.4×1.1 6.6 3.4×1.1 6.6 3.2×3.2 43
3.2×1.2 6.4 3.2×1.2 6.4 3.2×3.2 25
10.0×1.0 13.0 10.0×1.0 13.0 3.0×3.0 5
2.4×0.9 5.1 2.4×0.9 5.1 2.7×2.7 25
4.0×1.0 6.5 4.0×1.0 6.5 2.5×2.5 15
7.0×1.0 9.0 7.0×1.0 9.0 2.0×2.0 5
1.0×0.5 2.5 1.0×0.5 2.5 1.5×1.5 36

Application

Canopies, gates, exhibit booths, retail displays, elevator cabs, stairs, balustrades, furnitures, cabinetry, partition screens, cabinets, hutches, bookcases, and more.

27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance

27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance

27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance

Packing

27mm Hole 10mm X 1.5mm Woven Flat Metal Mesh SS304 Beautiful Appearance
