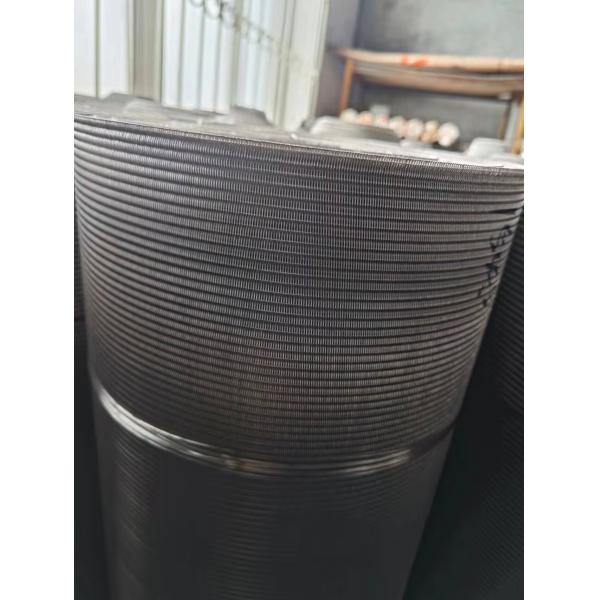

Stainless Steel 904L Dutch Weave Wire Mesh 24x110 Mesh Counts
Stainless Steel 904L Dutch Weave Wire Mesh 24x110 Mesh Counts
Stainless Steel 904L Dutch Weave Wire Mesh 24x110 Mesh Counts
Stainless Steel 904L Dutch Weave Wire Mesh 24x110 Mesh Counts
Specifications
Brand Name :
QIANPU
Certification :
ISO
Place of Origin :
ANPING, CHINA
MOQ :
5 Rolls
Price :
negotiable
Payment Terms :
T/T, Western Union, L/C
Delivery Time :
about two weeks
Packaging Details :
Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Name :
Stainless Steel Dutch Wire Mesh
Material :
Stainless steel 304, 316 and 316L
Mesh Counts :
up to 325x2300 mesh
Weave Pattern :
plain dutch, twill dutch, reverse dutch
Width :
10cm to 1.5m
Length :
10m, 20m, 30m, or as requests
Features :
durability, fine filtration capabilities, and resistance to corrosion
Applications :
Precision Filtration, Petrochemical & Oil & Gas, Aerospace & Defense and so on.
Description

Stainless steel 904L Dutch weave wire mesh 24x110 mesh counts

Introduction:

Stainless steel 904L Dutch weave wire mesh is a type of woven wire mesh made from stainless steel 904L wires using a Dutch weave pattern. This type of wire mesh combines the unique characteristics of stainless steel 904L with the filtration properties of the Dutch weave pattern.

904L Dutch weave wire mesh is a versatile and robust material suitable for various filtration and separation applications in industries where corrosion resistance, strength, and precision filtration are vital.


Material: 904L

CHEMICAL COMPOSITIONS(WT%)

C

Si

Mn

P

S

Ni

Cr

Mo

Cu

≤0.02

≤1.00

≤2.00

≤0.045

≤0.035

23.0-28.0

19.0-23.0

4.00-5.00

1.0-2.0

0.015

0.48

1.52

0.022

0.002

23.67

19.58

4.18

1.34


Dutch Weave Pattern:

The Dutch weave is a special method of weaving where the mesh has alternating fine wires and thicker wires.
The thicker wires are woven in a plain weave (over and under), and the finer wires pass through these thicker wires in a way that creates very small, consistent openings.
The resulting mesh is very strong, stable, and capable of filtering very fine particles.
Weaving Types:

Plain Dutch Weave: The standard version of the Dutch weave, where the thicker wires are woven with the finer wires running through them.
Twill Dutch Weave: In this version, the wires pass over and under multiple strands in a diagonal pattern. This creates even stronger mesh with improved flexibility and higher resistance to wear and tear.
Mesh Size:

The mesh size of stainless steel Dutch wire mesh can range from very fine (for ultrafine filtration) to coarse (for heavier-duty sieving and filtration).
Common mesh sizes range from 1 micron to larger openings, depending on the application. The finer the mesh, the smaller the particles it can filter.


Applications:

This type of wire mesh is commonly used in industries such as chemical processing, pharmaceuticals, food processing, and marine applications where corrosion resistance and precise filtration are essential.


Advantages:

Corrosion Resistance: Stainless steel 904L is known for its high resistance to corrosion in aggressive environments, and when used in Dutch weave wire mesh, it provides excellent corrosion resistance for filtration applications.


Dutch Weave Pattern: The Dutch weave pattern of this wire mesh consists of thicker warp wires and finer weft wires, allowing for precise filtration of particles based on size.


High Filtration Efficiency: The dense weave structure of Dutch weave wire mesh, combined with the corrosion resistance of stainless steel 904L, provides high filtration efficiency for various applications.


Strength and Durability: Stainless steel 904L Dutch weave wire mesh offers strength, durability, and resistance to high temperatures, making it suitable for demanding industrial environments.

Customization: 904L Dutch weave wire mesh can be customized in terms of mesh size, wire diameter, and dimensions to meet specific filtration requirements for different applications.


Longevity: Stainless steel 904L Dutch weave wire mesh is known for its longevity and reliability, making it a cost-effective solution for applications requiring durable and corrosion-resistant wire mesh.

Specifications:

Mesh Counts Wire Diameter Aperture Size Weight Thickness
warp×weft warp×weft (μm) (kg/㎡) (mm)
(Mesh/Inch) (mm)
7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.2 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.6 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.7 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.6 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135

Mesh Warp×Weft Aperture Size Available Thickness
(mesh/inch) (mm) (um) Area(%) (mm)
Warp×Weft
20×150 0.45×0.355 101 7.5 1.16
20×200 0.355×0.28 118 12.1 0.915
20×250 0.25×0.15 120 17 0.71
20×270 0.25×0.20 119 17.6 0.65
24×300 0.28×0.18 110 19.6 0.64
30×270 0.28×0.20 77 11.2 0.68
30×300 0.25×0.18 38
30×340 0.28×0.16 89 17.9 0.6
30×360 0.25×0.15
40×430 0.18×0.125 63 15.4 0.43
40×540 0.18×0.10 70 23.5 0.38
50×500 0.14×0.11 47 12 0.364
50×600 0.125×0.09 51 17.2 0.305
65×600 0.14×0.09 36 12 0.32
70×600 0.14×0.09 31 10.1 0.32
78×680 0.112×0.08 29 10.3 0.272
78×760 0.112×0.071 31 13.5 0.254
80×680 0.112×0.08 28 9.8 0.272
80×700 0.11×0.08 - - -
90×760 0.10×0.071 24 9.6 0.242
90×780 0.11×0.07 - - -
90×850 0.10×0.063 26 12.7 0.226
100×760 0.10×0.071 20 7.4 0.242
100×850 0.10×0.063 22 10 0.226
130×1100 0.071×0.05 17 9.4 0.171
130×1200 0.071×0.045 18 12 0.161
130×1500 0.063×0.036 21 18.6 0.135
150×1400 0.063×0.04 15 11.4 0.143
160×1500 0.063×0.036 15 12.4 0.135
165×800 0.07×0.05 - - -
165×1400 0.063×0.04 13 8.8 -
165×1500 0.063×0.036 14 11.4 0.135
174×1400 0.063×0.04 11 7.4 0.143
174×1700 0.063×0.032 13 12.9 0.127
203×1500 0.056×0.036 9 6 -
203×1600 0.05×0.032 10 9.3 0.114
216×1800 0.045×0.03 - 9 0.105
250×1600 0.05×0.032 - 4 -
250×1900 0.04×0.028 8 8 -
285×2100 0.036×0.025 7 7.2 -
300×2100 0.036×0.025 6 6 -
317×2100 0.036×0.025 5 5 -
325×2300 0.036×0.024 4 4 -
Note: Absolute filter values above should be taken as just rough estimations.
