Specifications
Brand Name :
BOZHONG
Model Number :
F304/ 304L
Certification :
ISO / TUV / DNV
MOQ :
negotiable
Price :
negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10000TON/MONTH
Delivery Time :
3--10days
Packaging Details :
seaworthy packing or as required
Place of Origin :
CHINA
Description :
Stainless Steel Flange F304/ 304L Forged RF Welded Neck
GRADE :
F304/ 304L
SHAPE :
round or as required
SURFACE :
Raised face (RF)
Type :
Welding Flange
Connection :
Welding
Description

F304/ 304L Stainless Steel Forged Flanges RF Type Flange High Temperature Resistant

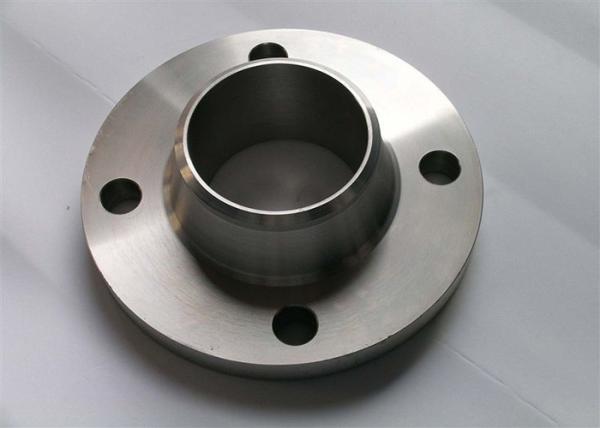

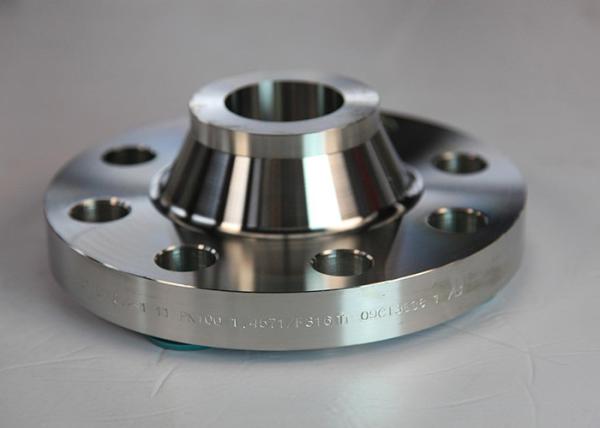

Weld Neck Flanges have a long tapered hub and are often used for high pressure applications. When ordering a weld neck flange, it is important to specify the schedule pipe is being used for. This is because the inside diameter of the flange will match the inside diameter of your pipe. The buttweld joint this flange with the pipe along with the tapered hub, makes this flange very resistant to dishing and a very sturdy connection. These flanges are ideal for extreme fluctuations of temperature and in environments where there may be a lot of bending and handling of the flanges.

Specification:

1. Stainless Steel: ASTM A 182, A 240

2. Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750

3. Size: ANSI B 16.5 from 1/2″ to 24″ and classes150 to 2500 (complete range)

4. Pressure: ANSI class 150 to 2,500

5. Surface:Raised face (RF)

The scope of European system for stainless steel flanges

Sealing surface type Nominal pressure PN / MPa (bar)
0.25 0.6 1 1.6 2.5 4 6.3 5 16 25
-2.5 -6 -10 -16 -25 -40 -63 -100 -160 -250
Raised face (RF) DN10-300 DN10-2000 DN10-1000 DN10-600 DN10-400 DN10-300 DN10-250
Convex surface (MFM) - DN10-600 DN10-400 DN10-300 -
Tongue and groove (TG) - DN10-600 DN10-400 DN10-300 -
Plane (FF) DN10-3000 DN10-2000 -
Ring joint face (RJ) - DN15-400 DN15-300 DN15-250
The scope of American system for stainless steel flanges
Sealing surface type Nominal pressure PN / MPa (Class)
2 5 11 15 26 42
(150LB) (300LB) (600LB) (900LB) (1500LB) (2500LB)
Raised face (RF) DN15-600 DN15-300
(1/2 “to 24″) (1/2 “-12″)
Convex surface (MFM) - DN15-600 DN15-65 DN15-300
(1/2 “to 24″) (1/2 “-2.1 / 2″) (1/2 “-12″)
Tongue and groove (TG) - DN15-600 DN15-65 DN15-300
(1/2 “to 24″) (1/2 “-2.1 / 2″) (1/2 “-12″)
Plane (FF) DN15-600 -
(1/2 “to 24″)
Ring joint face (RJ) DN25-600 DN15-600 DN15-300
(1/2 “to 24″) (1/2 “to 24″) (1/2 “-12″)

Application:

These are mainly used on heat coupling of pipes when there is possibility of expansion of the section while bending stress on the coupling.

Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

Package:

The stainless steel flange products are packed according to the international standards and regulations as well as to customer’s requests. We would take great care to avoid any damage during storage or transportation of the stainless steel flanges.
