ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16
ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16
ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16
ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16
ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16
ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16
Specifications
Brand Name :
Bozhong
Model Number :
SA516 Gr. 70
Certification :
IOS
Place of Origin :
China
MOQ :
500KG
Price :
USD800-900/MT FOB SHANGHAI
Payment Terms :
L/C, T/T
Supply Ability :
1000TONS PER MONTH
Delivery Time :
7-25DAYS ACCORDING TO YOUR ORDER QUANTITY
Packaging Details :
Standard Seaworthy Package
Material :
Steel
Product :
Steel Plate
Thinckness :
1-500mm
Length :
2-12m
Delivery Condition :
Hot Rolled,AR, TMCP, PWHT, N, Q+T, Z Direction Test(Z15,Z25,Z35)
Grade :
SA516 Gr. 70
Standard :
ASME
Description
ASME SA16 GR. 70 Pressure Vessel Material SA16 GR. 70 Hot Rolled Steel Plate Price Per Ton
SA516 grade 70 hot rolled steel plate Specification According to client's need
SA516 grade 70 hot rolled steel plate Density 7.85 g/cm ³
Additional Condition AR, TMCP, PWHT, N, Q+T, Z Direction Test(Z15,Z25,Z35), Charpy V-Notch Impact Test, UT, The Third Party Test (such as SGS Test)

SA516 grade 70 hot rolled steel plate Chemical Composition:

Chemical elements Percentage % Chemical elements Percentage %
C 0.10/ 0.22 Cu 0.30
Si 0.6 Ni 0.30
Mn 1/ 1.7 Mo 0.08
P 0.03 Nb 0.01
S 0.03 Ti 0.03
Al 0.02 V 0.02
Cr 0.3

SA516 grade 70 hot rolled steel plate Mechanical Property:

SA516 grade 70 Value
Tensile Strength, MPa (ksi) 485 - 620 (70 - 90)
Yield Strength, min MPa (ksi) 260 (38)
Elongation min, % 200 mm (8 in) 17
Elongation min, % 50 mm (2 in) 21

SA516 grade 70 hot rolled steel plate features:

SA516 grade 70 hot rolled steel plate is an excellent choice for service in lower than ambient temperature applications. SA516 grade 70 hot rolled steel plate has excellent notch toughness and is used in both pressure vessels and industrial boilers. Generally As Rolled is ok for rolling SA516 grade 70 hot rolled steel plate. However, in order to improve SA516 grade 70 hot rolled steel plate property and toughness, it is suggested to do normalizing for SA516 grade 70 hot rolled steel plates especially for the plates above 40mm thick. NACE MR-0175 SA516 grade 70 hot rolled steel plate is also offered by BBN steel with HIC test and SSC test.

SA516 grade 70 hot rolled steel plate application:

SA516 grade 70 hot rolled steel plate is mainly used in the fabrication of pressure vessel containers, and it belongs to boiler and pressure vessel steel, suitable for moderate or low temperature service conditions.

SA516 grade 70 hot rolled steel plate technical requirements & additional services:
1) High tension test
2) Low temperature impact test
3) Normalized for SA516 grade 70 hot rolled steel plate over 40mm thick
4) Simulated post-welded heat treatment (PWHT)
5) Rolling under standard NACE MR-0175 (HIC+SSC)
6) Issued orginal Mill Test Certificate under EN10204 3.1 or EN10204 3.2
7)Sand blasting and Painting, cutting and welding as per your demands

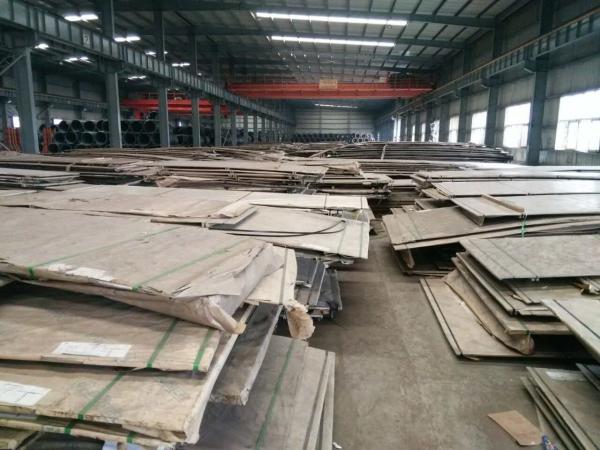

SA516 grade 70 hot rolled steel plate pictures:

ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16

ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16

ASME SA516 Grade 70 16Mo3 SS Steel Plate Pressure Vessel Material SA16
