Woven Customized Sintered Metal Mesh Filter 304/316 Stainless Steel
Woven Customized Sintered Metal Mesh Filter 304/316 Stainless Steel
Woven Customized Sintered Metal Mesh Filter 304/316 Stainless Steel
Woven Customized Sintered Metal Mesh Filter 304/316 Stainless Steel
Specifications
Brand Name :
FUHANG
Model Number :
304/316 Stainless Steel Sintered Metal Mesh Filter
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 square meter
Price :
USD $0.5-$5 Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
10000 Square Meter Per Month
Delivery Time :
5-8 days
Packaging Details :
paper tube inside+ wodden box +plastic bag
Product name :
304/316 Stainless Steel Sintered Metal Mesh Filter
Application :
Filters
Weave style :
Plain/Twill Weave
Type :
Weave Wire Mesh
Technique :
Woven
Material :
Stainless Steel Wire
Wire diameter :
0.02-2mm
Width :
0.5m-3m or customized
Usage :
oil,space flight,filter,chmical industry
Length :
30m/roll 50m/roll or as required
Feature :
Acid-resisting,corrosion resistent etc.,Anti-corrosion,alkali-resisting etc
Color :
steel
Hole shape :
Square Hole
Mesh :
1-635mesh
Advantage :
Superior wire,standard mesh,factory direct sale,competitive price
Mesh count :
1-400mesh
Sample :
free
Packing :
paper tube inside+ wodden box +plastic bag +
Description

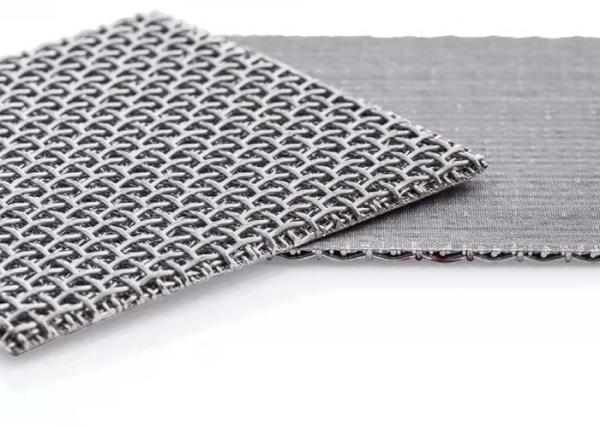

Customized 304/316 Stainless Steel Sintered Metal Mesh Filter

Sintered metal mesh filter is a wire filtering cloth made by pressing multilayers stainless steel woven wire cloth, then sintered together in a vacuum furnace. This kind of filtering cloth is much better than common metal woven wire mesh with good strength, hardness and good positioning of opening. Its comprehensive property is superior to sintered metal powder and porcelain.

Woven Customized Sintered Metal Mesh Filter 304/316 Stainless Steel

Advantages:

High strength: five layers of silk mesh sintering, with very high mechanical strength and pressure-resistant strength.

High accuracy: In fact the filtration granularity of 2 to 200um can play a uniform surface filtration performance.

Heat resistance: In general, can be used for continuous filtration from -200 degrees to 650 degrees.

Easy cleaning: cleaning is very simple due to the surface filtration results with excellent counter-current cleaning effect.

Excellent corrosion resistance

High temperature resistance, thermal shock resistance

Woven Customized Sintered Metal Mesh Filter 304/316 Stainless Steel

Specification

Material: SS304, SS316, Inconel, Hastelloy, and Monel

Filtration rate: 1-100 micron

Types: 5 layers.

Common Construction: Protection / Filter / Drainage / Support Structure / Support Structure

Type classification: Sintered dutch woven wire mesh and sintered square woven wire mesh.

Woven Customized Sintered Metal Mesh Filter 304/316 Stainless Steel

Standard size:

480 mm × 480 mm, 480 mm × 980 mm, 500 mm × 1000 mm,

600 mm × 1200 mm, 610 mm × 1219 mm, 610 mm × 1250 mm,

1000 mm × 1000 mm, 1200 mm × 1200 mm,

other sizes can be designed as per customers’ demand.

Maximum size: 1219 mm × 1219 mm.

Woven Customized Sintered Metal Mesh Filter 304/316 Stainless SteelWoven Customized Sintered Metal Mesh Filter 304/316 Stainless Steel
