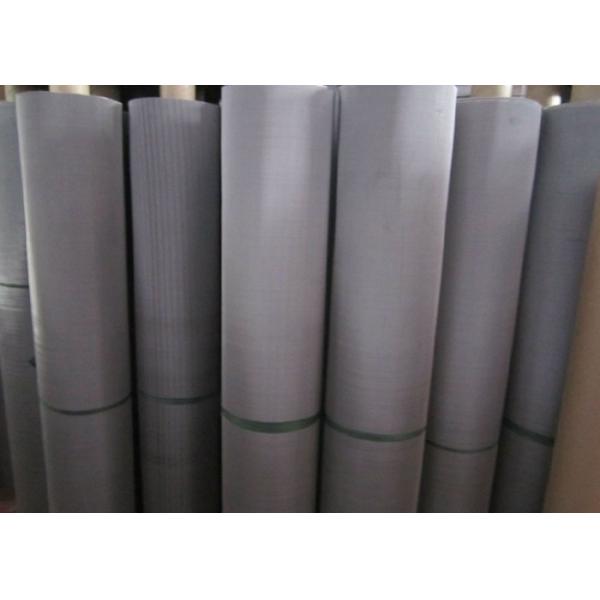

Dutch Weave 316 Stainless Steel Wire Cloth Mesh 40x200 Mesh 55 Micron
Dutch Weave 316 Stainless Steel Wire Cloth Mesh 40x200 Mesh 55 Micron
Specifications
Brand Name :
FUHANG
Model Number :
40x200 Mesh
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Square Meter
Price :
1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
50000 square meter /15 Days
Delivery Time :
5-8 work days
Product name :
40x200 Mesh Dutch Weave Micronic Filter Cloth
Application :
Woven Wire Mesh
Weave style :
Dutch/Plain/Twill Weave
Type :
Weave Wire Mesh
Technique :
Woven
Material :
Stainless Steel Wire,304,316
Width :
Usually1M
Usage :
filter
Length :
1-30m
Feature :
Acid-resisting,Anti-corrosion,alkali-resisting etc
Color :
Silver
Advantage :
factory direct sale
Sample :
free
Packing :
paper tube inside+ wodden box +plastic bag +
Description

T304/T316 40x200 Mesh Dutch Weave 55 Micron Filter Cloth

Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.

Dutch Weave 316 Stainless Steel Wire Cloth Mesh 40x200 Mesh 55 Micron

Dutch weave is divided into plain Dutch weave and twill Dutch weave. 40x200 Mesh uses plain Dutch weave.

U.S. Metric
MESH SIZE 40x200 per in 40x200 per 2.54 cm
WIRE DIAMETER 0.0070x0.0055 in 0.1778x0.1397 mm
OPENING 0.0022 in 0.05588 mm
OPENING MICRONS 55 55
POROSITY 63 63
OVERALL THICKNESS 0.0180 in 0.4572 mm
WEIGHT/SQUARE FOOT 0.2800 lb 0.1271 kg

Features

55 micron precision woven stainless steel screen

Used in separation, fuel filters, gas diffusers and vents

Light tight mesh

Flow Data is available

Meets ASTM E2814-18

Stainless Steel 304/316

Applications of dutch weave woven wire mesh
1. Dutch weave woven wire mesh is mainly used for filtering. It provides superior filtration capabilities for a wide range of areas applications.
Aerospace.
Petrochemical.
Pharmaceutical.
Mining.
Waste water.


2. According to the material of filtering, the plain dutch and twill dutch can be used in different applications.
The plain dutch weave woven wire mesh is mainly used for filtering and separating liquid and slurry products.
The twill dutch weave woven wire mesh is used for filtering heavy materials.
