50x250 Mesh 40 Micron Stainless Steel Mesh For Filter Free Sample
50x250 Mesh 40 Micron Stainless Steel Mesh For Filter Free Sample
Specifications
Brand Name :
FUHANG
Model Number :
50x250 Mesh
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Square Meter
Price :
1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
50000 square meter /15 Days
Delivery Time :
5-8 work days
Product name :
50x250 Mesh Dutch Weave Micronic Filter Cloth
Application :
Woven Wire Mesh
Weave style :
Dutch/Plain/Twill Weave
Technique :
Woven
Material :
Stainless Steel Wire,304,316
Width :
Usually1M
Usage :
filter
Length :
1-30m
Type :
Weave Wire Mesh
Feature :
Acid-resisting,Anti-corrosion,alkali-resisting etc
Color :
Silver
Advantage :
factory direct sale
Sample :
Free
Packing :
paper tube inside+ wodden box +plastic bag +
Description

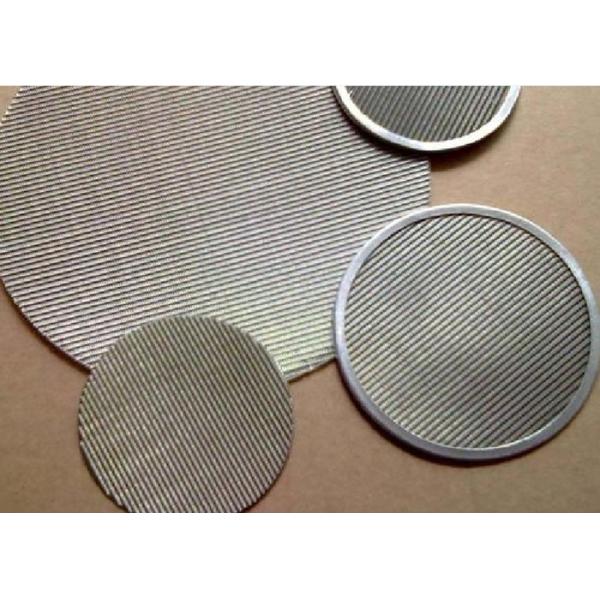

T304/T316 50x250 Mesh Dutch Weave 40 Micron Filter Cloth

Dutch Weave Wire Mesh is also known as stainless steel dutch woven wire cloth and stainless steel filter cloth. It is usually made of mild steel wire and stainless steel wire.Stainless steel dutch wire mesh is extensively utilized as filter fittings for chemical industry, medicine, petroleum, scientific research units ,due to its stable and fine filtration capability.


The apparent difference of reverse dutch weaving compared with standard dutch weave lies in the thicker warp wires and less weft wires. Reverse dutch woven stainless steel wire cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields.Through constant technological innovation and improvement, we can produce stainless steel wire mesh of various specification in reverse Dutch weaving patterns.

Mesh with a Dutch weave is woven to a precise tolerance for a much denser finished material with small, curved tunnel-shaped openings. Light does not pass through Dutch-woven micronic filter mesh. Thick and sturdy Dutch weaves are typically used for hydraulic fluid filters, gas diffusers, vacuum filters, pressure liquid filters, and breather vents.

Dutch weave is divided into plain Dutch weave and twill Dutch weave. 50x250 Mesh uses plain Dutch weave.

U.S. Metric
MESH SIZE 50x250 per in 50x250 per 2.54 cm
WIRE DIAMETER 0.0055x0.0045 in 0.1397x0.1143 mm
OPENING 0.0016 in 0.04064 mm
OPENING MICRONS 40 40
POROSITY 65 65
OVERALL THICKNESS 0.0145 in 0.3683 mm
WEIGHT/SQUARE FOOT 0.2200 lb 0.0999 kg

Features

40 micron precision woven stainless steel screen

Used in separation, fuel filters, gas diffusers and vents

Light tight mesh

Flow Data is available

Meets ASTM E2814-18

Stainless Steel 304/316

50x250 Mesh 40 Micron Stainless Steel Mesh For Filter Free Sample
