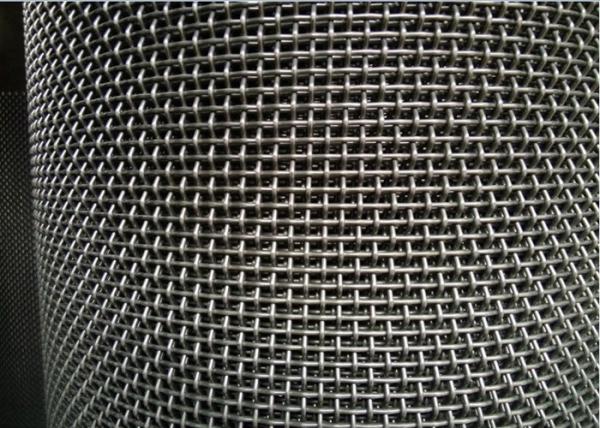

0.5m-3m SS Woven Wire Mesh 10X10 Mesh 0.025 Inch Good Toughness
0.5m-3m SS Woven Wire Mesh 10X10 Mesh 0.025 Inch Good Toughness
Specifications
Brand Name :
FUHANG
Model Number :
10X10mesh
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Square Meter
Price :
1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
50000 square meter /15 Days
Delivery Time :
5-8 work days
Packaging Details :
paper tube inside+ wodden box +plastic bag
Name :
304 316 10Mesh Plain Woven Stainless Steel Wire Mesh
Application :
Woven Wire Mesh
Weave style :
Plain Weave
Technique :
Woven
Material :
Stainless Steel Wire
Wire diameter :
Requirement
Width :
0.5m-3m or customized
Type :
Weave Wire Mesh,Wire Cloth
Product name :
T-304 1M X 100F Square Hole 10X10 Mesh Stainless Steel Wire Mesh
Feature :
Acid-resisting,Anti-corrosion,alkali resist,alkali-resisting etc
Color :
Silver
Hole shape :
Square Hole
Sample :
free,Avaliable
Description

T-304 1M X 100F Square Hole 10X10 Mesh Stainless Steel Wire Mesh For Sieving

The wire diameters suitable for the production of 10X10mesh stainless steel wire woven mesh are 0.047In., 0.041In.,0.035In., 0.032In. ,0.028In., 0.025In., 0.023In., 0.020In., The following are detailed data about this product:

Mesh

Construction

Type

 Wire Diameter

Width of

Opening

% of

Open Area

 Weight

10X10

Plain weave

 0.047 Inch 0.053 Inch 28.09% 1.601 lb/ft²
0.041 Inch 0.059 Inch 34.81% 1.192 lb/ft²
0.035 Inch 0.065 Inch 42.25% 0.851 lb/ft²
0.032 Inch 0.068 Inch 46.24% 0.705 lb/ft²
0.028 Inch 0.072 Inch 51.84% 0.534 lb/ft²
0.025 Inch 0.075 Inch 56.25% 0.423 lb/ft²
0.023 Inch 0.077 Inch 59.29% 0.356 lb/ft²
0.020 Inch 0.080 Inch 64.00% 0.268 lb/ft²

T304 Stainless Steel-Standard Chemical Composition
Maximum Carbon (C) Maximum Manganese (Mn) Maximum Phosphorus (P) Maximum Sulphur (S) Maximum Silicon (Si) Chromium (Cr) Nickel (N)

Maximum Nitrogen

(N)

0.08 %

2.0 %

0.045 %

0.03 %

1.00 %

18.00 to

20.00 %

8.00 to

10.50 %

0.10 %

304 stainless steel is a common material in stainless steel, with a density of 7.93 g/cm³, which is also called 18/8 stainless steel in the industry. High temperature resistance of 800℃, good processing performance and high toughness.

For 304 stainless steel, the Ni element in its composition is very important, which directly determines the corrosion resistance and value of 304 stainless steel.

Features:

1. High temperature resistance, oxidation resistance, acid and alkali resistance

2. Precise filtration, uniform mesh, good toughness

3. Smooth surface, no need for surface treatment, easy maintenance;

4. High strength, good tensile strength

0.5m-3m SS Woven Wire Mesh 10X10 Mesh 0.025 Inch Good Toughness0.5m-3m SS Woven Wire Mesh 10X10 Mesh 0.025 Inch Good Toughness

Some of the more popular applications and industries that use T-304 10X10mesh stainless steel wire mesh are listed below:

1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.

2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.

3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
