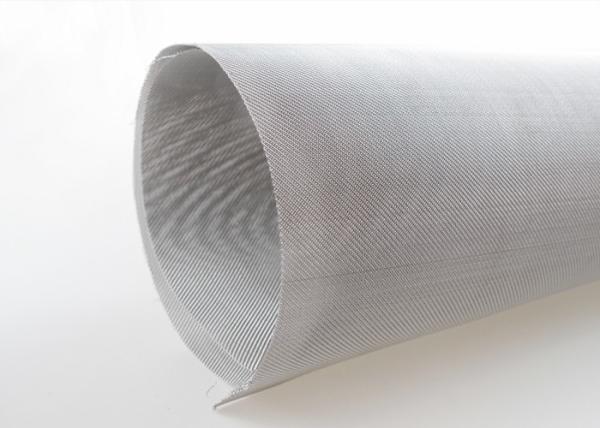

T-304 /316 1M X 100F Square Hole 50X50 Mesh Stainless Steel Wire Mesh For Sieving

Our company manufactures and supplies metal mesh products to meet and exceed our client’s specific requirements, reducing costs while increasing production efficiency. We have a full range of 304 and 316 stainless steel woven mesh products available for immediate shipping and we can supply our clients with extra wide wire cloth products of up to 240″ wide and extra-long rolls of up to 2000″. Hightop’s wire mesh products comply with the ASTM E2016, ASTM E2814 and ISO 9044 as our minimum standard.

Stainless steel wire mesh production process: the radial and weft wire diameters are the same, each diameter wire crosses every two (or more) weft wires up and down, and each weft wire crosses every two (or more) weft wires. ) Diameter wire is crossed up and down. Stainless steel wire mesh is also called stainless steel filter mesh, stainless steel screen mesh, stainless steel woven mesh, stainless steel wide mesh and so on.

There are usually two ways of weaving 50 mesh stainless steel wire mesh: plain weave and twill weave. The wire diameters suitable for the production of plain weave 50X50mesh stainless steel wire mesh are 0.23mm , 0.2mm, 0.17mm, 0.15mm. The wire diameters suitable for the production of twill weave 50X50mesh stainless steel wire mesh are 0.25mm , 0.27mm, 0.30mm. The following are detailed data about this product:

The widths we often produce are 1 meter, 1.2 meters, 1.5meters, 1.8 meters, and 2 meters. The length of each roll is usually 30 meters. We can customize special sizes according to your requirements.

We usually use 304 stainless steel wire and 316 stainless steel wire to produce 50X50mesh stainless steel wire mesh. The following is a brief introduction to 304 stainless steel and 316 materials.

Features:

1. Good acid resistance, alkali resistance and corrosion resistance;

2. High strength, strong tensile force, toughness and abrasion resistance, durable;

3. Resistant to high temperature oxidation, the nominal temperature of 304 stainless steel

4. screen is 800 degrees Celsius

5. Processing at room temperature, easy to make various shapes;

6. High smoothness, no need for surface treatment, convenient and simple maintenance.

characteristic:

1. Due to the addition of Mo, 316 stainless steel has excellent corrosion resistance, atmospheric corrosion resistance and high temperature strength, and can be used under harsh conditions; excellent work hardening (non-magnetic); excellent high-temperature strength; non-magnetic in solid solution state ; The cold-rolled product has good gloss and beautiful appearance.

2. Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions.

The main difference between 316 and 304 in chemical composition is that 316 contains Mo, and it is generally recognized that 316 has better corrosion resistance and is more resistant to corrosion in high temperature environments than 304. Therefore, in high-temperature environments, engineers generally choose 316 stainless steel wire mesh.

Some of the more popular applications and industries that use T-304/316 50X50mesh stainless steel wire mesh are listed below:

1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.

2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.

3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.
