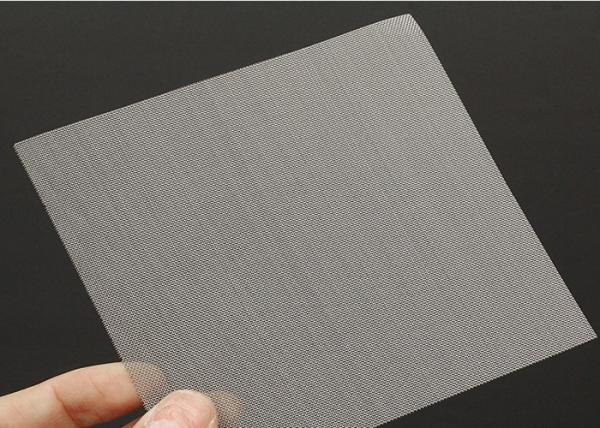

1M Width Square Hole 100X100 Mesh Stainless Steel Wire Mesh For Sieving and Filtering

Stainless steel wire mesh, also known as wire cloth or wire fabric, is renowned for its remarkable versatility. The distinguishing characteristic of wire mesh is the matrix of wires that are arranged at 90-degree angles.

Stainless steel wire mesh with its excellent resistance against acid, alkali, heat and corrosion, find extensively uses in processing of oil, chemical, food, making wire mesh filter, also sorting and screening of solid, liquid and gas in mine, metallurgy, airspace and machine making etc.

"Mesh" is the unit of specification for stainless steel wire mesh, which refers to how many holes there are in a length of 1 inch (25.4 mm). 100 mesh stainless steel wire mesh is 100 meshes in one inch length. 100 mesh stainless steel wire mesh is also called 100 mesh filter cloth, 100 mesh filter screen, 100 mesh screen and so on.

There are usually two ways of weaving 100 mesh stainless steel wire mesh: plain weave and twill weave. The wire diameters suitable for the production of plain weave 100X100mesh stainless steel wire mesh are 0.12mm,0.10mm. The wire diameters suitable for the production of twill weave 100X100mesh stainless steel wire mesh are 0.15mm. The following are detailed data about this product:

The widths we often produce are3F, 1 meter, 1.2 meters, 1.5meters, 1.8 meters, and 2 meters, 2.2meters, 2.5meters, 3meters. The length of each roll is usually 30 meters and 100F. We can customize special sizes according to your requirements.

Features:

1. Good acid resistance, alkali resistance and corrosion resistance;

2. High strength, strong tensile force, toughness and abrasion resistance, durable;

3. Resistant to high temperature oxidation, the nominal temperature of 304 stainless steel

4. Processing at room temperature, easy to make various shapes;

5. High smoothness, no need for surface treatment, convenient and simple maintenance.

We can produce stainless steel wire mesh with stainless steel wire material in SUS/AISI 201, 202, 304,304L,310, 310S, 316, 316L ,MONEL ,321 ,430 etc.The relatively more used materials are 304 and 316. The following mainly introduces the element content and characteristics of the two materials 304 and 316.

The main difference between 316 and 304 in chemical composition is that 316 contains Mo, and it is generally recognized that 316 has better corrosion resistance and is more resistant to corrosion in high temperature environments than 304. Therefore, in high-temperature environments, engineers generally choose 316 stainless steel wire mesh.

Due to the different chemical composition content of stainless steel of different materials, the degree of heat resistance of stainless steel wire mesh is also different. The temperature that the stainless steel mesh withstands is also different from the actual temperature.

Material heat-resistant temperature (degrees Celsius)

SUS304 750

SUS321 850

SUS316 850

SUS310 1150 (stable at high temperature)

SUS314 1250 (strong high temperature resistance and oxidation resistance)

Actual use of heat-resistant temperature

SUS304 550 (temperature resistance conflicts with corrosion resistance)

SUS321 625 (temperature resistance conflicts with corrosion resistance)

SUS316 625 (temperature resistance conflicts with corrosion resistance)

SUS310 900 (stable at high temperature)

SUS314 1100 (strong high temperature resistance and oxidation resistance)

Some of the more popular applications and industries that use 100X100mesh stainless steel wire mesh are listed below:

1. Used for sieving and filtering under acid and alkali environmental conditions, as a sieving net in the petroleum industry, and as a sieving net in the chemical and chemical fiber industry.

2. Used in mining, petroleum, chemical, food, medicine, machinery manufacturing and other industries.

3. Used for screening and filtering under acid and alkali environmental conditions, as a mud mesh in the petroleum industry, as a screen in the chemical and chemical fiber industry, and as a pickling mesh in the electroplating industry.

We can cut stainless steel wire mesh into different shapes and sizes according to your needs, such as rectangular mesh, square mesh, round and oval mesh. It can also be processed into other shapes of filters.

Stainless steel wire mesh packaging: Generally, it is packaged in kraft paper, wrapped with waterproof plastic sheet, and then packed into a fumigation-free wooden box.
