316L Stainless Steel Demister Pad / Rope Mesh For Gas Liquid Separation
316L Stainless Steel Demister Pad / Rope Mesh For Gas Liquid Separation
316L Stainless Steel Demister Pad / Rope Mesh For Gas Liquid Separation
316L Stainless Steel Demister Pad / Rope Mesh For Gas Liquid Separation
Specifications
Brand Name :
FUHANG
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Square Meter
Price :
1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
50000 square meter /15 Days
Delivery Time :
5-8 work days
Packaging Details :
paper tube inside+ wodden box +plastic bag
Material :
Stainless Steel Wire
Application :
Filters
Type :
Knitted Wire Mesh
Feature :
Corrosion Resistance,high temperature resistance
Width :
customized
Product name :
Stainless Steel Knitted Mesh
Usage :
Air & amp ; Liquid Filtration
Color :
can be customized
Sample :
Avaliable , free
Business type :
manufacture & trading,manufacture and trading company
Description

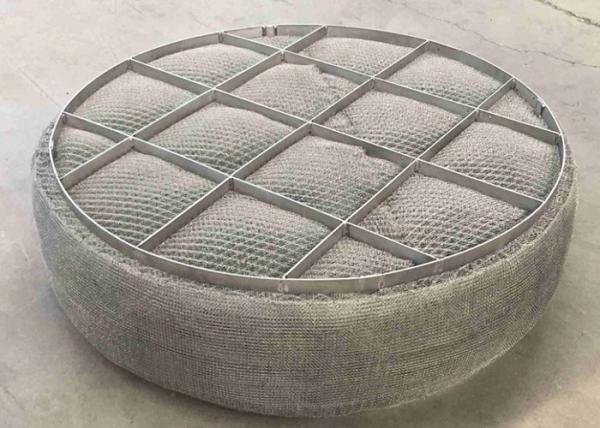

Stainless Steel Demister Pad Stainless Steel Rope Mesh For Gas-Liquid Separation
The stainless steel demister pad not only has excellent chemical stability, it also has high separating efficiency and temperature resistance performance. Stainless steel demister pad is the most widely used type among all the metal demister pad. Stainless steel demister pad for separation of entrained droplets of gas tower to ensure that there is mass transfer efficiency and reduce the value of material losses and the operation of the compressor to improve the tower, most people set the wire in the top of the tower mesh demister. Can effectively remove the 3 - 5um the droplet, if the settings between trays demister, not only to ensure the efficiency of mass transfer tray, also can reduce the board space.
316L Stainless Steel Demister Pad / Rope Mesh For Gas Liquid Separation
Demister Pad:
Material: 304,304L,316,316L
Diameter:300mm--6400mm
316L Stainless Steel Demister Pad / Rope Mesh For Gas Liquid Separation
Popular specs of stainless steel demister pad
• Demister pad size: 442 mm diameter × 150 mm thickness.
• Demister pad size: 2290 mm diameter × 100 mm thickness.
• Demister pad size: 11-1/4" width × 1" thickness × 118" length.
• Demister pad size: 11-7/8" width × 1" thickness × 142" length.
• Demister pad size: 14-5/6" width × 1" thickness × 142" length.

Models in domestic and other companies
Density
(kg/m3)		 Free volume
(%)		 Surface area
(m2/m3)		 Domestic model Other companies model
Metex York Becoil Knitmesh Vico-tex Uop Koch Acs
80 99.0 158 H Hi-Thruput 931 954 4536 160 B 511 7CA
120 98.5 210 L 422
144 98.2 280 N Nu-Standard 431 9030 280 A 911 4CA
128 98.4 460 SN 326 415 706
193 97.5 375 SL Xtra-Dense 421 890 9033 380 C 1211 4BA
300 96.2 575 SM
390 95.0 750 SH
220 97.2 905 T
432 94.5 1780 R Multi-Strand 333 800
220 97.2 428 W Wound
160 96.7 5000 GS 371

Stainless steel demister pad is mainly used for gas-liquid separation. Widely used in chemical, petroleum, tower manufacturing, pressure vessels and other industries in the gas-liquid separation device. Also for the air filter for gas separation. In addition, demister screen can be used as instruments of industrial instrumentation in the various buffers to prevent electrical interference shielding of electronic devices.
Demister pads standard: HG / T 21618 - 1998
316L Stainless Steel Demister Pad / Rope Mesh For Gas Liquid Separation
Features of stainless steel demister pad
• High corrosion and rust resistance.
• Acid, alkali and salty resistance.
• High mechanical strength.
• High filtering efficiency.
• Durable and long service life.
• Various types for choice.
• Convenient for installing and transporting.
