Stainless Steel Knitted Wire Mesh Stainless Steel Knitted Mesh Knitted Stainless Steel Wire Mesh

Stainless steel knitted wire mesh, knitted wire mesh tube, shielding knitted wire mesh, 304 stainless steel knitted mesh tape

Stainless steel knitted mesh is manufactured by a circular knitting machine, use stainlesss steel wire as raw material, knitting monofilament or multifilament wire into a tubular form. Then the wire mesh be flattened to mesh rolls, and can be also supplied in corrugated (crimped) form. This production process produces an extremely strong and flexible sleeve composed of a series of interlocking rings. It can be made of monofilament or multifilament.

Monofilament knitted mesh is the most commonly used type and can be used for general applications, while multifilament woven mesh has higher strength and bearing capacity and can be used for heavy applications. Stainless steel knitted wire mesh are most commonly used in the filtration & separation industries and EMI & RFI shielding industries.

We can offer stainless steel knitted wire mesh in the standard specifications, opening sizes range from 1 mm x 1 mm to 10 mm x 10 mm, while wire diameters range from 0.10 mm to 0.45 mm. Depending on the specification, and the manufactured width is between 3 mm and 600 mm. The standard materials are Grade 304 and Grade 316 stainless steel.

Features

High strength and overall rigidity

Excellent filtration accuracy

Excellent corrosion resistance, alkali and acid resistance, heat resistance

Excellent shielding performance.

Long-lasting

Stainless steel knitted wire mesh materials

Stainless steel knitted wire mesh is available in three series of different wire materials:

200 series: Grade 201 (1.4372), Grade 202 (1.4373)

300 series: Grade 304 (1.4301), Grade 316 (1.4401), Grade 321 (1.4541)

400 series: Grade 410 (1.4006), Grade 420 (1.4021 ), Grade 430 (1.4016)

Others available, please ask

Application

Usage of stainless steel knitted wire mesh includes:

In the architectural & decorative industries, for the screen of garden.

Sealing, shock-absorbing, muffler and exhaust gas purification components of auto parts

It can be made into a defogging pad to eliminate mist.

In the EMI & RFI shielding industries, for elastomer cores and cable wrap.

In the filtration & separation industries, for the screen of the demister pads, coalescers (Reactor Internals) and range hood screen.

In the automobile industries, for airbags, anti vibration and mufflers & silencers.

Weave type

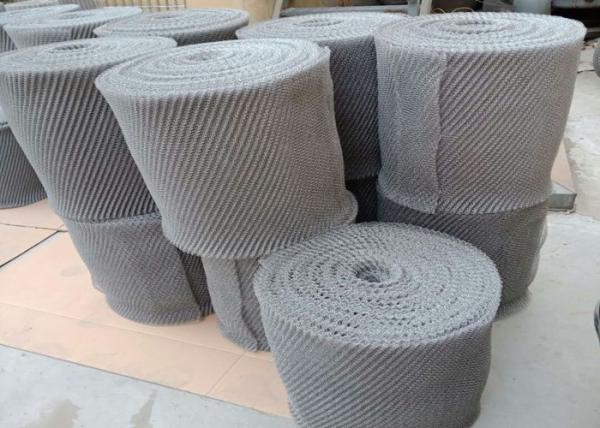

Stainless steel knitted wire mesh rolls

Roll width 3 mm, 15 mm, 25.4 mm, 50.8 mm to 600 mm (measured on flat)

Roll length 15 m, 30 m, 50 m to 200m

Other rolls size on request

When ordering or requesting a quote for stainless steel knitted wire mesh, please specify:

Number of length 30 m rolls or size required

Width eg. 100 mm

Diameter of wire eg. 0.23 mm

Aperture eg. 3 mm x 5 mm

Material eg. Grade 304
