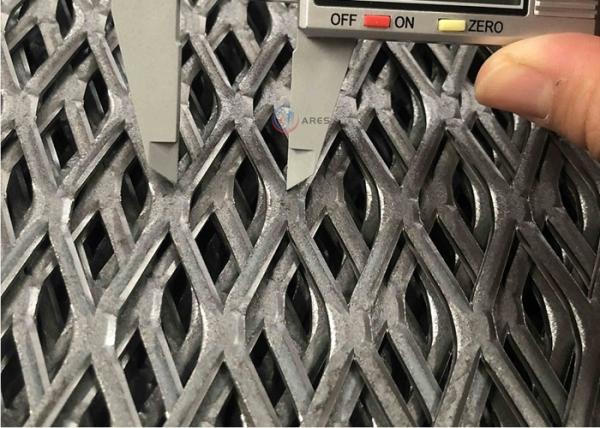

Steel Expanded Metal Sheet Flattened / 0.5-8mm Expanded Metal Diamond Mesh
Steel Expanded Metal Sheet Flattened / 0.5-8mm Expanded Metal Diamond Mesh
Steel Expanded Metal Sheet Flattened / 0.5-8mm Expanded Metal Diamond Mesh
Steel Expanded Metal Sheet Flattened / 0.5-8mm Expanded Metal Diamond Mesh
Specifications
Brand Name :
FUHANG
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Square Meter
Price :
1-30 Square Meter $2/Square Meter >30 Square Meters $1/Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
50000 square meter /15 Days
Delivery Time :
5-8 work days
Product name :
Standard(Raised) Carbon Steel Expanded Metal Sheet Mesh
Material :
Carbon Steel
Application :
Protecting Mesh,Screen,Fencing
Type :
Expanded Mesh
Weave style :
EXPANDED METAL
Wire diameter :
Requirement
Usage :
Construction
Hole shape :
Diamond Hole
Thickness :
0.5-8mm
Packing :
wooden box,On your request,pallet
Short way of mesh :
2mm-50mm
Advantage :
Rich experience,High quality with good prices,good worker
Description

Flattened Carbon Steel Expanded Metal Sheet Flattened Expanded Metal

Flattened expanded metal sheet is an extremely versatile product that is created by making multiple slits in a sheet of metal, then stretching the sheet to produce a unique diamond pattern. This variation of the standard expanded metal manufacturing process involves flattening the sheet by passing it through flattening rolls, a technique known as “cold rolling.” This produces thin, expanded metal sheets and stretches the pattern even further, while also providing a smoother, flatter finish.

Steel Expanded Metal Sheet Flattened / 0.5-8mm Expanded Metal Diamond Mesh

Features of flattened expanded metal sheet :

Smooth surface It supplies a safe and smooth surface, which will not hurt people.

Corrosion and rust resistance Various surface treatment and aluminum, stainless steel materials have outstanding chemical stability.

Lightweight The aluminum expanded metal sheet is lightweight and it can save materials and freight costs.

Easy to install and uninstall The installation of flattened expanded metal sheet is easy and no need any special tools.

Wide range of applications The flattened expanded metal sheets are widely seen in our daily life, such as shelves, wastebaskets, furniture, etc.

Examples of Flattened Expanded Metal Sheet Uses and Applications

Flattened expanded metal sheet has a wide range of industrial applications. It is frequently used to by architects in the design of ornamental accents such as wall partitions or garage screening. Flattened expanded metal fabrications can also be incorporated into the design of fencing and security partitions. Additionally, it has many household applications, such as for outdoor/patio furniture.

Steel Expanded Metal Sheet Flattened / 0.5-8mm Expanded Metal Diamond Mesh

The following is the product data table of flattened carbon steel expanded metal sheet :

Style

Lbs. Per
100 sq. ft.

Design
Sizes
(Inches)

Opening
Size
(Inches)

Approx. Strand
Size (Inches)

Overall
Thickness
(Inches)

Approx. No.
Diamonds
Per Ft.

Open
Area
%
SWD LWD SWO LWO Thickness Width SWD LWD
1/4" x #20F 82 .25 1.05 .110 .715 .030 .079 .030 48 11.6 35
1/4" x #18F 108 .25 1.05 .118 .715 .040 .080 .040 48 11.6 35
1/2" x #20F 40 .50 1.25 .375 1.00 .029 .079 .029 24 9.5 65
1/2" x #18F 66 .50 1.25 .312 1.00 .039 .097 .039 24 9.5 63
1/2" x #16F 82 .50 1.25 .312 1.00 .050 .096 .050 24 9.5 63
1/2" x #13F 140 .50 1.25 .265 1.00 .078 .107 .078 24 9.5 52
3/4" x #16F 54 .923 2.00 .813 1.75 .060 .101 .210 13 6 78
3/4" x #13F 80 .923 2.00 .750 1.688 .090 .096 .205 113 6 76
3/4" x #10F 120 .923 2.00 .750 1.625 .090 .144 .290 13 6 72
3/4" x #9F 180 .923 2.00 .688 1.562 .134 .150 .32 13 6 68
1" x #16F 41 1.00 2.50 .813 2.250 .050 .098 .050 12 4.68 78
1-1/2" x #16F 40 1.33 3.00 1.25 2.625 .060 .108 .230 9 4 85
1-1/2" x #13F 60 1.33 3.00 1.188 2.500 .090 .105 .242 9 4 85
1-1/2" x #10F 79 1.33 3.00 1.188 2.500 .090 .138 .284 9 4 80
1-1/2" x #9F 120 1.33 3.00 1.125 2.375 .134 .144 .312 9 4 76
1-1/2" x #6F 250 1.33 3.00 1.110 2.375 .94 .203 .433 9 4 69
