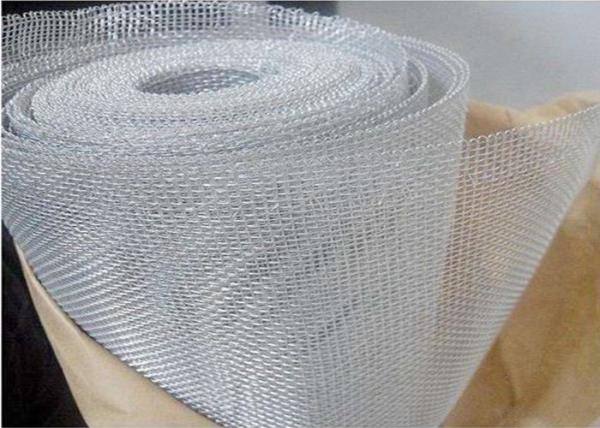

12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
Specifications
Brand Name :
FUHANG
Model Number :
12X12Mesh
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 Square Meter
Price :
1-30 Square Meter $3/Square Meter >30 Square Meters $2/Square Meter
Payment Terms :
L/C, T/T
Supply Ability :
1000 Rolles Per Month
Delivery Time :
5-8 work days
Packaging Details :
paper tube inside+ wodden box +plastic bag
Application :
Construction Wire Mesh,Fence Mesh,Filter,screen mesh,Retaining wall
Type :
Welded Mesh,Electric Wire Mesh,Wire Cloth,Crimped Wire Mesh,Weave Wire Mesh
Material :
Galvanized Iron Wire,Low-Carbon Iron Wire
Hole shape :
Square,Rectangle
Wire gauge :
0.3mm-0.9mm
Aperture :
1/2",10---30MESH,3/4",1/4" x 1/4" to 6"x6",3/8"-4"
Product name :
Large sale Galvanized Hexagonal Wire Mesh / Wire Netting / square chic,3/8 Inch Galvanized Welded Wire Mesh,1 inch Chicken wire mesh and galvanized hexagonal iron wire netting,1cm square mesh welded wire mesh,Galvanized square mesh gabion baskets 6mm wire
Usage :
Protection,building,chemical industry,mine,agriculture
Length :
30m
Feature :
Easily Assembled,Corrosion Resistance,Eco Friendly,beautiful,anti-corrosion
Width :
0.5m,1m 1.2m 1.5m
Surface treatment :
Hot Dipped Galvanized,electro galvanized,hot-dipped galvanized,Galvanized+PVC Coated,pvc coated
Packing :
Waterproof Paper,Pallet,In roll,outer with carton,with plastic bag or water proof paper inner
Color :
Silver,black,green,White,blue etc
Name :
Galvanized square woven double crimped wire mesh
Weave style :
Plain Weave,pre-crimped weave
Sample :
Avaliable,free sample
Wire diameter :
0.018mm-2.5mm
Mesh size :
1/2",5/8" 3/4" 1" 1-12",3/4"1"
Description
Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
Galvanized is not a metal or alloy; it is a process in which a protective zinc coating is applied to steel to prevent rusting. In the wire mesh industry, however, it is often treated as a separate category because of its wide spread use in all types of applications.
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
Some of the more popular uses and applications of galvanized wire mesh are listed below:
Fencing, caging & enclosures
Farm, garden & agricultural use
Window & safety guards
Archeological use
Building & construction projects
Infill panels
High security applications
Landscaping & gabions
Wall & stone retention
Greenhouse use
Particle separation
General industrial use
Galvanizing can occur either before or after wire mesh is manufactured – both in woven form or welded form. Galvanized before woven wire mesh or galvanized before welded wire mesh indicates the individual wires, themselves, used to manufacture the mesh have been galvanized before the mesh is woven or welded. Depending on the mesh (or opening size) and diameter wire, this is usually the less expensive option, especially if custom manufacturing is required.
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
Galvanized after woven and galvanized after welded wire mesh is exactly as it sounds. The material is manufactured, normally in carbon or plain steel, and is often placed in a galvanizing tank, thereby producing a galvanized after woven or welded specification. Generally speaking, this option is more expensive, depending on availability and other variables, but does offer a higher level of corrosion resistance. This added level of corrosion resistance is most noticeable at the joint or intersection of galvanized after welded wire mesh specification.
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
One of the main benefits of a galvanized wire mesh, and particularly of a galvanized welded specification, is that it tends to offer a wide variety of opening sizes and diameter wires. For instance, mesh opening sizes, such as 4” x 4”, 2” x 2”, 1” x 1” and ½” x ½”, tend to be readily available from stock in a handful of popularly requested diameter wires.
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
Due to its attractive price point and its corrosion resistance, galvanized wire mesh is very popular among industrial users of wire mesh. Usually, galvanized wire mesh is specified in applications where relatively large opening sizes are needed. Keep in mind that galvanizing a relatively fine mesh, after it is woven, is likely to clog the openings rendering it unusable in numerous applications. It is for this reason that, usually, a 10 x 10 mesh and finer will be manufactured as a galvanized before woven item.
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge
12X12Mesh Galvanized Steel Wire Mesh 0.3mm-0.9mm Wire Gauge

Procedures: Hot dip Gal. before/after Weaving, Electro Gal. before/after Weaving

Products Scope :

Hot-dip galvanized after weaving wire mesh

Hot-dip galvanized after weaving wire mesh

Electro galvanized before weaving wire mesh

Electro galvanized after weaving wire mesh

Crimped square wire mesh

Specification of Galvanzied Square Wire Mesh:
mesh wire diameter (mm) opening (mm) mesh wire diameter (mm) opening(mm)
3x3 1.60 6.87 20x20 0.27 1.00
4x4 1.20 5.15 22x22 0.25 0.90
5x5 0.95 4.13 24x24 0.23 0.83
6x6 0.80 3.43 26x26 0.20 0.78
8x8 0.60 2.57 28x28 0.18 0.73
10x10 0.50 2.04 30x30 0.15 0.70
12x12 0.50 1.61 35x35 0.14 0.59
14x14 0.40 1.41 40x40 0.14 0.50
16x16 0.35 1.24 50x50 0.12 0.39
18x18 0.30 1.11 60x60 0.12 0.30
