24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
Specifications
Place of Origin :
Guangdong, China
Brand Name :
SZSSTH/OEM
Model Number :
SZSSTH-MN1230, PWM
Packaging Details :
Packing: gift box
Quantity/carton: 50pcs in one carton
Supply Ability :
2500 Piece/Pieces per Week
Price :
CN¥124.27/pieces 1-99 pieces
Type :
PWM
Application :
Charger Controller, Voltage Controller, Solar System Controller, charger controller
Work Time (h) :
24h
Max PV Power :
1050w
Max PV Voltage :
100v
Rated Voltage :
12v 24v
Maximum Current :
30A
Warranty :
1 Years, 1 Year
Weight :
780g
Color :
Green
Product name :
solar charge controller module
Keywords :
solar charge controller 30a
Certificate :
CE ROHS
Port :
Yantian or Shekou
Description
Product Description
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
Specification
Wholesale solar charge controller 24V 12V 10 amp 20A 30A 40A 50A 60a pwm solar charge controller

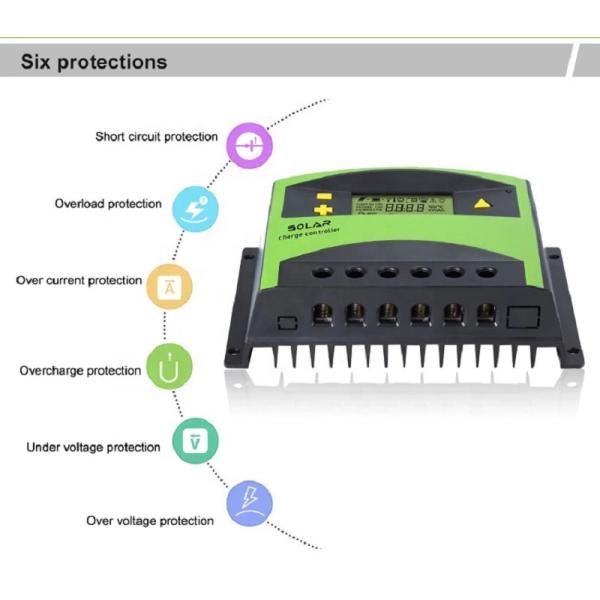

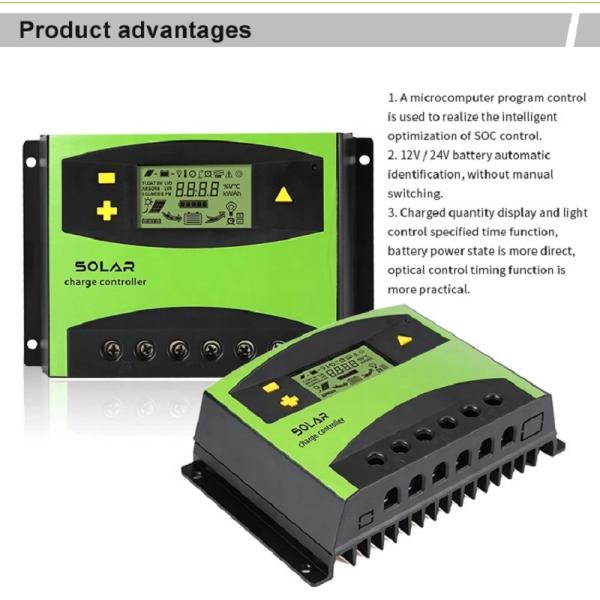

Product Features: 1. voltage automatic identification system. 12v/24v or 24v/48v automatic identification. 2.LCD dispaly and dual USB output. 3.Efficient smart PWM three charging. 4.Reliable protection: overvoltage, shor circuit, overload, overcharge, over discharge protection function.
Model
20A
30A
40A
50A
60A
System voltage
12V/24V, 24V /48V (Automatically switch)
The Maximum voltage of the solar panel input
50V (12/24V) ,100V (24V/48V)
Self loss
<13mA
Maximum charge current
20A
30A
40A
50A
60A
Maximum discharge current
20A
30A
40A
50A
60A
LVD
10.5V (9-11V), 21V (18V-22V), 42V (36V-44V)
LVR
12.6V(11-13.5V), 25.2V( 22-27V), 50.4V( 45-54V)
Battery overpressure protection
15V /30V /60V
Charging mode
PWM
Terminal scale
28-10 AWG
Waterproof level
IP32
Product size
187*90*47mm
195*107*50mm
187*122*57mm
Packing size
200*102*53mm
210*118*59mm
200*132*63mm
Weight
780g
850g
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
Packing & Delivery
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
Package
Packing: box
1pcs in one box
PCS/CTN:50PCS
The total net weight: 16kgs
The total gross weight:17kgs
24V 12V PWM 60a Solar Charge Controller 30A PWM Solar Regulator
Company Profile
Shenzhen Shengshi Tianhe technology Co., LTD. was founded in 2002 and factory has over 8000 square meters. At the end of 2017, the company have 500 employees, including technical research and development and management staff more than 65 peoples. SZSSTH are hi-tech enterprise which is engaged in R&D, production, sales and service of power inverter, solar inverter, solar panel, solar charge controller, solar power bank & power station, universal laptop adapter, car jump starter , switching power and so on. We obtained the CE ROHS FCC LVD TUV, UL, KC, SAA,SGS,UKCA, REACH, PAHS ,BSCI, NF GS and others certificates for our product. Our products are exported to many countries and regions such as Eurasian, North and South America, Middle East and Africa.
