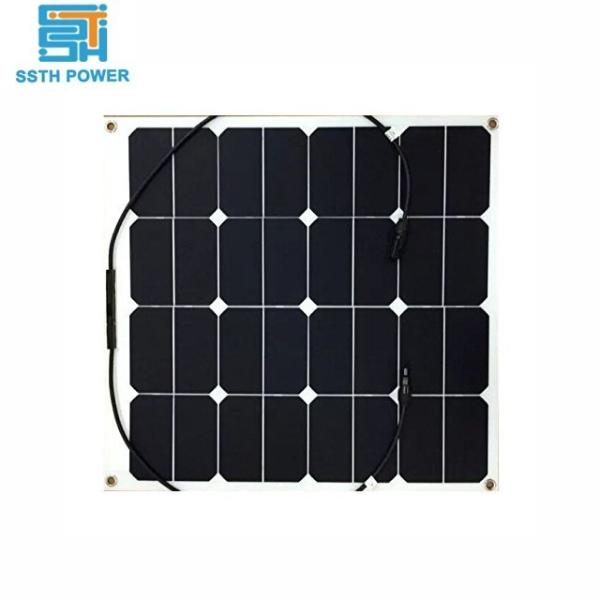

50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
Specifications
Brand Name :
SZSSTH
Model Number :
50W
Place of Origin :
Guangdong, China
Price :
CN¥6.44/watts 1-9999 watts
Panel Efficiency :
19%
Product name :
portable ETFE flexible 12V 50W solar panel
Type :
Mono Solar Panel, Flexible
Pmax :
50 watt
Solar cells efficiency :
19%
Temperature :
-40℃ to +80℃
Vmp :
18V
Voc :
21V
Isc :
3.0A
Junction Box :
IP67 Rated Waterproof
Application :
RV, boat, cabin, tent, yachts, car, trucks, trailers
Warranty :
10YEARS
Size :
560*540*3mm
Certificate :
TUV
Description

50W ETFE Flexible Solar Panel for 12V Mono Waterproof Solar Energy System and Environmentally Friendly

Products Description
Mono waterproof solar energy system portable ETFE flexible 18V 50W solar panel

1.High efficiency: The efficiency of Mono crystalline solar panel is up to 19%, so it can capture more sunlight than conventional solar panels which is 15% or even lower.

2.Flexible and convenient: It can be curved to a maximum 30 degree arc, which makes it ideal for storage in tight spaces or crowded areas, easier to transport, hang and install.

3.Durable: The water resistant flexible solar panel is far more durable than traditional glass and aluminum models; The junction box is sealed and waterproof.

4.Safety Protection: Short circuit and surge protection technology keep you and your devices safe.

5.Widely compatible: Applicable for RV, boat, cabin, tent, yachts, car, trucks, trailers or any other irregular surface.
Product Paramenters
Power
50Watt
Material
Monocrystalline Solar panel
Solar cell
Mono 125*125 Cell
Optimum Operating Voltage/Vmp
18V
Optimum Operating Current/Imp
2.7A
Open Circuit Voltage /Voc
21V
Short Circuit Current /Isc
3.0A
Product dimension
560*540*3mm
Numbers of cells
16(4*4)
Junction box waterproof rate
IP67 Rated
Working temperature
(-40)℃ to (+80)℃
Connect cable
90cm with Connector
Details Images
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
Recommend Products
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System

100W 200W 300W 400W Rigid solar panel
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System

100W 200W 300W 400W PET semi-flexible solar panel
Company Profile
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
50W ETFE Flexible Solar Panel For 12V Mono Waterproof Solar Energy System
FAQ
Q1 Advantage for ETFE flexible solar panel
A1: ETFE flexible solar panel, bump surface, increase light absorption. Rigid solar panel, smooth surface, easy to reflect light, reduce the absorption efficiency

Q2 what is the MOQ for solar panel special design
A2: MOQ is 100pcs for special design

Q3 what is the packing method for solar panel
Sample using carton packing, mass production using pallet for transportation

Q4 what is your company's after sale service?
A: If the problem can be easy fix by customer, we show client how to fix it by picture and words. B: If need the parts to fix the
problem, then we send the parts for free.
C: If the problem can't be fixed on client's side, we will send new goods together with the next order. And arrange forwarder
company to fetch all defective products at one time, then delivery it back to China.
