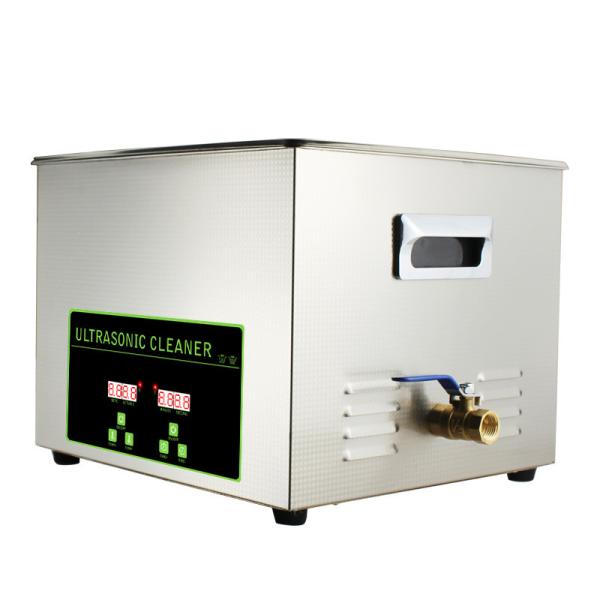

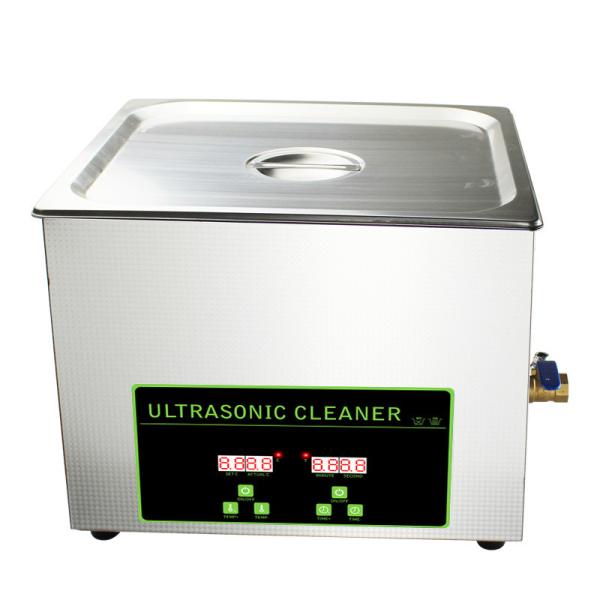

Lab Instrument Ultrasonic Dental Cleaner , Ultrasonic Dental Cleaning Machine 50 W
Lab Instrument Ultrasonic Dental Cleaner , Ultrasonic Dental Cleaning Machine 50 W
Lab Instrument Ultrasonic Dental Cleaner , Ultrasonic Dental Cleaning Machine 50 W
Lab Instrument Ultrasonic Dental Cleaner , Ultrasonic Dental Cleaning Machine 50 W
Specifications
Brand Name :
OEM
Certification :
CE RoHS FCC
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
500pcs per month
Delivery Time :
8-20 working days
Packaging Details :
1pcs / carton (30*20*20cm), 12pcs / carton (56*53*38cm)
Material :
Stainless steel 304
Application :
Lab Ultrasonic Cleaner
Option :
Ultrasonic Cleaning
industry :
Washer Tools
Ultrasonic power :
50 W
Frequency :
20 To 40khz Frequency
Description

Lab Instrument Ultrasonic Dental Cleaner , Ultrasonic Dental Cleaning Machine 50 W

Product Description

An ultrasonic cleaner is the ideal method for cleaning and restoring delicate items, which makes jewelry a perfect candidate for this methodology. Day-to-day dirt and grime, oily residues and even jewelers rouge (a compound for cleaning and buffing jewelry) can be removed from the tiny crevices and hidden passageways of these items. This cleaning method is ideal because the equipment can be adjusted to the proper ratio and frequency required to clean but not damage items. This is one of the top benefits of

We also design and manufacture custom systems for unique applications and can provide components to convert or upgrade an existing tank. Whether you need a system to clean bearings or ceramics, ophthalmic precision lenses or mechanical manufacturing assemblies, we have a system that provides you with results.

laboratory ultrasonic cleaner, including High Frequency Desk-top Lab Ultrasonic Cleaner, Low Frequency Desk-top Lab Ultrasonic Cleaner with Heater and Low Frequency Desk-top Lab Ultrasonic Cleaner.

Brief introduction of the tabletop ultrasonic cleaner:

  • Lowest-cost tabletop ultrasonic cleaning and parts washing equipment
  • Used to Remove Virtually Any Contaminant with the Proper Cleaning Agent
  • Oil, Coolant, Metal Chip and Fines Removal
  • For cleaning metal parts and most other precision cleaning
  • Parts cleaning, injection mold cleaning, ultrasonic degreasers, etc
  • Excellent ultrasonic performance
  • Tank capacity comes from 2-30L
  • Digital models > Mechanical models > power adjustable models

Benefits

• The process reaches parts of the Medical Device that are extremely difficult to clean with traditional cleaning methods.
Medical Device gets completely clean, leaving it looking brand new.
• No need to disassemble the jewelry.
• Multiple pieces can be cleaned at once, saving time and money. Follow manufacturer recommendations for maximum pieces in your ultrasonic cleaner.
• Gentle cleaning does not damage delicate pieces and allows for cleaning as often as necessary.

Steps
1. Fill chamber with cleaning solvent
2. Note that water must be hot. Ideally, you would use an ultrasonic cleaner with a heater.
3. Run a pre-cleaning cycle
4. Submerge Medical Device into cleaning solvent
5. Run the cleaning cycle
6. After the cycle is complete, remove the items from the parts basket and rinse the solution from the items
7. After rinsing brush the pieces with a soft-bristled brush. Paying special attention to brushing around the claws and crowns that hold the gemstones or diamonds in place.
8. Complete with a final rinse. Place the jewelry in water only and dry with a soft cloth once rinse cycle is complete.

Product specifications:

Model Tank size Unit size Volume Actual ultrasonic power Rated ultrasonic power Ultrasonic frequency Heating power Timer Heating temperature
LxWxH(mm) LxWxH(mm) (L) (W) (W) (kHz) (W) (MIN) (℃)
TB-50 150x135x100 175x160x210 2 50 60 40 150 1-30 0-80
TB-100 240x135x100 265x165x220 3.2 100 120 150
TB-150A 300x150x100 325x180x225 4.5 150 180 300
TB-150B 300x150x150 325x180x280 6.5 150 180 300
TB-200 300x240x150 325x265x280 10.8 200 240 450
TB-300 330x300x150 360x325x285 15 300 360 450
TB-400 500x300x150 530x325x285 22 400 480 600
TB-500 500x300x200 530x325x325 30 500 600 600

What is Cavitation

1. The water pressure (sound pressure) of the liquid changes when liquid is irradiated by ultrasonic wave.

2. This sound pressure grows big than static pressure, and a expanding force acts when sound pressure became negative pressure (decompression), and the gas which cleaning fluid breaks off and can dissolve in cleaning fluid becomes a nucleus, and there is almost the cavity of the vacuum. This phenomenon is called cavitations.

3. Because positive and negative pressure of the sound pressure are repeated in turn, and the cavity gradually grows up and it cannot endure compression of the positive pressure at last, and it is crushed instantly and becomes extinct, but a liquid molecule clashes at this time and produces by a big crash force

4. A dirt and garbage sticking the cleaning object are exfoliated by this crash force and can perform cleaning.Selection of low frequency ultrasonic oscillation by cleaning usage.By difference of oscillation mode and frequency, the strength of cavitations are different.
Choose oscillation mode and frequency by kind of materials and dirt (particle) of cleaning object.The feature of each oscillation mode 26 kHz Single frequency
Although there are much sound pressure irregularities to deep direction in liquid, it is suitable for mainly iron system metal cleaning because occurring cavitations are very strong.· 36 kHz SWEEP
There are little sound pressure irregularities to deep direction in liquid and is suitable for uniform cleaning of aluminum-based metal, glass, ceramics, etc.

Product tags

ultrasonic dental cleaning machine

,

ultrasonic teeth cleaning machine

,

medical ultrasonic cleaning machine
