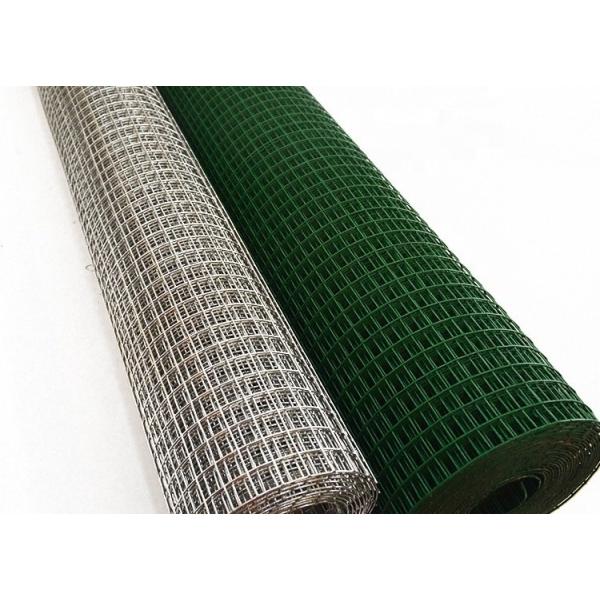

Standard 30m Length Roll 1x1 Galvanized Welded Wire Mesh
Standard 30m Length Roll 1x1 Galvanized Welded Wire Mesh
Standard 30m Length Roll 1x1 Galvanized Welded Wire Mesh
Standard 30m Length Roll 1x1 Galvanized Welded Wire Mesh
Specifications
Brand Name :
HuanHang
Model Number :
GWWM06
Certification :
SGS
Place of Origin :
ANPING
MOQ :
1Roll
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Rolls per 3days
Delivery Time :
3-5 days
Packaging Details :
Welded wire mesh usually packed with plastic film, outside wrapped with waterproof paper. or according to customers requirement.
name :
Standard 30m length roll electro/silver/green Galvanized Welded Wire Mesh
color :
silvery Green
Hole Shape :
square
Processing Service :
welded
Surface treatment :
galvanized
Usage :
Construction Wire Mesh
MOQ :
1 Roll
Application :
Fence Mesh
Description

Standard 30m length roll electro/silver/green Galvanized Welded Wire Mesh


Product Description

Welded Wire Mesh Materials: low carbon steel wire,galvanized wire,PVC coated wire,stainless steel wire
Welded Wire Mesh: low carbon steel wire welded wire mesh,electro galvanized wire welded wire mesh,hot dipped galvanized welded wire mesh,and PVC coated welded wire mesh,stainless steel welded wire mesh
Welded Wire Mesh Materials Service Life : 5-10 years
Welded Wire Mesh Materials Technique : Welded
Welded Wire Mesh Materials Type : Panels and rolls,

1. Welded wire mesh is a popular material in construction and industry area. It is made of low carbon steel
wire or stainless steel wire. Welded mesh fabric is widely used in construction, security system, filtration,
food industry, agriculture and etc.
2. Our factory produces hot dipped galvanized welded mesh, electro galvanized welded mesh, black welded
mesh, PVC coated welded mesh, and stainless steel welded mesh and holland wire mesh (Euro fence)


Welded Mesh Roll Specification
Mesh Wire Diameter
In Inch In MM Wire Gauge In MM
1/4" x 1/4" 6.4mm x 6.4mm 22#-24# 0.7mm-0.6mm
3/8" x 3/8" 10.6mm x 10.6mm 19#-22# 1.0mm-0.7mm
1/2" x 1/2" 12.7mm x 12.7mm 16#-23# 1.6mm-0.6mm
5/8" x 5/8" 16mm x 16mm 18#-21# 1.2mm-0.8mm
3/4" x 3/4" 19.1mm x 19.1mm 16#-21# 1.6mm-0.8mm
1" x 1/2" 25.4mm x 12.7mm 16#-20# 1.6mm-0.9mm
1" x 1" 25.4mm x 25.4mm 14#-21# 2.0mm-0.8mm
11/2" x 11/2" 38mm x 38mm 14#-19# 2.0mm-1.0mm
1" x 2" 25.4mm x 50.8mm 14#-16# 2.0mm-1.6mm
2" x 2" 50.8mm x 50.8mm 12#-16# 2.6mm-1.6mm


Welded Mesh Panel Specification

Opening/ Length Opening/ Width Wire Diameter Roll Size Material
25-100mm 10-100mm 2mm Width: 0.5-2.5m
Length: 1-6.5m		 1) Electro Galvanized Wire
2) Electro Galvanized after Welded
3) Hot dipped Galvanized Wire
4) Hot dipped Galvanized after Welded
5) PVC Coated
6) Stainless Steel Wire
25-100mm 10-100mm 2.5mm
25-100mm 10-100mm 3mm
25-100mm 10-100mm 3.5mm
25-200mm 10-200mm 4mm
50-200mm 10-200mm 5mm
50-200mm 20-200mm 6mm
50-200mm 20-300mm 7mm
100-500mm 30-300mm 8mm
100-500mm 30-300mm 9mm
100-500mm 30-300mm 10mm
4''x6'' 101.6x152.4mm BWG15-12
6''x6'' 152.4x152.4mm BWG15-12
6''x8'' 152.4x203.2mm BWG14-12

Welded Wire Mesh Feature:
* Smooth mesh surface and bright luster

* Well-proportioned meshes
* Strong welded points
* High solid structure
* Corrosion-resisting
* Oxidation-resisting


Standard 30m Length Roll 1x1 Galvanized Welded Wire MeshStandard 30m Length Roll 1x1 Galvanized Welded Wire MeshStandard 30m Length Roll 1x1 Galvanized Welded Wire MeshStandard 30m Length Roll 1x1 Galvanized Welded Wire Mesh
Standard 30m Length Roll 1x1 Galvanized Welded Wire Mesh
FAQ

Q:Do you accept ODM&OEM orders?

A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize in

different styles, and sizes in different brands, we also customize packaging box as per your requirements.

Q:What’s the MOQ?

A: MOQ is 10Rolls for standardized products; for customized products, MOQ should be negotiated

in advance. There is no MOQ for sample orders.

Q:How long is the lead time?

A: The lead time for sample orders is 3-5 days, for bulk orders is 10-25 days.

Q:How to place orders?

A: 1. Email us the model, brand and quantity, consignee information, shipping way andpayment terms;

2. Proforma Invoice made and sent to you;

3. Complete Payment after confirming the PI;

4. Confirm Payment and arrange production.

Anping Huanhang Wire Mesh Co.,Ltd

Contact Person : Ms Anna Zhang

Wechat:0086-15075862223

Email:Anna@huanhangwiremesh.com

Tel: 0086-15075862223

ADR: Hecun, Anping County, Hengshui, Hebei, China
