Indoor Stadium Perimeter LED Display Space Saving Easy Maintenance 4mm Pixel Pitch
Indoor Stadium Perimeter LED Display Space Saving Easy Maintenance 4mm Pixel Pitch
Indoor Stadium Perimeter LED Display Space Saving Easy Maintenance 4mm Pixel Pitch
Indoor Stadium Perimeter LED Display Space Saving Easy Maintenance 4mm Pixel Pitch
Specifications
Brand Name :
PASSION LED
Model Number :
P4
Certification :
CE, ROSH
Place of Origin :
China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
5000 Square meter + per month
Delivery Time :
20~25 working days
Packaging Details :
flght case and wooden case
Usage :
Indoor
Pixel pitch :
4mm
LED chip :
Nationstar
Tube chip cplor :
full color
Brightness :
6000cd/sqm
Display function :
video
Description

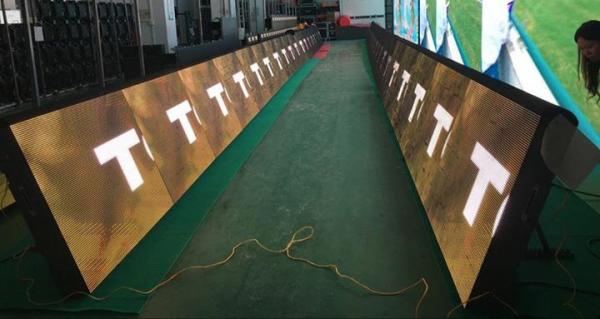

Indoor Stadium Perimeter LED Display Space Saving Easy Maintenance 4mm Pixel Pitch

1. Portable die-casting Aluminum design of the panel,easy to install or disassemble.

2. Creative innovations to replace traditional IRON structure outdoor permanent LED screen With one more holder to hold up the screen, it can be widely used for outdoor applications.

3. Solid & light;

The cabinet is made of aluminum die-casting, very strong and light, only 35kg/sqm, while normal iron cabinet is 55kg/sqm;

4. Unique aluminum module frame, good for heat sink;

5. Multi-function display;

The back bracket is removable, means that you can easily take off bracket in 3 seconds, then it turns normal display for fixed installation or rental business;

6. Different pitch display share one same cabinet frame;

pitch 2.6mm, 3.2mm, 5.33mm, 6.4mm, 8mm, 10.66mm, 12.8mm, 16mm share one cabinet frame of 1024*768mm, in case in future of update, you only need to change modules, so it helps you save money;

7. Easy maintenance;

Front access module is available, so you can take off module easily;

Pure white color display always available, due to we use top rate Leds;

Quick Detail:

1. Save maintenance space

2. Clear vivid image quality

3. Easy Installation & Using

4.Convenient servicing

5. Waterproof Level: IP31

FAQ:

Q1. What about the delivery lead time?


A: About 22 days after receiving payment.

Q2. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 4-8 days to arrive. Airline and sea shipping also optional. And you can also designate shipping companies.

Q3. How to proceed an order?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the solution and places deposits for formal order.
Fourthly We arrange the production.

Q4. Is it OK to print my logo on the product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q5. Do you offer guarantee for the products?

A: Yes, we offer 2 years warranty to our products.

Specifications

Indoor LED Display Technical Parameter

Model No. PIP-P4
Pixel Pitch 4mm
Module Size 128mm ×128mm
Module Resolution(Pixel) 32dots ×32dots
Pixel Density 62,500 dots/㎡
LED Type SMD 3 in 1
Pixel Configuration 1R1G1B
Wavelength (R.G.B) R:625±2nm G:525±2nm B:470±2nm
Drive Mode Dynamic 1/16 Duty Constant Current
Cabinet Size 640 ×512 ×135mm
Cabinet Resolution 160dots ×128dots
Brightness ≥ 1200cd/㎡
Contrast ≥ 2000:1
Viewing Angle 140°(Horizontal )/140°(Vertical )
Minimum Viewing Distance 3m
Grey Scale 10bits/1024levels
Color Capability 16,777,216
Color Temperature 5000-9300K
Maximum Power Consumption 800W/㎡
Average Power consumption 300W/㎡
Working Voltage AC 220V/110V s±15% 50-60 HZ
Frame Frequency 60-85HZ
Refresh Frequency 240-1000HZ
Brightness Correction Pixel, Module, Cabinet Correction
Operating Temperature Static:-40°C~+85°C Working:-20°C~+60°C
Operating Humidity 10-90% RH
LED Lifespan 100,000 hours
MTBF ≥50,000 hours
Computer Operation System Win 98/ Win XP/ Win 2000
Video Signal Input RF,S-Video,RGB,RGBHV,YUV,YC,VGA, DVI, HDMI, SDI,HD-SDI ,Composite
Video Signal Output RF, S-Video, GB, RGBHV, YUV, YC etc.
Graphics Card DVI Graphics Card
Control Distance UTP CAT5E:100m Multi-mode Fiber:500m Single-mode Fiber:10km
Control System LINSN OR DB-STAR
Software LED studio 10.0
Waterproof Level IP31
Installation Wall mount, hung and stand structure
Out of Control Rate

0.01 %

Indoor LED Display Module

Module Size (W*H) 128mm*128mm Pixel Configuration 1R1G1B
Pixel Pitch 4mm Resolution (W*H) 32 dots*32 dots
Pixel Density 62,500 dots/㎡ LED Type SMD2121

Indoor LED Display Cabinet

Cabinet Size (W*H) 640mm ×512mm x135mm Module Qty 20 pcs
Cabinet Resolution (W*H) 160 dots*128 dots Cabinet Pixel 20,480
Average Power Consumption 300w/㎡ Max Consumption 800 W/㎡

Applications

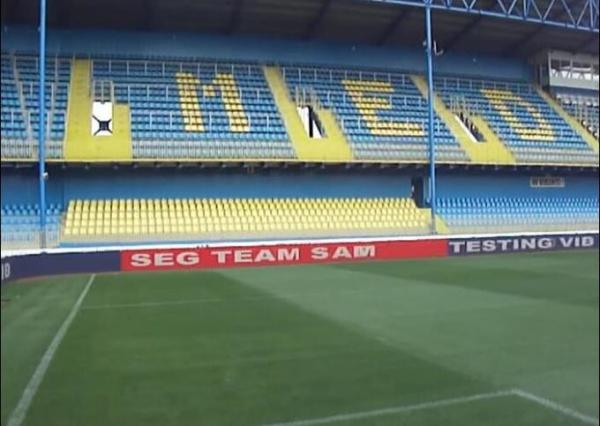

Stadium inside and outside such as football, baseball, basketball match etc.
