Specifications
Brand Name :
PASSION LED
Model Number :
P37.5mm / 56.25mm / 75mm
Certification :
CE,ROSE
Place of Origin :
China
MOQ :
1PCS
Price :
USD880/PCS
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
5000 square meter per month
Packaging Details :
flight case and wooden case
Name :
Outdoor LED Advertising Panel
pixel pitch :
50mm
transperency :
>50%
tube chip color :
full color
brightness :
3300nits
display function :
video
protection level :
IP67
Description

Curtain Outdoor LED Advertising Panel , Exterior Advertising Display Glass Window

Short Description of Outdoor LED Advertising Panel

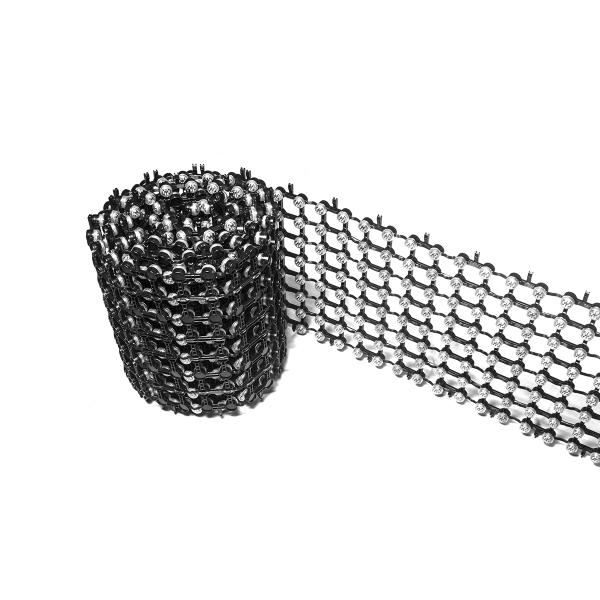

Ultra flexible, easy to form a flat screen or curved to match with irregular shaped building facade, both pixel pitch, panel size and panel color can be customized.

Specification of Outdoor LED Advertising Panel

Model Name M6
Pixel Pitch 37.5mm / 56.25mm / 75mm (pixel pitch can also be customized)
Pixel Configuration 6*SMD3535
Panel Size 0.3m x 4.8m / 0.45m x 7.2m / 0.6m x 9.6m (Size can be customized)
0.98' x 15.75' / 1.48' x 23.62' / 1.97' x 31.50'
Panel Resolution 8*128
Weight 10.5 kg/sqm; 5.5 kg/sqm; 3.5 kg/sqm
23.1 lbs/sqm; 12.1 lbs/sqm; 7.7 lbs/sqm
Brightness 7200nits/ 5100nits /2400nits (Nationstar SMD3535)
IP Rating(Front/Rear) IP65
Refresh Rate 1000 Hz
Transparency Rate 55% / 75% / 85%
Scan Mode Static
Max Power Consumption 600 W/sqm; 400 W/sqm ; 250 W/sqm
Color Processing 16 bit
Viewing Angle(H/V) 140°/110°
Operating Temperature -20~40°C
Main Power Source AC 100~240V; 50/60Hz
Input Voltage 15V DC
Humidity 10~90%RH
Life Time >50,000 Hours

Description of Outdoor LED Advertising Panel :


1. SMD led encapsulation confirm wide view angle and good uniformity

2. Good waterproof IP65, can be used under any weather outdoor permanent

3. High pixel density, Long view distance, High definition, Good uniformity

4. Cables connected with aviation plugs, easy and quick to connect between cabinets

5. Cabinet design with good heat dissipation itself, with antirust protection,long life span>100000Hours

6. Can be fixed installation or for rental to meet the request of live broadcast, live meeting, banquet, party, etc, to display the content what you want, connect with PC computer or network, also can remoto control with asynchronous system.

Curtain Outdoor LED Advertising Panel , Exterior Advertising Display Glass Window

High transparency maximizes the natural light get inside of the building, also ensuring the screen has great ventilation and wind-resistance function

Curtain Outdoor LED Advertising Panel , Exterior Advertising Display Glass Window

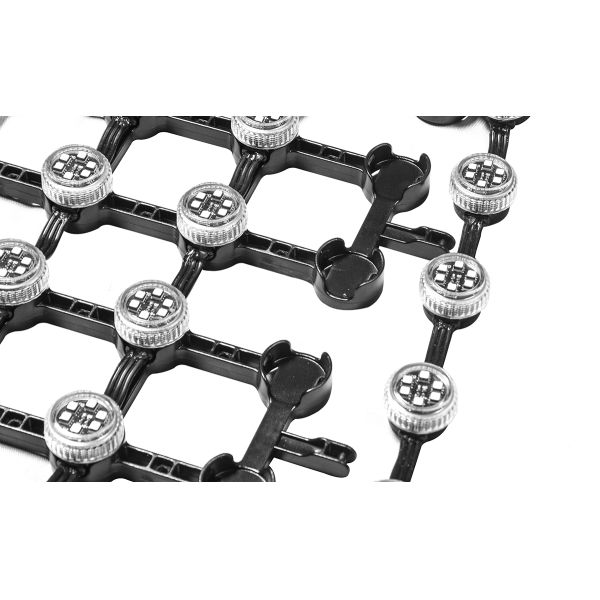

inter-panel locks make installation quick and easy especially for a large-sized screen

Curtain Outdoor LED Advertising Panel , Exterior Advertising Display Glass Window

Ultra light, a simple installation structure is enough to hold the screen. Panels can be well fixed by locking the following two pieces of connector on installation structure

Curtain Outdoor LED Advertising Panel , Exterior Advertising Display Glass Window
