TV Studio HD LED Display Synchronous Asynchronous Systems Ultra Thin 4.5Kg
TV Studio HD LED Display Synchronous Asynchronous Systems Ultra Thin 4.5Kg
TV Studio HD LED Display Synchronous Asynchronous Systems Ultra Thin 4.5Kg
TV Studio HD LED Display Synchronous Asynchronous Systems Ultra Thin 4.5Kg
TV Studio HD LED Display Synchronous Asynchronous Systems Ultra Thin 4.5Kg
TV Studio HD LED Display Synchronous Asynchronous Systems Ultra Thin 4.5Kg
TV Studio HD LED Display Synchronous Asynchronous Systems Ultra Thin 4.5Kg
TV Studio HD LED Display Synchronous Asynchronous Systems Ultra Thin 4.5Kg
Specifications
Brand Name :
PASSION
Model Number :
P1.25mm
Certification :
CCC , CE , ROHS
Place of Origin :
Shenzhen,China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
2000SQM/Month
Delivery Time :
10 - 20 working days
Packaging Details :
Export Wooden Case & Flight Case
LED supplier :
NATIONSATR
Cabinet Weight :
4.5Kg
Driving Method :
32 duty
Working voltage :
AC 100-240V
Material :
Aluminum
Viewing Angle(H/V) :
140°/140°
Brightness :
800CD/sqm
Refresh Rate :
3840Hz
Description

TV Studio HD LED Display Synchronous Asynchronous Systems Ultra Thin 4.5Kg

Features of HD LED Display

1) Support all kinds of videos, graphics, pictures, files, text, and other forms of play.

2) Though using high brightness LED under low power consumption,done energy saving.

3) Synchronous asynchronous systems meet diverse needs.

4) Module and cabinets size of freely assembly.

5) With a fine pixel pitch of 1.56mm,High contrast and high image quality.

6) 4.6 kg of ultra-thin panel, save transportation and installation costs.

7) Wide viewing angle and longer viewing distance for more audiences.

8) Wide color range, excellent color uniformity, broadcasting strong stability.

Application of HD LED Display:

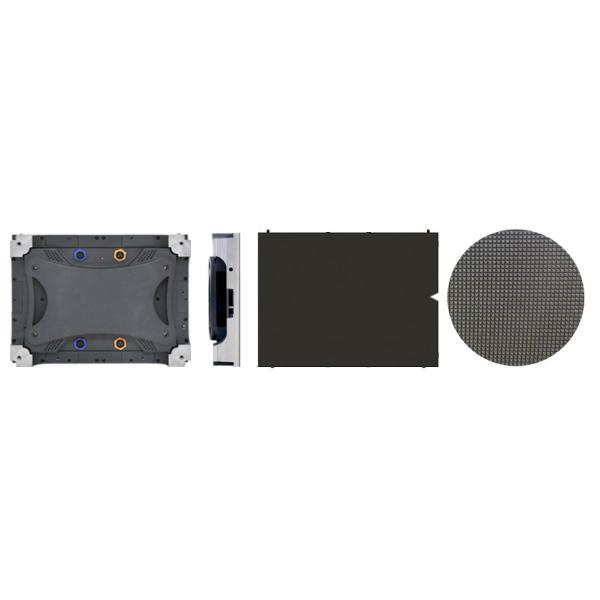

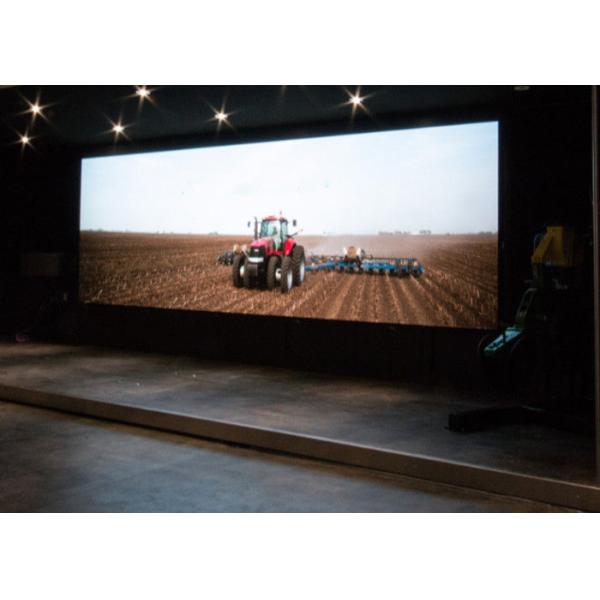

PASSION LED P1.56 indoor HD LED display is also called HD LED TV as one of the most popular led display used in TV Studio, Entertainment Center, Surveillance Room, Indoor meeting hall. With small cabinet size: 400 x 300mm, Die-casting aluminum structure with high precision and cooling effect.


Detail Specifications of the HD LED Display:

Pixel Pitch 1.56mm
Pixel Density 409066px/m2
LED Type SMD1010
LED Configuration 1R1G1B
Cabinet Weight 4.5kg
Cabinet Material die-casting
Ingress Protection
(front/rear)		 IP40/IP21
Brightness >800nits
Viewing Angle(H/V) 140°/140°
Driving Method 1/32 Scan
Power Consumption(avg.) 220w/m2
Frame Refresh ≥ 60Hz
Data Refresh Rate ≥ 1500Hz
Gray Scale 16bit
Power Supply AC 110/220±10%
50~60Hz
Temperature
(operating/storage)		 -20~50°C
-40~60°C
Humidity(operating/storage) 10%~90%RH
10%~85%RH
MTBF ≥1000 Hours
Life Span ≥50000 Hours
Pixel Failure <0.0003



TV Studio HD LED Display Synchronous Asynchronous Systems Ultra Thin 4.5Kg

Tips about HD LED Display

* Package: Wooden package, Flight case.

* Shipment:By road,sea and air

* Delivery time:20-25 working days
* Payment: T/T, 30% deposits, 70% balance before delivery
* Shipping port: Shenzhen
* Warranty time: 2years
