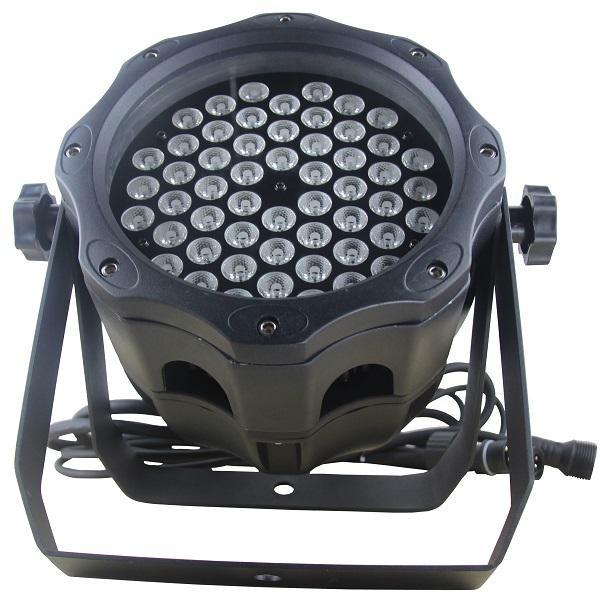

Outdoor Waterproof LED Par 54 Pcs 3W rgbw ip67 6000k Led Par Can Lights

Fully waterproof design, factory waterproof products, where factory are soaked in water 15 minutes testing.

Cold, sunscreen & waterproof power and signal cable, the minimum working temperature of -40°C.

STM32 32-bit microcomputer with 256 tune light subdivided into 65,536, and simulates a conventional light

source dimming curve easily cope with the master picky.Variety show of the various types of performances,

hotel, bar, KTV and other kinds of entertainment venues.

Application:

On trusses at live

TV Events

On stage

In showrooms

Conference rooms

Specification:

Voltage: 115-230V, 50/60 Hz Output Voltage: DC28V DC12V
Power: 200W
Wave length: Red 620-630nm, Green 525-530nm, Blue 464-468nm
Chip: Taiwan Epistar Red 42mil, Green 45mil, Blue 45mil, White 45mil
Lamp Source: Chinese 3W LED
Output power: 162W
Color Temperature: 6000K
Average lifetime: 80000h.

OPTICS
Using Ledlink secondary optical Lens
Lens Angle: 15° 25° 20° 45° 60°

COLOR SYSTEM

Color: R14 G14 B14 W12
Dimming: 65536 levels,can preset 5 dimming curves,also can be called by controller directly
Use: Stage, Wedding, TV Show, Theatre

CONTROL SYSTEM:
DMX Channel: 3 4 5 6 7 9 11 HSV
DMX protocol signal: USITT DMX 512
Display board: Four independent buttons
DMX signal connection: 3 pin XLR input and output
Software upload through DMX input
Power Cable: Silicone cable, Cold-proof and freeze-proof under -40℃

BODY:
Die-cast Aluminum case

ELECTRONICS:
Cooling system: Shell heat dissipation, Temperature control
“AUTO TEST” function from menu
IP Rate: IP67
Cooling system monitoring
DMX level monitoring on all channels

SAFETY DEVICES
Bipolar circuit breaker with thermal protection.
Automatic break in power supply in case of overheating

WORKING POSITION
Functions in any position.

CERTIFICATE:
CE, RoHS

WEIGHT
8.5kg
