300W Moving Head Zoom Spot Stage Lighting For Large Scale Live Concerts/Club White Housing

Quick Detail:

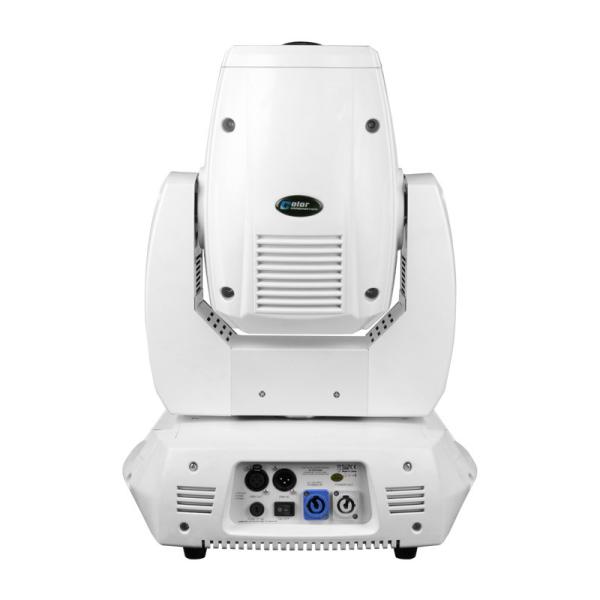

The LEDSPOT 300 with ultra high brightness and low power consumption realized by a 7500k 300W single white LED lamp. It features a 12° to 36° linear motorized zoom that brings much
wider application capability for pro lighting designers. It's a pro LED SPOT with outstanding light
intensity, in a compact case. The PAN/TILT integrates in fast and quiet movement. It offers a full
complement of professional characteristics, including a rotatable gobo wheel (7 gobos plus open), a static gobo wheel (9 gobos plus open), a color wheel (7 colors plus open), motorized linear IRIS, 3-Facet rotating prism, variable frost filter, motorized linear focus, 0-100% linear LED dimmer, variable speed shutter/strobe.

Specifications :

• Iinput Voltage: AC90-260V 50/60Hz
• LED Quantities: 1*300W white LED lamp
• Control Signal: DMX512, master-slave and sound activated or auto operation
• Control Channel: 17/15/17 DMX channels USITT DMX-512
• Power Consumption: 390W
• Dimensions: 318(D)*411(W)*628(H)mm
• Packing Dimensions: 485(D)*685(W)*460(H)mm
• Net Weight: 21kg
• Gross Weight: 23.5kg

Description:

1. A 300W single white LED lamp
2. 50000 hours life span and low power consumption
3. 8/16 bit smooth and precise resolution for PAN/TILT movement
4. 540°/630° PAN and 270° TILT movement
5. Scan position memory, auto reposition after unexpected movement
6. Linear motorized zoom with 12° to 36° beam angle
7. Improved optics and flat beam field
8. 1 rotatable gobo wheel with 7 rotatable and interchangeable glass gobos plus open
9. with speed adjustable, stream effect, dithering effect and rotatable clockwise or
10. anticlockwise
11. Gobo indexing
12. Gobo size 26.9mm (external dimensions)/21mm (inner dimensions)
13. 1 static gobo wheel with 9 gobos plus open
14. Gobo overlay (gobo morphing)
15. 1 color wheel with 7 colors plus open
16. Variable direction rainbow effect with speed adjustable
17. 2 meter to infinite electric focus
18. Motorized linear IRIS
19. 3-facet prism with variable speed and direction
20. Variable linear frost filter (Hybrid effect for wash)
21. 0-100% linear LED dimmer
22. 20T/sec high speed LED shutter/strobe effect with variable speed
23. Preset variable/random strobe and dimming pulse effect
24. 17/15/17 DMX channels USITT DMX-512
25. Customizable DMX channel assignment (17CH)
26. DMX512, master-slave, and sound activated controllable or auto operation(8 built-in
27. programs)
28. DMX recorder and edit function integrated
29. Blue background LCD display
30. Powercon IN/OUT
31. 3-pin XLR connectors IN/OUT
32. Fan cooling system
33. Constant temperature readout and management function
34. 45°C max ambient temperature
35. IP20 protection rating
36. 55dB at 3’dB rating
37. 2*1/4 turn fastening Omega clamps

Products effect:
