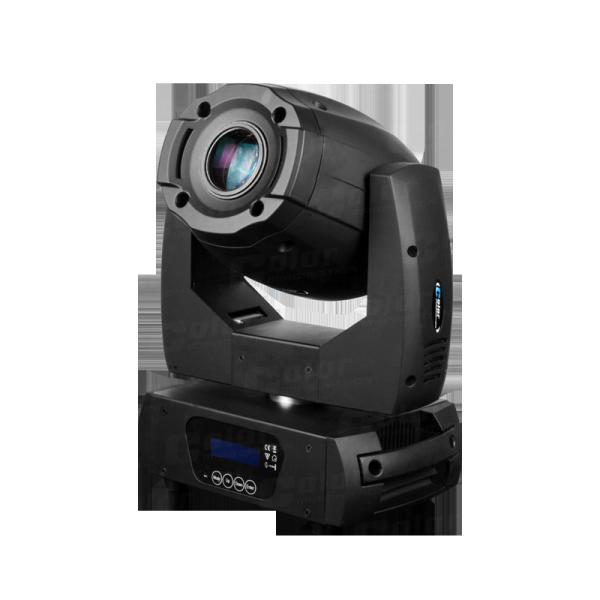

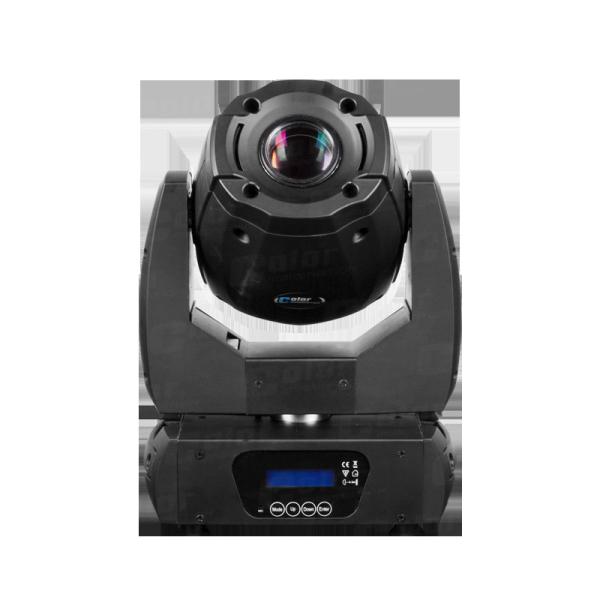

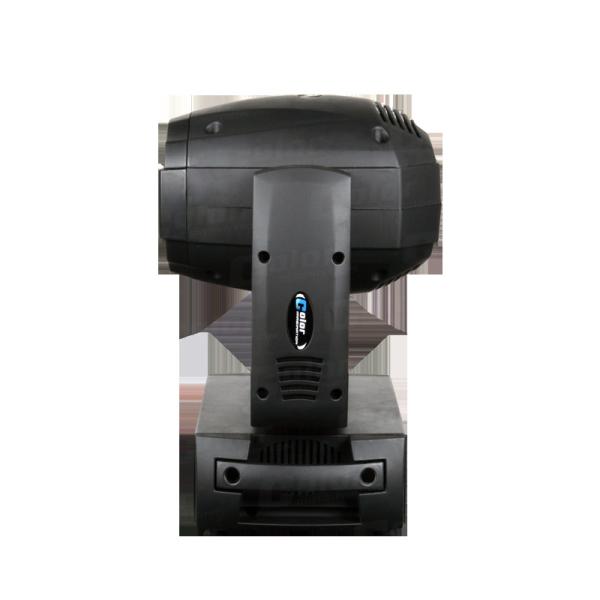

150W Mini Moving Head Spot With Blue LCD Display And White LED Lamp

Quick Detail

The MINISPOT 150 features a 7500K 150W LED with high intensity and efficiency.It produces very high light output, through a specific 13.2° optic system. The PAN/TILT integrates in fast and quiet movement.

Itoffers a full complement of professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, a 3-facet prism,linear electronic focus, 0-100% linear LED dimmer, variable speed

shutter/strobe.

Features

> A 150W white LED lamp, 7500K

> 50000 hours life span and low power consumption

> 8/16 bit smooth and precise resolution for PAN/TILT movement

> 360°/540°/630° PAN and 90°/180°/270° TILT movement

> PAN/TILT inversion available

> Scan position memory, auto reposition after unexpected movement

> Specific high precision glass optic system with 13.2° projection angle

> Improved optics and flat beam field

> 1 rotatable gobo wheel with 6 rotatable and interchangeable gobos plus open with speed adjustable,

stream effect, dithering effect and rotatable clockwise or anticlockwise

> Gobo size 23.9mm (external)/15mm (inner)

> Static gobo wheel with 11 gobos plus open

> Color wheel with 7 colors plus open

> Variable direction rainbow effect with speed adjustable

> 2.5m -15m electric focus

> 25T/sec high speed LED shutter/strobe effect with variable speed

> 3-facet prism with variable speed and direction

> 0-100% smooth linear LED dimmer

> Preset variable/random strobe and dimming pulse effect

> 12/14 DMX channels USITT DMX-512

> DMX512, master-slave, and sound activated controllable or auto operation (7 built-in programs)

> DMX recorder and edit function integrated

> Blue LCD display

> Powercon connector IN/OUT

> 3-pin XLR connectors IN/OUT

> Low noise fan cooling system

> Constant temperature readout and management function

> -35°C~45°C max ambient temperature

> IP20 protection rating

> 55dB at 3’dB rating

> 2*1/4 turn fastening Omega clamp

> 1*Safety attachment point

Specification

> Input Voltage:AC90-260V 50/60Hz

> LED Quantities:1*150W white LED

> Control Signal:DMX512,master-slave and sound activated or auto operation

> Control Channel: 12/14 DMX channels USITT DMX-512

> Power Consumption:215W

> Dimensions:183(D)*298(W)*410(H)mm

> Packing Dimensions:400(D)*510(W)*280(H)mm

> Net Weight: 9.5kg

> Gross Weight: 11kg

Applications

Disco and Club, Band performance, Stage show, Road show, Live concerts
