Light Weight Stylish MINI Housing 250 Watt LED Moving Head Spot

IP20 DMX -512 With Rotating Gobo

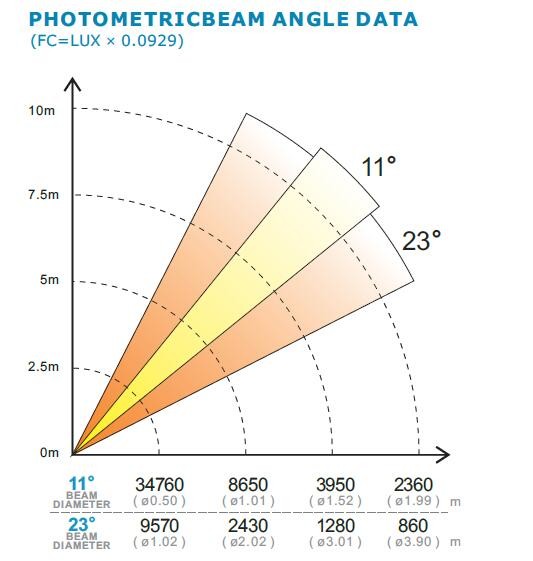

It’s another breakthrough high power LED moving head spot with a very smooth and precise linear motorized zoom ranging from 11°-23° built into a very compact and light weight stylish MINI housing. The MINISPOT 250Z features a 7500K 250W LED with high intensity and efficiency through a set of high resolution glass lens which helps to provide extremely clear and even spot coverage. It offers a full complement of other professional characteristics, including a rotating gobo wheel, static gobo wheel, color wheel, a 3-facet prism, linear electronic focus, frost filter, 0-100% linear LED dimmer, variable speed shutter/strobe. It’s fast and quiet moving head with smooth PAN/TILT movement.

The MINISPOT 250Z is perfect option for large scale live concerts, TV productions, road shows, clubs, etc.

Features:

> A 250W white LED lamp,7500K
> 50000 hours life span and low power consumption
> 8/16 bit smooth and precise resolution for PAN/TILT movement
> 540°/630°/ 360°PAN and 270°/180°/90° TILT movement
> Scan position memory, auto reposition after unexpected movement 13°Beam angle
> Specific high precision glass optic system
> 1 Rotating gobo wheel with 6 rotatable and interchangeable gobos plus open(3 glass gobos and 3 metal

gobos with speed adjustable, stream effect, dithering effect and rotatable clockwise or anticlockwise
> Gobo indexing available
> Gobo size 22. 9mm(external dimensions)/16mm(inner dimensions)
> 1 Static gobo wheel with 8 gobos plus open
> Gobo overlay (gobo morphing)
> 1 Color wheel with 7 colors plus open (available for half color mode)
> Variable direction rainbow effect with speed adjustable
> Gobo time and color time controllable
> 2. 5M- 15M electric focus
> An effect wheel with 3- facet prism/linear prism/frost filter (hybrid effect for wash)with variable speed and direction
> 0-100% Smooth linear LED dimmer(2 dimmer modes)
> 25T/sec high speed LED shutter/strobe effect with variable speed
> Preset variable/random strobe and dimming pulse effect
> 14/16/16/18 DMX channels USITT DMX-512 (Vector mode 18CH)
> DMX512, master- slave, and sound activated controllable or auto operation(7 built- in programs)
> DMX recorder and edit function integrated
> Sound control with sensitivity adjustment
> 2. 4" TFT LCD display (320*240pix) with 4 control buttons
> 180°Reversible for LCD display
> LCD display switch-off automatically after 60 seconds
> DMX signal monitoring indicator available
> Lower noise and efficient FAN cooling system
> Efficient low noise self adjusting fan cooling system
> Constant temperature readout and management function
> Over heat protection management
> Powercon IN/OUT with power switch and fuse
> 3- Pin DMX connectors IN/OUT
> DB rating@1M=54. 18dB
> IP20 protection rating
> -35°C to 45°C ambient temperature
> 2*1/4 turn fastening Omega Clamps ( Adaptable vertically and horizontally)
> 1*Safety attachment point
> CE (EMC/LVD) and RoHS certified

Specifications:
