DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V
DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V
DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V
DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V
Specifications
Brand Name :
HJY
Model Number :
P10 DIP
Certification :
FCC
Place of Origin :
Shenzhen
MOQ :
1 square
Price :
530-600 us doller
Payment Terms :
T/T
Supply Ability :
1000
Delivery Time :
15 work day
Packaging Details :
wooden case
Color :
R G B
Pixel pitch :
10mm
Pixel configuration :
1R1G1B
Led specification :
346
Best viewing angle :
10-300m
Thickness :
15cm can adjustable
Description

P10 outdoor dip

1. Paremeter

Description Technical parameter
Unit module Module size 160*160mm 320*160mm
Pixel pitch 10mm
Pixel density 10000dots/m2
Pixel configuration 1R1G1B
Led specification 346
Pixel resolution W:16dots*H:16dots W:32dots*H:16dots
Cabinet Dimension 960mm*960mm*150mm
Quantities of module 36pcs
Power supply 4pcs
Thermal discharge Fan*2pcs
Total weight 45kg
Best viewing angle 10-300m
Temperature Storage: -35°C~+85°C
Working: -35°C~+85°C
Thickness 15cm can adjustable
Remarks: cabinet size can changed, upon project need.
Power Working voltage AC220V/110V±10%
Average power consumption 600W
Max. Power consumption ≤1000W/sqm
Current ≤20mA(single LED)
Control system CPU Pentium4 or above
Operating system WIN98/2000/NT/XP
Control method Synchronization
Main technical parameter Driving device 1/4 scanning
Drive type Constant Current driver IC
Refresh frequency ≥400Hz
Grey scale/colors 256 levels of each color(R/G/B)/16.7M color
Brightness of white balance More than 7000cd/sqm
Brightness adjustment 256 levels of each color(R/G/B)by software
Operating ambient humidity 10%--95%
Video signal PAL/NTSC
Control system DVI display card+full color controller card
MTBF ≥10,000hours
Life span ≥100,000hours
Flatness Tolerance of interpixel ≤0.3mm
Tolerance of modules clearance≤0.6mm
Power switch Automatic switch
Display mode 1024*768
Communication distance

Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.

Multi-mode Optic fiber transmission distance 500m;Single-mode optic fiber transmission distance 10KM
Software LED media player

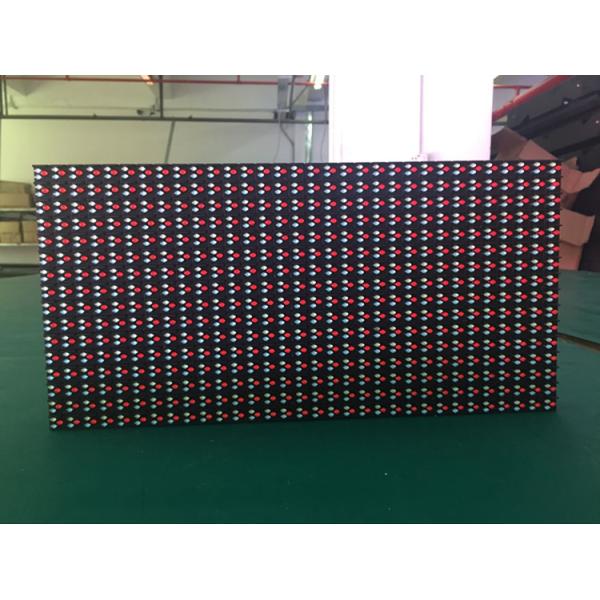

2. Module picture

DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V

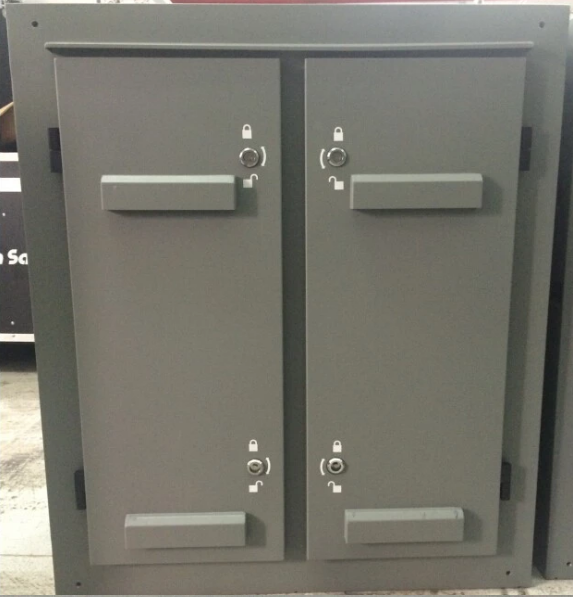

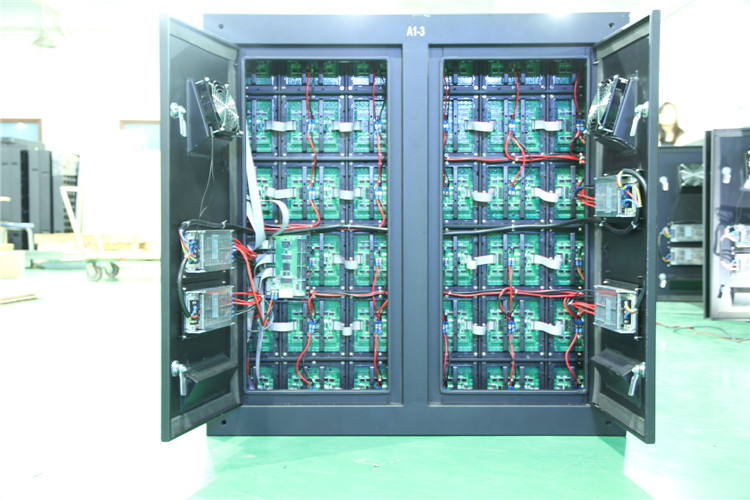

3. Enclosure picture

DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110VDIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V

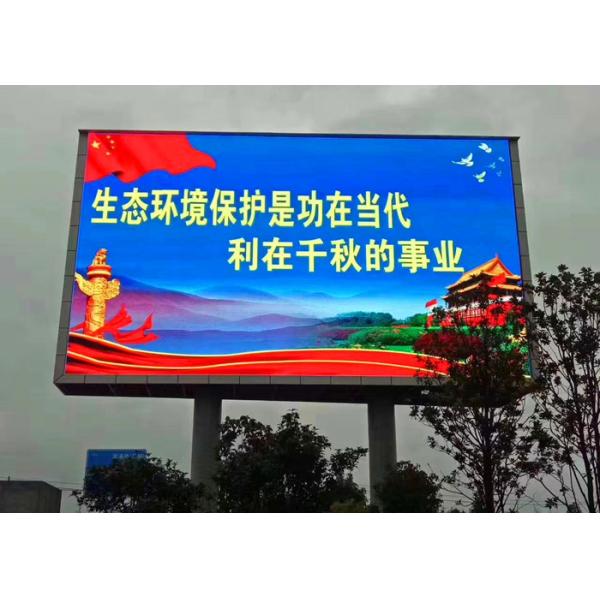

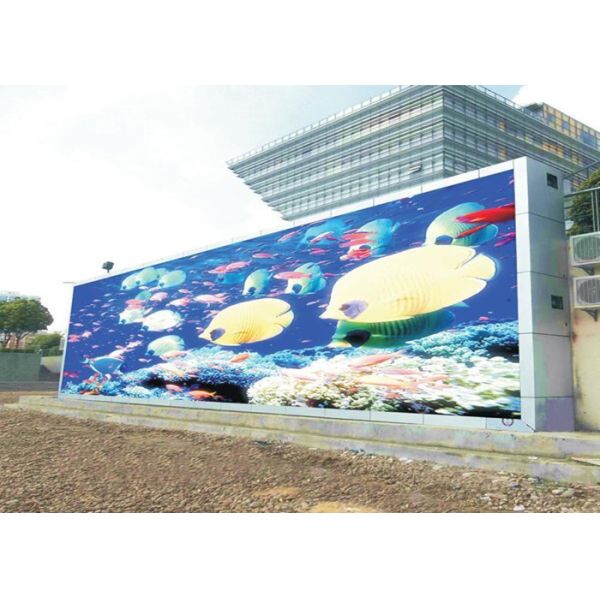

4. Screen picture

DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110VDIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V

5. Factory will figure

DIP Highlighted Outdoor Fixed LED Display 10mm Pixel Pitch 1R1G1B AC220V/110V6. Contact us

Shenzhen hao jingyuan photoelectric co.,LTD

WhatsAPP: 0086 19928766899

Contact person : Mr Mark

Address: 2F,4th Building,Fu hong Industrial Area,Fengtang Road,Fuyong Town,Baoan District,Shenzhen China

Web site: www.hjyled.com
