P8 Outdoor Rental LED Display 7000nits Stage Background LED Screen IP65 Grade
P8 Outdoor Rental LED Display 7000nits Stage Background LED Screen IP65 Grade
P8 Outdoor Rental LED Display 7000nits Stage Background LED Screen IP65 Grade
P8 Outdoor Rental LED Display 7000nits Stage Background LED Screen IP65 Grade
Specifications
Brand Name :
HJY
Model Number :
P8
Certification :
CE FCC
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000sqm/month
Delivery Time :
15-20 days after receiving deposit
Packaging Details :
Wooden case
Pixel pitch :
PH 8mm
Pixel configuration :
3535
Module size :
256mmx128mm
Module resolution :
32x16dot
Protection grade :
IP65
Warranty :
2 years
Description

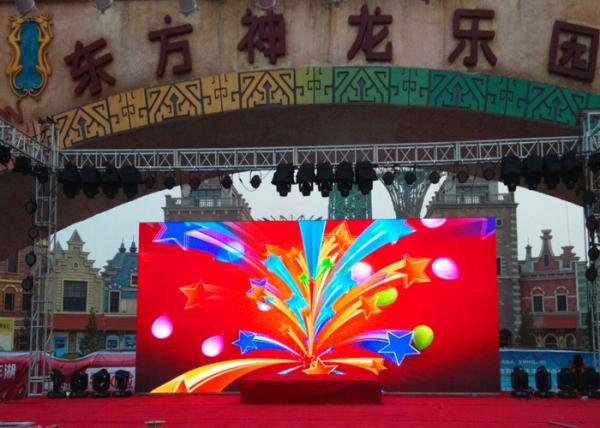

P8 outdoor rental led display 7000nits stage background led display big

screen

Item

P8 LED Display

Model Number

P8

Pixel Pitch

8mm

Pixel Density(dots/m²)

15625

Pixel Configuration

3 IN 1

LED Type

SMD3535

Module size(mm)

256*128

Module Resolution(dots)

32*16

Min.Viewing Distance(m)

≥8

Brightness(cd/m²)

6000

Viewing Angle(degree)

≤120°

Average Power Consumption(w/m²)

500-850

Scan Mode

1/4

Protection Level

IP65

Cabinet Size(mm)

1024*1024mm

Color Temperature

The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC220 V/50HZ or AC 110V/60HZ

Refresh Rate

LED screen refresh frame frequency recommended is no less than 1200HZ(recommended)

Color

64g color(on the condition of 4096 gray scale)

Horizontal/Vertical viewing angle

<120°

Gray Scale

Recommended 14BIT

Effective Communication Distance(without relay)

Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.



FAQ

1. What is the life time for a LED screen?
The life time for the LED screen is basically over 100,000 hours, but it depends how the client is taking care of his LED screen and how it is used. When a LED Screens´ life time gets to 100,000 hours, it means that the brightness of the LED lamps of the LED screen is about 50% off as compared to the original brightness depending on several factors that will enlarge a LED screen´s life time or reach 100,000 hours.
2. How to protect power supply?
Electrical peaks can put more force on the electrical components which will decrease life time .
it is wise to install a protection (voltage stabilizer) that can control the peaks.
3. How to main the led screen?
The soldering of the LED chips can dry out and break which require changing often components such as LED modules and receiving card .
