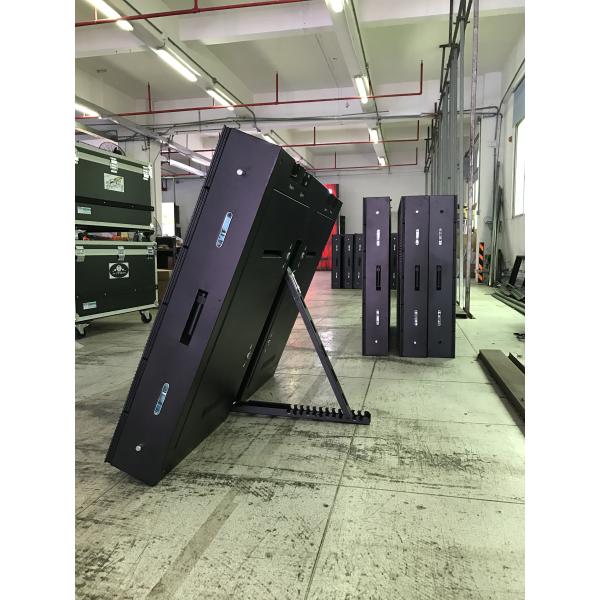

Football Match Stadium LED Screens P10 Outdoor High Brightness Light Cabinet
Football Match Stadium LED Screens P10 Outdoor High Brightness Light Cabinet
Football Match Stadium LED Screens P10 Outdoor High Brightness Light Cabinet
Football Match Stadium LED Screens P10 Outdoor High Brightness Light Cabinet
Specifications
Brand Name :
HJY
Model Number :
P10
Certification :
CE FCC
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union, Mo1000 square meter one monthneyGram
Supply Ability :
1000 square meter one month
Delivery Time :
15-20 days after receiving deposit
Packaging Details :
flight case
LED :
SMD3535
Color :
full color
Led module size :
320*160mm
Module resolution :
32*16dot
Brightness :
7000nits
Warranty :
2 years
Description

football match led display P10 outdoor high brightness light cabinet stadium led

display

Product Specification:

configure Specification Parameter
Pixel Dot Pitch 10mm
Pixel Configure 1R1G1B
Pixel/SQM 10000Pixel/m²
LED Lamp LED TYPE SMD3535
LED Brand NATIONSTAR OR KINGLIGHT
Wavelength & Brightness Red:620-622.5nm;>900mcdGreen:520-522.5nm;>1800mcd Blue:465-467.5nm;>300mcd
Module Module Resolution 32Pixel * 16Pixel
Drive Mode Constant Current Drive
Scanning Method 1/2Scanning
Module Dimension 320mm(Width)x160mm(Height)
Drive IC MBI5124
LED & Drive Composition Light-Drive Separation
Refresh Rate >1500HZ
Cabinet Cabinet Thickness 150mm
Cabinet Construction Normal Standard Cabinet
Cabinet Assembly Connecting Sheet
Cabinet Color(Front/Back) Anodized Blue
Aviation Plug wp20
Maintenance Mode Back Maintenance
Cabinet Material aluminum
Cabinet Dimension 960X960X150mm
Power Supply China Power Supply
LED Screen Viewing Angle Horizontal : 110±10°Vertical: 60±10°
Brightness >7000cd/m²
Best Viewing Distance 10~50m
LED Life 100,000Hours
Maximum Power 750w/m²
Average Power 300w/m²
Input Voltage 220V±10% Or 110V±10%
Operation Environment Temperature: —20°C~60°C; Humidity: 10%~95%
Protection Grade IP 65
LED Screen Weight 45kg/m2

1. We warranty our football match led display P10 outdoor high brightness light cabinet stadium led display for TWO years.

2. After warranty , we also can offer you the parts for replacement at our bottom price.

3. After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
