Waterproof Mobile Football Stadium LED Display P16 7000nits High Brightness
Waterproof Mobile Football Stadium LED Display P16 7000nits High Brightness
Waterproof Mobile Football Stadium LED Display P16 7000nits High Brightness
Waterproof Mobile Football Stadium LED Display P16 7000nits High Brightness
Specifications
Brand Name :
HJY
Model Number :
P16
Certification :
CE FCC
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000sqm per month
Delivery Time :
15-20 days
Packaging Details :
wooden case
Pixels :
16mm
Module Size :
256mm*256mm
Cabinet Size :
1024mm*1024mm
Brightness :
8000 cd/sqm
LED Chip :
Epistar
Life span :
100000hours
Description

waterproof mobile stadium led screens P16 7000nits high brightness led

display

Product Parameters
Item
Model Number P16
Pixel Pitch 16mm
Pixel Density(dots/m²) 3906dot
Pixel Configuration 1R1G1B
LED Type DIP346
Module size(mm) 256*256
Module Resolution(dots) 16*16
Min.Viewing Distance(m) ≥16
Brightness(cd/m²) ≥7000
Viewing Angle(degree) ≤120°
Average Power Consumption(w/m²) 450-950
Scan Mode STATIC
Protection Level IP65
Cabinet Size(mm) 1024*1024
Color Temperature The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements
Input Voltage AC220 V/50HZ or AC 110V/60HZ
Refresh Rate LED screen refresh frame frequency recommended is no less than 1200HZ(recommended)
Color 64g color(on the condition of 4096 gray scale)
Horizontal/Vertical viewing angle <120°
Gray Scale Recommended 14BIT
Effective Communication Distance(without relay)

Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.
FAQ

What is DIP?And what is SMD?
DIP means double in line package,we call led lamp.SMD means surface mounted device.
2. What is the delivery time of outdoor full color display?

Usually 20 days after we get the deposit.

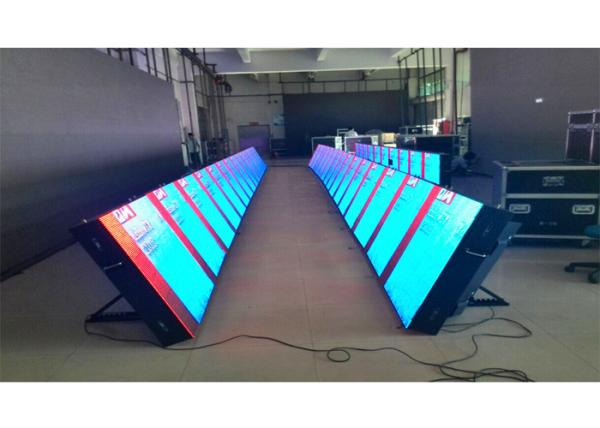

Product Show

Waterproof Mobile Football Stadium LED Display P16 7000nits High Brightness
