Wedding Room Indoor Stage Rental LED Display P4 Full Color 4mm Pixel Pitch
Wedding Room Indoor Stage Rental LED Display P4 Full Color 4mm Pixel Pitch
Specifications
Brand Name :
HJY
Model Number :
P4
Certification :
CE FCC
Place of Origin :
China
MOQ :
1sqm
Price :
Negoniate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000sqm per month
Delivery Time :
15-20days after receiving deposit
Packaging Details :
wooden case or flight case
Pixel pitch :
4mm
Brightness :
1200cd/sqm
Cabinet size :
512*512mm
Cabinet material :
Die-casting alum
Input voltage :
220/110V
Control system :
Linsn or Nova
Description

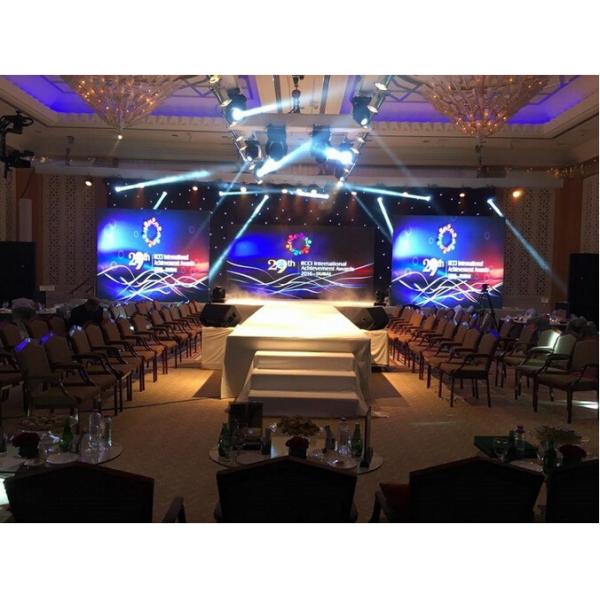

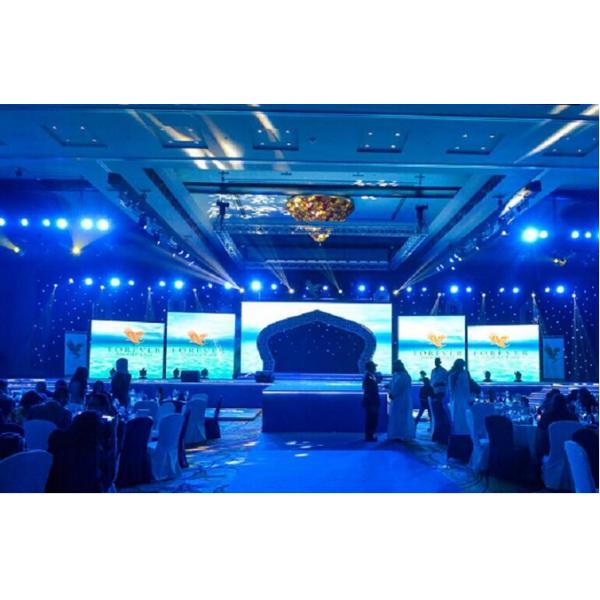

Wedding room use Indoor Stage Rental LED Display P4 full color led sign

Features of full color rental screen:


1, High accuracy, good intensity, good flatness with die-casting aluminum cabinet.


2, With fast lock, easily for seamless splice and dismantle.


3, Lightweight which very convenient to take for different kinds of show usage.


4, High refresh and brightness, could be adjusted according to your needs.


5, Front and rear service are available.


6, Wall-mounted, hoisting, stacking supported.


7, Wide viewing angle.


8, CE, RoHS, EMC approval.

Pixel

Dot Pitch

4mm

Pixel Configure

1R1G1B

Pixel/SQM

62500Pixel/m²

Led lamp

LED TYPE

SMD 2121

Chip Brand

EPISTAR

Brightness

>=2000cd/m²

Module

Module Resolution

64dots(W)*32 dots(H)

Drive Mode

Constant drive (MBI5124/5020)

Scanning Method

1/16 scan

Module Dimension

256mm(Width)x128mm(Height)

Port type

HUB75

LED & Drive Composition

Light-Drive Combo

Refresh Rate

>1000HZ

Cabinet

Cabinet Thickness

85mm

Cabinet Construction

Normal Standard Cabinet

Cabinet Assembly

Connecting Sheet

Cabinet Color(Front/Back)

Black

Aviation Plug

wp20

Maintenance Mode

Back Maintenance

Cabinet Material

Spcc1.

Cabinet Dimension

512X512 mm

Module QTY

5(Width)X5(Height)

Power Supply

China Power Supply

LED screen

Viewing Angle

Horizontal : 120 ° Vertical: 120 °

Brightness

>2000cd/m²

Best Viewing Distance

4~20m

LED Life

100,000Hours

Maximum Power

1200w/m²

Average Power

400w/m²

Input Voltage

AC220V±10%

Operation Environment

Temperature: -20°C~60°C; Humidity: 10%~95%

Protection Grade

IP 30

LED Screen Weight

30kg/m2

Advantages

Ultra-light---lighter 40% than aluminum die-csting cabinet

Super slim---high-strength,more slim than aluminum in the design,thiner around 30%

Fast cooling---wxcellent heat dissipation perormance to protet the modular circuit

Anti-interference---special anti electromagnetic interference function

High strength---support the weight of 300kg through tension test,more strength than aluminum

Easy installation---installed by quick lock for 20s only

High precision---seamless splicing though CNC machining

High universality---can be processed according to module drawing,used for outdoor and indoor

Easy maintenance---can be maintained form front side

High cost-effective---large-scale production,complete production & supply chain

Cooperation Terms
1. Payment terms:30% T/T deposit, 70% T/T before shipment.
2. Delivery terms:FOB Shenzhen.
3. Lead time:12-15 working days after payment of deposit.

Warranty:
Warranty:3 years.
Within the warranty period, on the condition that all the goods are being used properly, if there is any problem with our goods, the customers can send the problem part back to us, we will fix the problem part, or replace the problem part with a new one, and then send it back to the customer, shipping cost covered by GCL.

Technical Support
We provide all kinds of technology training for free, including the operation and maintenance training of the LED screens in our factory. All operation manuals, software, test reports , CAD drawings of the steel structure and instruction of installing the cabinets and connecting the signal/power cables can be provided for free. If required, GCL can send an engineer team to the country of the customer to instruct and help the installation.

Others
1. Free spare parts:
A certain amount of spare parts will be provided for free, spare parts including module, power cable, signal cable, LED diod , IC, module mask, power supply, receiving card, etc.
2. Standard control system:Novastar
