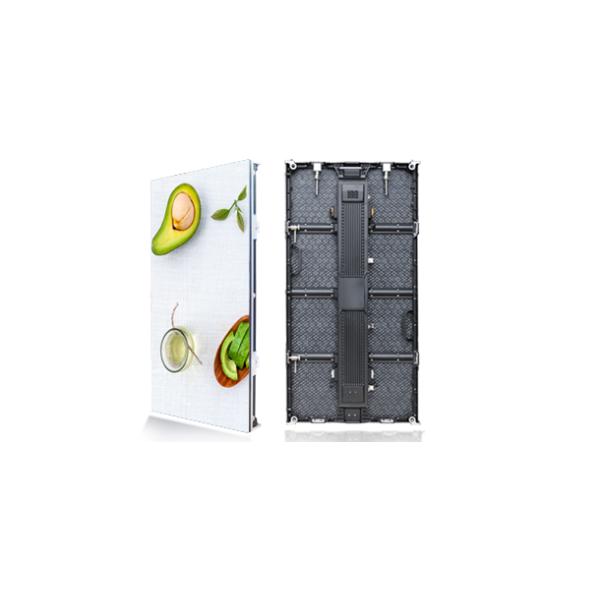

P4.81 Interior Stage Rental LED Display 500*1000mm Cabinet Size Curved Shape
P4.81 Interior Stage Rental LED Display 500*1000mm Cabinet Size Curved Shape
P4.81 Interior Stage Rental LED Display 500*1000mm Cabinet Size Curved Shape
P4.81 Interior Stage Rental LED Display 500*1000mm Cabinet Size Curved Shape
Specifications
Brand Name :
HJY
Model Number :
P4.81
Certification :
CE FCC
Place of Origin :
China
MOQ :
Negoniate
Price :
Negoniate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000 sqm per month
Delivery Time :
15-20days after receiving deposit
Packaging Details :
flight case
Cabinet size :
500*1000mm
Cabinet resolution :
104*208dots
Cabinet weight :
13kg
Cabinet material :
Die-casting Aluminum
LED brand :
Kinglight
IC :
MBI5124
Description

P4.81 indoor stage rental led display 500*1000mm curve led display for

stage

Item

Specification

Pixel

Physical pixel pitch: 4.81mm

Pixel configuration: 1R1PG1PB

Module

Module resolution: 52 x 52pixel

Module size: 250 x 250mm

Cabinet

Cabinet resolution:104x208 pixel

Cabinet size:500 x 1000 x88mm

Cabinet :21632pixels

Module Qty:8pcs=2(W)x4(H)

Material: Die Casting Aluminum

Weight: 16Kg

Average power: 150W

Max power consumption: 350W

Electricity

parameter

Brightness: 1000 - 1200 nits

Brightness adjusted: 100 grade by software, or by Auto-optic induced

Color processing: 16bit

Display color: 280 trillion

Color temperature(k): 5000 — 9500 (choice by user)

Physical density:43264pixels/sqm

Whole display flatness: ≤ 1mm juncture

Best view distance: ≥ 5m

Best view angle: Horizontal ±80°, Vertical ±80°

Storage temperature: -35℃ ~ +85℃

Working temperature: -20℃ ~ +50℃

Driving method: Constant driving current Scan: 1/13

Refresh frequency: ≥ 1600Hz

Frame rate: ≥ 60Hz

Humidity(RH): ≤ 90~95%

Protection grade: IP54

Working Voltage: DC 5V

Power supply: AC 110 / 220V, 50/60Hz

Average power consumption:300w/sqm

Max power consumption: 650w/sqm

MTBF: 10, 000 hours

Screen lifetime: 100, 000 hours

Control

system

Signal interface: DVI

Communication distance: Internet cable: ≤120m Fiber cable: 1000m

Signal transfer mode: Pixels to pixels display synchronized

FAQ

Q1: Where is the led display used for?
A1: indoor & rental use. Widely used for backdrop of staging event, rental business, liveshow, concert, etc.

Q2: what is the Delivery guarantee of led display?

A2: Guarantee time: 2 years. Within 2 years, if any part failed, we send new parts or repair for free, we will undertake shipping cost from your city to China and from China to your city. After 2 years, we only charge cost price for parts and repairements, and you need to pay shipping cost go and back.

Q3: What's the controlling system of led display?

A3: Control system could be Linsn, Nova-star, Color light...Usually client use Linsn for fixed installation led screens, and Nova-star system for rental screens.
