Square Full Color Outdoor Advertising LED Display , P6 LED Video Display Panel
Square Full Color Outdoor Advertising LED Display , P6 LED Video Display Panel
Specifications
Brand Name :
HJY
Model Number :
P6
Certification :
CE FCC
Place of Origin :
China
MOQ :
1sqm
Price :
Negoniate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000sqm per month
Delivery Time :
15-20days after receiving deposit
Packaging Details :
wooden case or flight case
Tube chip color :
Full color
LED chip :
Epistar/Kinglight
Power supply :
Meanwell/G-energy
IC :
MBI5124
Driving mode :
1/8 scan
Control system :
Linsn or nova
Module size :
192*192mm
Cabinet size :
960*960mm
Warranty :
2 years
Life span :
100000hours
Description

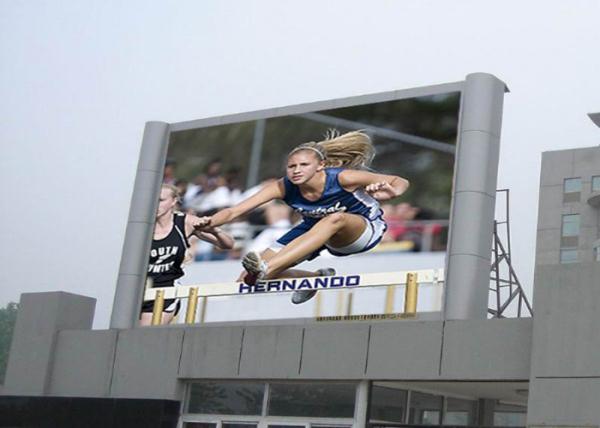

Large square Outdoro Advertising Display P6 waterproof iron led display

screen

Features

1) To ensure the clearness of graphics and texts, as to the indoor display within 100sqm,the same level of red,green and blue LED lamps with the same brightness( ±10%)and wave length( ±2.5nm) are chosen.

2) The glue we apply to encapsulate the module surface is imported from Sourth Korea. It decreases the effect of background color. As a result of the full absorption of thr LED refraction light,the display eliminate the urmbra and ghosting during broadcast.

3) We apply sophisticated technology of plastic closure,each module of the horizontal height less than 0.1mm.Therefore,our displays have good color uniformities ,homogeneity,which is unique in the LED display field.

4) Module design makes it convenient to assemble and also ensure that the cabinets are nice-looking.

5) Maitenance difficulties are slolved and it truely realizes three-dimensional and dot-to-dot maiterance.

6) The price is competitive among the same products in market and the quality is assured.

Module constitute

Pixel structure

Table three LED

LED Specification

SMD3535

Pitch composing

1R1G1B

Pixel distance

6mm

Module resolution

32*32dot

Module size

192*192mm

Pixel density

27777dots

Peak power consumption

27.5W

Module weight

0.389kg

Cabinet parameter

Cabinet type

Waterproof cabinet

Cabinet dimension

960*960*150mm

Cabinet resolution

160*160dots

Cabinet area

0.9216㎡

Optical parameter

White balance brightness

6500cd/㎡

Best visual distance

≥6m

Horizontal viewing angle

140°

Vertical viewing angle

120°

Luminance uniformity

≥95%

Color uniformity

±0.004Cx,Cy

Contrast

4000:1

Electrical parameter

Maximum power

746W/㎡

Average power

224W/㎡

Input voltage

AC220V(50Hz)

Output voltage

DC 5V

1. What is the life time for a LED screen?

The life time for the LED screen is basically over 100,000 hours, but it depends how the client is taking care of his LED screen and how it is used. When a LED Screens´ life time gets to 100,000 hours, it means that the brightness of the LED lamps of the LED screen is about 50% off as compared to the original brightness depending on several factors that will enlarge a LED screen´s life time or reach 100,000 hours.

2. How to protect power supply?

Electrical peaks can put more force on the electrical components which will decrease life time .
it is wise to install a protection (voltage stabilizer) that can control the peaks.


3. How to main the led screen?

The soldering of the LED chips can dry out and break which require changing often components such as LED modules and receiving card .


4. What is the return policy?


If the module died exceed 1%,we can resend you the new one.
