Specifications
Brand Name :
HJY
Model Number :
P8
Certification :
CE FCC
Place of Origin :
China
MOQ :
1sqm
Price :
Negoniate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000 sqm per month
Delivery Time :
15-20days after receiving deposit
Packaging Details :
Wooden case or flight case
LED module size :
256*128mm
Module resolution :
32*16dots
Cabinet size :
1024*768mm
Cabinet resolution :
128*96dots
Cabinet material :
Iron
Brightness :
6500cd/sqm
Driving mode :
1/4 scan
LED chip :
Epistar
Power consumption :
600w/sqm
Life span :
100000hours
Description

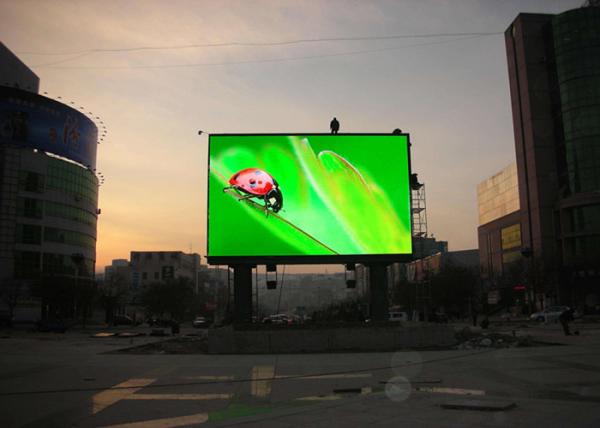

Low power consumption Outdoor Waterproof LED Advertising Display P8 led wall

Product features

1. Equipped with intelligent lighting equipment and adaptive adjustment of environment, will not affect by the ambient light strong display effect and environmental protection and energy saving for Rental LED Display

2. Any direction, any size, any shape can be jointed presenting perfect seamless visual effect;


3. Leasing LED video screen with die-casting aluminum frame design, screen is super light and thin, saving space and costs, fashionable and beautiful;Adopting die-casting aluminum improves the heat dispersion, prolonging the lifetime of the led display.

No

Item

Parameter

1

Standard Caninet Size

1024mm*1024mm*130mm

2

Cabinet Weight

11.85KGS

3

Brightness/Adjustment

≥5600cd/m², Level 16- Automatic / Level 100-Manual operation

4

View Angle

≥120°(Vertical),≥120°(Horizontal)

5

Best View Distance

10-100m

6

Grey Scale

Within 65536 Step

7

Frame Frequency

≥60Hz

8

Refresh Rate

≥1560Hz

9

Signal Input Source

Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI

10

Scan Mode

1/4

11

Drive IC

5020

12

Module Qty / M2

19.5

13

Display Color Qty

16777216

14

Continuous Working Time

>24(Hrs)

15

Screen Lifespan

>100,000(Hrs)

16

MTBF

>5000(Hrs)

17

Max. power consumption

720W/㎡

18

Ave. power consumption

250W/㎡

19

Out of control pixel rate

≥3/10,000(discrete distribution)

20

Control Distance

100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)

21

Flatness

Screen Surface≤0.5mm,Pixel Pitch≤0.3mm

22

Operation Temperature

-10℃~+50℃

23

Working Humidity

10%~98%RH

24

Storage Temperature

-40℃~+85℃

25

Software Connection

Standard Computer Connection,Compatiable With Windows,Unix,Novell

26

protection system

Overtemperature/overload/power/image compensation/nonlinear correction

27

Working Valtage

200~240 V

28

Dielectric Strength

50HZ/1500V(AC RMS)/1min

29

Temperature Rise

Metal≤40K,Insulation≤65K , After Heat Balance

30

IP Grade

IP65

31

Computer display mode

1024*768

33

Media Player

LED Pressional Media Player

Our service

1. We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.


2. Our products are exported to foreign countries and regions.


3. Our professional team will constantly communicate with you,to establish a good working relationship.We aontact you by e-mail and phone,always prepared to help you out.

FAQ

1. What is DIP?And what is SMD?
DIP means double in line package,we call led lamp.SMD means surface mounted device.


2. What is the delivery time of outdoor full color display?

Usually 20 days after we get the money.


3. Outdoor screen can't use surface mount LED?
We have outdoor SMD display now.We solve the problem of the brightness and water proof.We use SMD5050 led chip.Filling the glue on the surface,use IP65 cabinet.


4. Different material different price and also different quality,effect?

Here is the item you need to checka.LED,brand,size.Opto?

Silan?Cree?Nichia?Epistar?12mil?13mil?We usually use opto red 9mil and silan 12mil chip.
b. IC,MBI5024?MBI5026?ZQ7905?LXY28162?Or other IC you need.We usually use MBI5024
c. cabinet

Outdoor Waterproof LED Advertising Display P8 LED Screen Wall Low Power Consumption
