Mobile Trailer Mounted LED Screen Car Advertising Video LED Display 8mm Pixel Pitch
Mobile Trailer Mounted LED Screen Car Advertising Video LED Display 8mm Pixel Pitch
Mobile Trailer Mounted LED Screen Car Advertising Video LED Display 8mm Pixel Pitch
Mobile Trailer Mounted LED Screen Car Advertising Video LED Display 8mm Pixel Pitch
Specifications
Brand Name :
HJY
Model Number :
P8
Certification :
CE FCC
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000sqm/month
Delivery Time :
15-20 days after receiving deposit
Packaging Details :
Wooden case
Pixel pitch :
8mm
Pixel configuration :
3535SMD
Module size :
256mmx128mm
Module resolution :
32x16dot
Protection grade :
IP65
Operating Environment Temperature :
-20°C—65°C Optional
Description

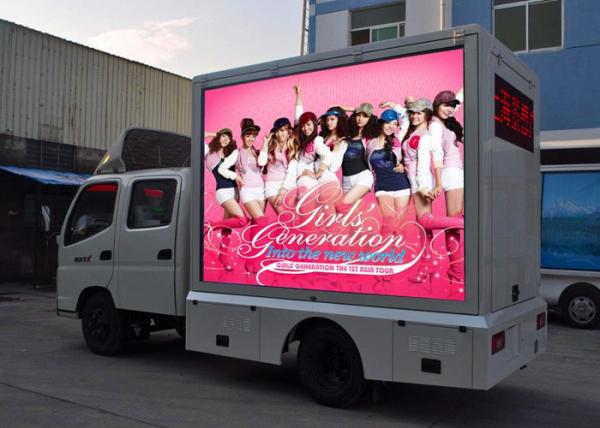

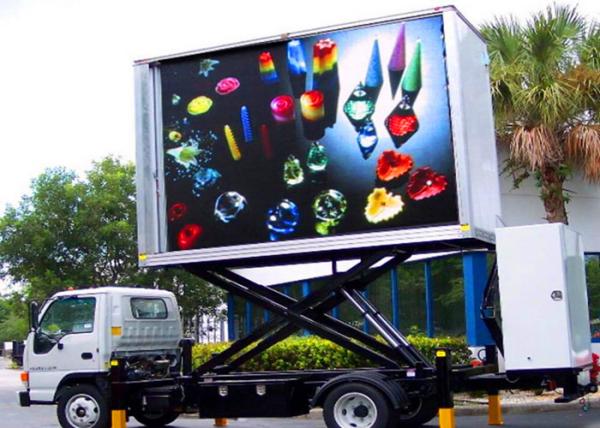

P8 outdoor led truck display mobile car advertising video led display

Product Parameters
No
Item
Parameter
1
Pixel Pitch
8mm
2
Pixel Configuration
1R1G1B / R:G:B=3:6:1
3
LED Lamp
Full color
4
Density
15625dot/m2
5
Module Size
256*128mm
6
Module Pixel
32*16=512dot
7
Module Thickness
17mm
8
Module Weight
395g
9
Module Power
≤37W
10
Drive Valtage
DC5V
11
Module Electric Current
6.5-7.4A
12
PortType
HUB-75

Screen Parameter

No
Item
Parameter
1
Standard Caninet Size
1024mm*1024mm*150mm
2
Cabinet Weight
20KGS
3
Brightness/Adjustment
≥6000cd/m², Level 16- Automatic / Level 100-Manual operation
4
View Angle
≥120°(Vertical),≥120°(Horizontal)
5
Best View Distance
8-100m
6
Grey Scale
Within 65536 Step
7
Frame Frequency
≥60Hz
8
Refresh Rate
≥1560Hz
9
Signal Input Source
Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI
10
Scan Mode
1/4
11
Drive IC
5020
12
Module Qty / M2
19.5
13
Display Color Qty
16777216
14
Continuous Working Time
>24(Hrs)
15
Screen Lifespan
>100,000(Hrs)
16
MTBF
>5000(Hrs)
17
Max. power consumption
720W/㎡
18
Ave. power consumption
250W/㎡
19
Out of control pixel rate
≥3/10,000(discrete distribution)
20
Control Distance
100M(Ethernet) 500M(Multi-fiber) 10KM(Sigle-fiber)
21
Flatness
Screen Surface≤0.5mm,Pixel Pitch≤0.3mm
22
Operation Temperature
-10℃～+50℃
23
Working Humidity
10%～98%RH
24
Storage Temperature
-40℃～+85℃
25
Software Connection
Standard Computer Connection,Compatiable With Windows,Unix,Novell
26
protection system
Overtemperature/overload/power/image compensation/nonlinear correction
27
Working Valtage
200~240 V
28
Dielectric Strength
50HZ/1500V(AC RMS)/1min
29
Temperature Rise
Metal≤40K,Insulation≤65K , After Heat Balance
30
IP Grade
IP65
31
Computer display mode
1024*768
33
Media Player
LED Pressional Media Player

Four main reasons why our customer choose us

1. We are led display manufacturer for many years, quality is guaranteed

2. Because we are factory, our price is 5%-10% lower than middleman and trafficker at same level

3. Professional sales and technical team of 15 people to ensure perfect results

4. Customer requirements are fundamental, we make different solutions accroding different requirements of customers
