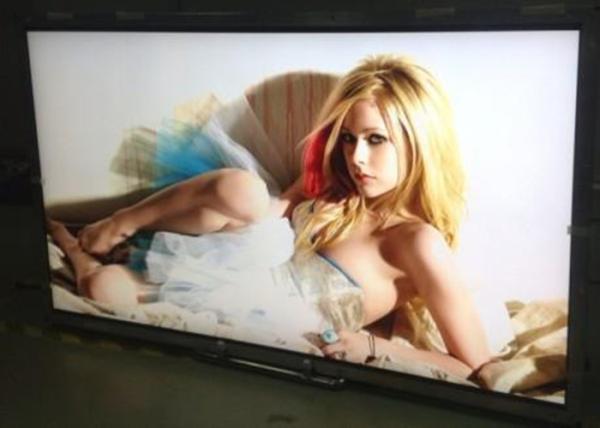

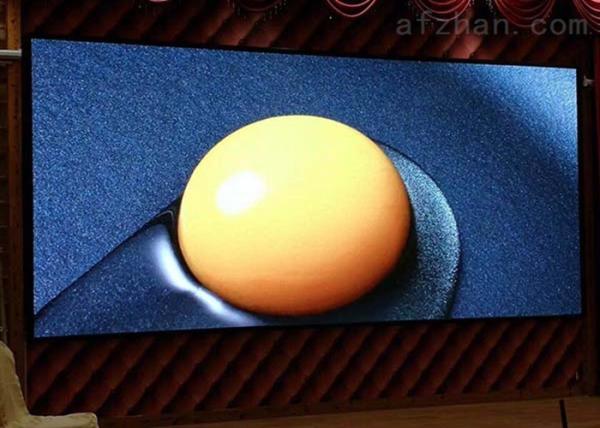

SMD Indoor HD LED Video Wall Display 2.5mm Pixel Pitch Lowest Consumption Power
SMD Indoor HD LED Video Wall Display 2.5mm Pixel Pitch Lowest Consumption Power
SMD Indoor HD LED Video Wall Display 2.5mm Pixel Pitch Lowest Consumption Power
SMD Indoor HD LED Video Wall Display 2.5mm Pixel Pitch Lowest Consumption Power
Specifications
Brand Name :
HJY
Model Number :
HJY-P2.5
Certification :
CE FCC
Place of Origin :
China
MOQ :
negotiate
Price :
negotiate
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000 square meter per month
Delivery Time :
15-20 days after receiving deposit
Packaging Details :
Wooden case or flight case
brightness :
1300cd
control way :
asynchronous synchronous
module life :
100000hours
pixel pitch :
2.5mm
pixel density :
160000dot/m2
module size :
160*160mm
Description

P2.5 SMD Indoor HD LED Video Wall Display with Lowest Consumption Power Viewing Screens Display

Pixel pitch

 2.5mm Pixel density 160000dot/㎡

Pixel configuration

 1red 1green 1blue LED specification SMD 3 IN 1 2121

MAX.Consumption

 600W/㎡ AVE. Consumption 200-300W/㎡

Driving mode

 1/32 Scan constant current Brightness 1300cd/㎡

Visual angle

 120°(H) 120°(V) Best viewing distance ≥2.5m

Module size

 160*160(mm) Module resolution 64*64(dot)

Display mode

 (Normal)1024*768,800*600 Voltage DC5V

Module life

 100,000hours Cray level 12 bit(4096)-16 bit(65536)

Humidity range

 10%-90%RH Temperature range -5℃ to +50℃

Video Frame Rate

 ≥150 fps Refresh frequency 1500 Hz

FAQ

Q1: What kind of LED display you provide?
A: We have indoor/outdoor/mobile LED display/stadium LED Display for you to choose.
Q2: Do you have other LED display series?
A: Yes. We manufacture many series,including indoor/outdoor/rental/trailer/taxi/bus led display
Q3: what is LED display, LED cabinet, LED module, LED module, LED pixels
A: The led display is the final completed product for advertising or information showing, it was composed by a certain rows and lines of unit LED cabinet; the unit LED cabinet were composed by module certain quantity of LED modules, each LED module were composed by 16*16/16*8/8*8/4*4/1*1 LED pixels; each LED pixels were composed by 2R1G1B/2R2G1B/2R1B/2R1G/2R/1R.
Q4: How to choose the rational product model of LED display?
A: Corresponding with LED display’s best viewing distance,size,application&installation,there will be many optional product modules fit for each specific projects ROI&budget is also very important factors.
