Specifications
Brand Name :
HYJ
Model Number :
P3
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
negotiable
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
1000sqm/month
Delivery Time :
15-20 work days
Packaging Details :
flight case for rental led display;wooden case for fixed led display
density :
111111dot/sqm
module size :
192*192mm
module resolution :
64*64dots
brightness :
1500cd/sqm
scan mode :
1/32 scan
warranty :
2years
waterproof :
IP34
pixel configuration :
1R1G1B
Description

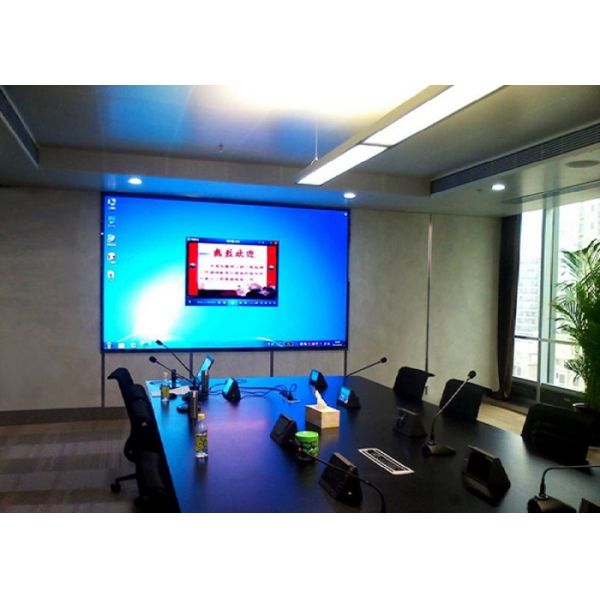

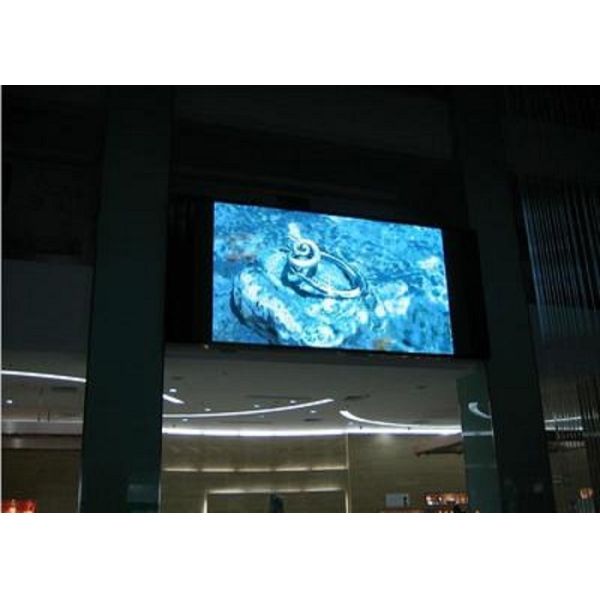

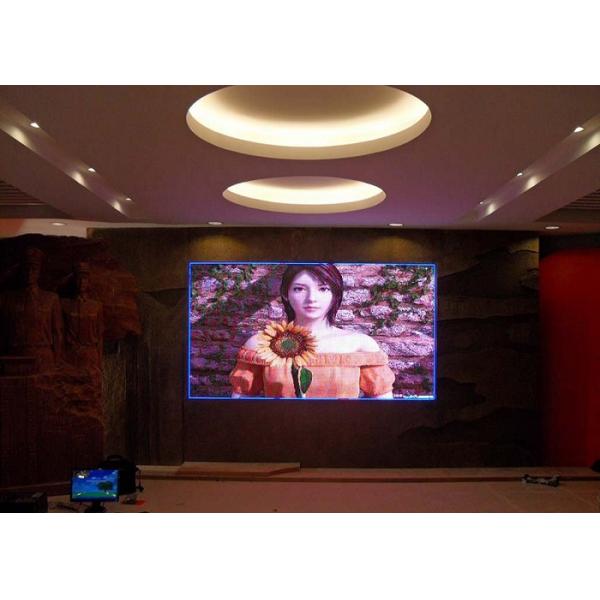

1500cd Brightness 1/32 scan indoor Advertising p3 fixed Led Display Screen 120/120 viewing angle

Item P3
Pixel pitch 3mm
Pixel Density 111111dot/m²
Pixel Configuration 1R1G1B
LED Specification SMD 3 IN 1 2121
MAX.Consumption 400W/m²
AVE.Consumption 120-200W/²
Driving Mode 1/32 scan constant current
Brightness 1500cd/m²
Visual Angle 120°(H)120°(V)
Module Size 192*192mm
Module Resolution 64*64dots
Voltage DC5V
Dimension Box 480*480
Contrast Ratio 6000:1
Frame Frequency 60Hz
Cabinet Material Die casting aluminium
Color Temperature 3200K-9600K(Adjustable)
Storage Temperature -20~60
Storage Humidity 10%~85%(No frosting)
Frame Frequency ≥60Hz
Refresh Rate ≥1920Hz

product description

1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.

2. Nice appearance and simple structures.


3. Jointed correctly, being installed & dismounted by one person without tool.


4. Humanized operating interface with breakdown indicator lights, easy to maintain.


5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.

6.Good heat emission, water proof and stable performance

7.Audio and video interface of the system can offer vivid, complete and high quality LED display to TV

broadcasting signal

8. High resolution and definition of screen image, clear and non-flash screen image

9.Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive

10.Low consumption, stable performance, highly durable

11.High brightness & broad viewing angle, brightness can be adjusted automatically or manually

12. 2 years warranty, easy to install & maintenance

13. CE, FCC.video and radio frequency input, special structure can be freely assembled

1500cd Brightness 1/32 scan  indoor Advertising p3  fixed Led Display Screen 120/120 viewing angle

1500cd Brightness 1/32 scan  indoor Advertising p3  fixed Led Display Screen 120/120 viewing angle

1500cd Brightness 1/32 scan  indoor Advertising p3  fixed Led Display Screen 120/120 viewing angle

our service

Pre-sale service:
1. Inquiries will be replied within 24 hours.
2. Market research and forecast for customer.
3. Provide unique and professional solutions based on customer's requirement.
4. Data sheet and samples offered.
5. Other requireed services such as special packing design, factory visiting and so on.

In-sale service:
1. Tracking producing procedures all the time.
2. Provide photos and videos as per customer's requirement during production.
3. Free spare parts provided.

After-sale service:
1. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
2. Warranty: 24 months.
3. Free technician training.
4. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
