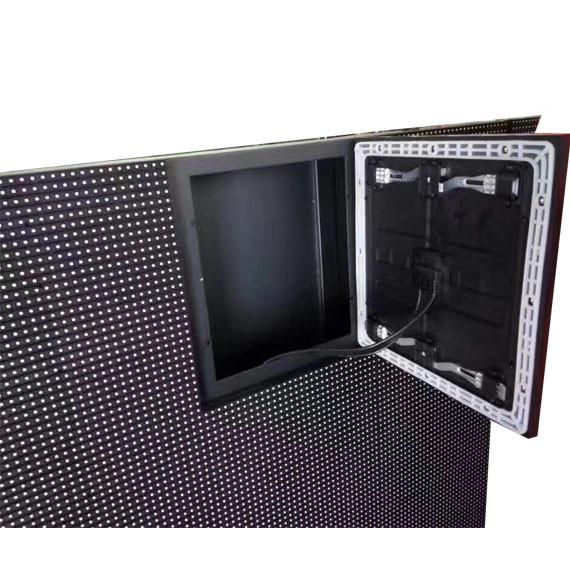

SMD 3535 1R1G1B Outdoor Fixed LED Display P8 Front Service 2 Years Warranty
SMD 3535 1R1G1B Outdoor Fixed LED Display P8 Front Service 2 Years Warranty
SMD 3535 1R1G1B Outdoor Fixed LED Display P8 Front Service 2 Years Warranty
SMD 3535 1R1G1B Outdoor Fixed LED Display P8 Front Service 2 Years Warranty
SMD 3535 1R1G1B Outdoor Fixed LED Display P8 Front Service 2 Years Warranty
SMD 3535 1R1G1B Outdoor Fixed LED Display P8 Front Service 2 Years Warranty
Specifications
Brand Name :
HJY
Model Number :
P8
Certification :
CE FCC
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000sqm/month
Delivery Time :
15-20 days
Packaging Details :
wooden case outdoor led display supplier
Usage :
Outdoor
Pixels :
8mm
Screen dimension :
Customized
Brightness :
6500nit
Warranty :
2 Years
Module size :
320*320mm
Led chip :
Nationstar outdoor led display supplier
Power supply :
G-energy
Description

outdoor led display supplier P8 front service fixed led display

Parameter:

Pixel pitch 8mm
Pixel configuration 1R1G1B 3535
LED type 3-in-1 SMD 3535
Module size 320*320mm
Module weight 2kg
Module resolution 40*40 dots
Cabinet size 1280*1280*200mm
Cabinet material iron cabinet
Cabinet weight 50kg
Ingress protection IP65

Pixel density

15625dots/m²

Brightness

≥6000 cd/m² outdoor led display supplier

Viewing angle

H≥160° V≥160°

Min.viewing distance

8m

Max.power consumption

1200W/m²

Avg.power consumption

600 W/m²

Working voltage

110~220VAC±15%

Interface

HUB75

Colors

16.7millon colors

Gray level

14-16bits

Frame frequency

≥60frames/s

Refresh rate

≥300Hz

MTBF

≥100000 hours

Lifespan

≥75000 hours

Protective function

Over-heat/Over-load /Power-down /Power-leakage

/Lightning-protection etc.

Operating temperature

-10℃ ~ +40℃

Operating humidity

10-80% no condensation

Storage temperature

-20℃ ~ +60℃

Storage humidity

10-85% no condensation

Video signal (with video processor)

AV, S-video, VGA, DVI, YPbPr, HDMI, SDI, DP

Color temperature

Adjustable by software

Brightness level

256 levels, automatic adjustment by software

Control way

Computer, video-synchronous, real-time, off-line, wireless, internet, etc.

1) New style module mast which can improve 10% brightness than normal module mask

and realize clearer images with a stronger feeling of layers

2) With Powerful and experienced engineers and technician team, with advanced production equipment, we control all steps from material to finished product,

from design to products that guarantee the quality and reliability.

3) Excellent quality that passes CE FCC with low power consumption, High

brightness, Long Lifespan, and easy installation

4) If you require for projects installation, our engineer can go to guide you on how to install the led screen.

5) Free training after order, and offer you the training course in detail.

6) The best competitive price at the market with the same even better quality.

SMD 3535 1R1G1B Outdoor Fixed LED Display P8 Front Service 2 Years WarrantySMD 3535 1R1G1B Outdoor Fixed LED Display P8 Front Service 2 Years WarrantySMD 3535 1R1G1B Outdoor Fixed LED Display P8 Front Service 2 Years Warranty
