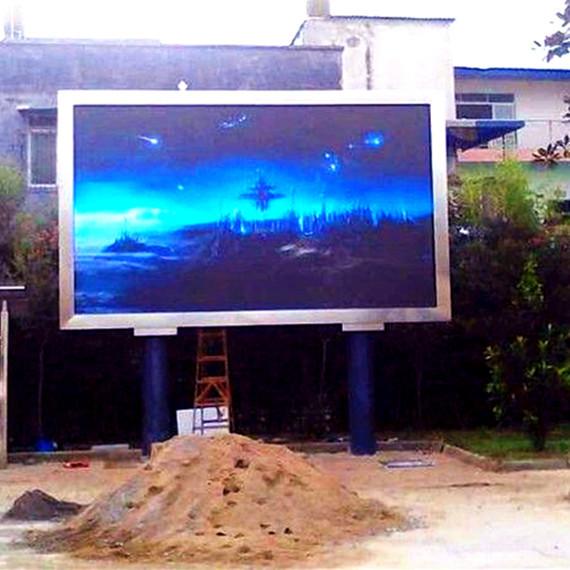

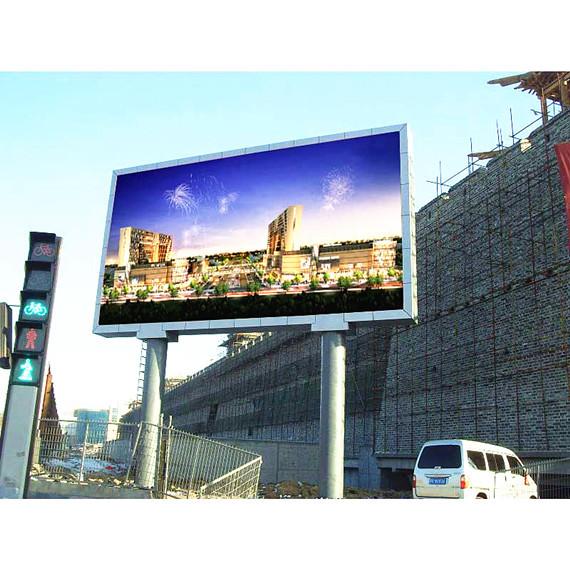

Epistar Chip Outdoor Led Advertising Screen P10 DIP346 8000 Nits High Brightness
Epistar Chip Outdoor Led Advertising Screen P10 DIP346 8000 Nits High Brightness
Epistar Chip Outdoor Led Advertising Screen P10 DIP346 8000 Nits High Brightness
Epistar Chip Outdoor Led Advertising Screen P10 DIP346 8000 Nits High Brightness
Epistar Chip Outdoor Led Advertising Screen P10 DIP346 8000 Nits High Brightness
Epistar Chip Outdoor Led Advertising Screen P10 DIP346 8000 Nits High Brightness
Specifications
Brand Name :
HJY
Model Number :
P10
Certification :
CE FCC
Place of Origin :
China
MOQ :
negotiation
Price :
negotiation
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
20000pcs/month
Delivery Time :
15-20 days
Packaging Details :
carton box or wooden case
Led :
DIP346
Led module size :
160*160mm/320*160mm
Chip :
Epistar
Brightness :
7000nits
Drive mode :
1/4scan
Life span :
100000hours
led display board price :
outdoor led advertising screen price
Warranty :
2 years led advertising display
Description

outdoor led advertising screen price P10 8000nits high brightness led display

Item

Outdoor full color DIP led p10 display

Model Number

P10

Pixel Pitch

10mm

Pixel Density(dots/m²)

10000

Pixel Configuration

1R1G1B

LED Type

DIP346

Module size(mm)

160*160mm/320*160mm

Module Resolution(dots)

16*16/32*16

Min.Viewing Distance(m)

≥10

Brightness(cd/m²)

≥7000

Viewing Angle(degree)

≤120°

Average Power Consumption(w/m²)

300-750w

Scan Mode

1/4

Protection Level

IP65

Cabinet Size(mm)

960*960mm

Color Temperature

The brightness of R.G.B.is adjustable according to software 100level;Color temperature is adjustable in terms of detailed requirements

Input Voltage

AC220 V/50HZ or AC 110V/60HZ

Refresh Rate

LED screen refresh frame frequency recommended is no less than 1200HZ(recommended)

Color

64g color(on the condition of 4096 gray scale)

Horizontal/Vertical viewing angle

<120°

Gray Scale

Recommended 14BIT

Effective Communication Distance(without relay)

Unshielded twisted-pair net line transmission distance is 100 meters,max transmission distance is 130 meters.


Epistar Chip Outdoor Led Advertising Screen P10 DIP346 8000 Nits High Brightness

Epistar Chip Outdoor Led Advertising Screen P10 DIP346 8000 Nits High BrightnessEpistar Chip Outdoor Led Advertising Screen P10 DIP346 8000 Nits High Brightness

1. The unit price depends on the quantity, we can offer you at a competitive price.


2. Your inquiry related to our products or prices will be replied in 24hrs.


3. Well-trained and experienced staffs to answer all your enquires in fluent English.


4. Distributorship are offered for your unique design and some our current models.


5. Protection of your sales area, ideas of design and all your private information.
