Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD
Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD
Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD
Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD
Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD
Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD
Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD
Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD
Specifications
Brand Name :
WUGANG
Model Number :
PPGI Corrugated Sheet
Certification :
MTC; SGS; ISO 9001
Place of Origin :
China
MOQ :
1 Ton
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, Xtransfer
Supply Ability :
80 tons per month
Delivery Time :
7-15 working days
Packaging Details :
waterproof paper and steel strip reinforcement,one package about 2 tons,Load in 20' or 40' GP
Name :
Galvanized Steel Coil
Standard :
AiSi, ASTM, bs, DIN, GB, JIS, Other
Grade :
SGCC SGDC DX51D+Z
Application :
building cladding
Material :
carbon
Hardness :
Mid Hard
Zinc coating :
40-275
Spangle :
Big Medium Small Zero
Description

Hot/Cold Rolled Ms Mill Steel Carbon Steel Plate Sheet ASTM GB JIS AISI DIN BS ISO RoHS Ibr Ship Container Coating Plate in Stock S235jr,S235j0 A36,Q235,Q235B

1. After heat treatment, the hardness and wear resistance can be improved. 2. The hardness is appropriate during annealing, and the machinability is good. 3. Its raw materials are very common, so it is easy to find, so the production cost is not high.

Product introduction:

Product Name

Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD
Standard ASTM
Grade SGCC SGCD DX51D+Z SGC440
SIZE Thickness 3-30 mm or as required
Width 1000-1500mm or as required
Length 1000mm-12000mm or as your request
Tolerance Thickness& Width:+/-0.02mm
Technique Hot Rolled/cold rolled
Surface 30-275g/m2,double side
Spangle Big spangle, normal spangle, small spangle, non-spangle
Delivery Time within 7-15 days after receive 30% deposit or depend on Quantity
Application Building , Corrugated sheet Roofing, electrical, Appliances, Automobile industry,Transport Packaging ,Machinery processing ,Interior decoration , Medical
Packing Seaworthy packaging: PVC+waterproof paper, seaworthy wooden packaging or as required

Chemical Composition:

Category Grade Chemical Composition,%,≤
hot dip galvanized For cold forming National sign C Si Mn P S Ti
DX51D+Z 0.12 0.5 0.6 0.1 0.045 0.3
DX52D+Z 0.12 0.5 0.6 0.1 0.045 0.3
DX53D+Z 0.12 0.5 0.6 0.1 0.045 0.3
DX54D+Z 0.12 0.5 0.6 0.1 0.045 0.3
DX56D+Z 0.12 0.5 0.6 0.1 0.045 0.3
DX57D+Z 0.12 0.5 0.6 0.1 0.045 0.3
For cold forming US grade CSA 0.1 0.6 0.03 0.035 0.025
CSB 0.02-0.15 0.6 0.03 0.035 0.025
CSC 0.08 0.6 0.1 0.035 0.025
FSA 0.1 0.5 0.02 0.035 0.025
FSB 0.02-0.08 0.5 0.02 0.03 0.025
DDS A 0.06 0.5 0.02 0.025 0.025
DDS B 0.02 0.5 0.1 0.025 0.15
EDDS 0.02 0.4 0.02 0.02 0.15
For cold forming Japanese grade SGCC 0.15 0.8 0.05 0.03
SGCD1 0.12 0.6 0.04 0.03
SGCD2 0.1 0.45 0.03 0.03
SGCD3 0.08 0.45 0.03 0.03
SGCD4 0.06 0.45 0.03 0.03
For structure Japanese grade SGC340 0.25 1.7 0.2 0.035
SGC400 0.25 1.7 0.2 0.035
SGC440 0.25 2 0.2 0.035
SGC490 0.3 2 0.2 0.035
SGC510 0.3 2.5 0.2 0.035
For structure National sign S220GD+Z 0.02 0.6 0.7 0.1 0.045
S250GD+Z 0.02 0.6 0.7 0.1 0.045
S280GD+Z 0.02 0.6 0.7 0.1 0.045
S320GD+Z 0.02 0.6 0.7 0.1 0.045
S350GD+Z 0.02 0.6 0.7 0.1 0.045
S550GD+Z 0.02 0.6 0.7 0.1 0.045
hot dip Galvalume For cold formingNational sign DX51D+AZ 0.12 0.5 0.6 0.1 0.045 0.3
DX52D+AZ 0.12 0.5 0.6 0.1 0.045 0.3
DX53D+AZ 0.12 0.5 0.6 0.1 0.045 0.3
DX54D+AZ 0.12 0.5 0.6 0.1 0.045 0.3
For structureNational sign S220GD+Z 0.02 0.6 0.7 0.1 0.045
S250GD+Z 0.02 0.6 0.7 0.1 0.045
S280GD+Z 0.02 0.6 0.7 0.1 0.045
S320GD+Z 0.02 0.6 0.7 0.1 0.045
S350GD+Z 0.02 0.6 0.7 0.1 0.045
S550GD+Z 0.02 0.6 0.7 0.1 0.045

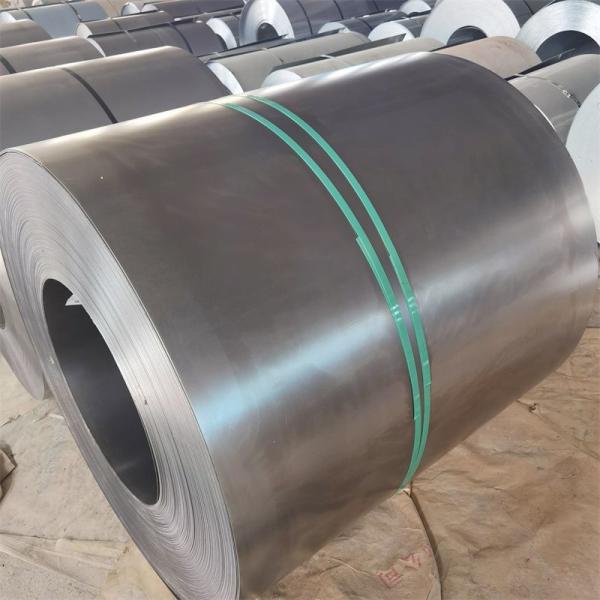

Product Display:

Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCDHot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD

Packing:

l Standard packing

Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD

l Fine packing

Hot Dip Galvanized Steel Sheet Coil With Width1000 1219 1500mm DX51D+Z SGCC SGCD
