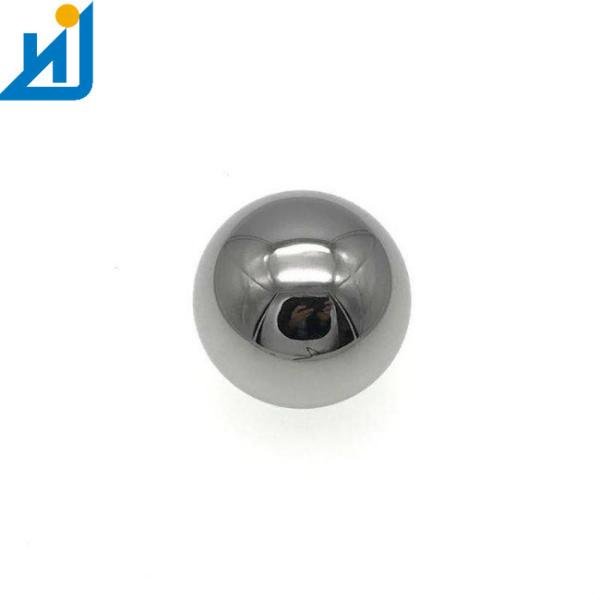

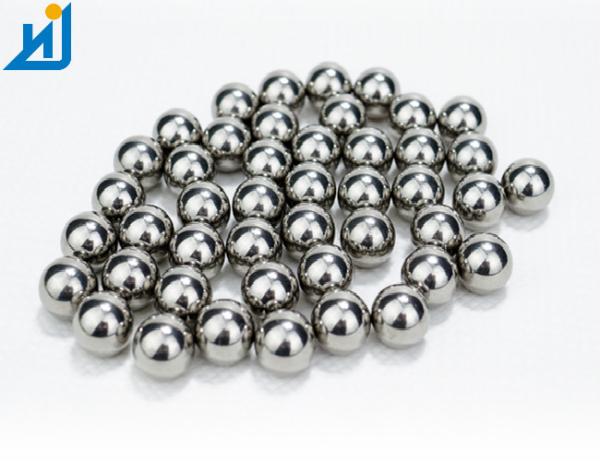

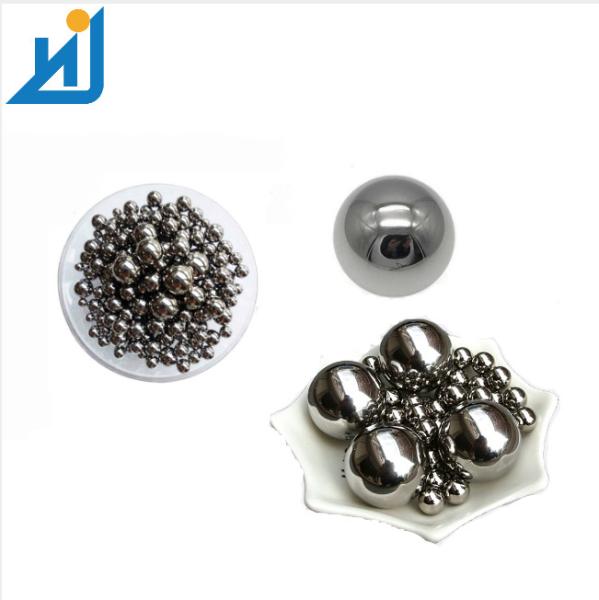

3/8 Refined Cemented Tungsten Carbide Balls Hard Alloy Ball For Valves
3/8 Refined Cemented Tungsten Carbide Balls Hard Alloy Ball For Valves
3/8 Refined Cemented Tungsten Carbide Balls Hard Alloy Ball For Valves
3/8 Refined Cemented Tungsten Carbide Balls Hard Alloy Ball For Valves
3/8 Refined Cemented Tungsten Carbide Balls Hard Alloy Ball For Valves
3/8 Refined Cemented Tungsten Carbide Balls Hard Alloy Ball For Valves
3/8 Refined Cemented Tungsten Carbide Balls Hard Alloy Ball For Valves
3/8 Refined Cemented Tungsten Carbide Balls Hard Alloy Ball For Valves
Specifications
Brand Name :
JN
Model Number :
3/8" 9.525MM
Certification :
ISO SGS
Place of Origin :
China
MOQ :
500kg
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
10tons per month
Delivery Time :
7-15 days
Packaging Details :
Ploy bag+25kg carton box+1000kg wooden box
Product Name :
Refined Tungsten Steel Ball
Inch Size :
3/8" 9.525MM
Density :
14.6 g/cm3-15 g/cm3
Grade :
YG6
Feature :
higher hardness and wear resistance
Hardness :
HRA89
Description

3/8" Refined Tungsten Steel Ball Hard Alloy Ball for Valves,Cemented Tungsten Carbide Balls

The characteristics of tungsten carbide ball:

Tungsten Carbide balls are used in a variety of applications where extreme hardness and wear resistance is required.Tungsten Carbide has has emerged as a superior alternative to steel in many applications where severe conditions occur, such as high abrasion, corrosion and high temperatures.

The working process of tungsten carbide ball:

Heat treating: This high temperature process hardens the ball.

Grinding or polishing: The ball is then ground to the approximate diameter of the finished tungsten carbide balls. This polishing process the ball to the exact size required.

Chemical Composition:

Chemical Composition:(%) WC CO
YG6 94.00 6.00

Physical / mechanical / thermal / electric / magnetic properties
Property
Symbol
U.o.M.
Type
Notes
Values
Density
δ
[g/cm3]
Physical
Room temp.
14.82
Young's modulus
E
[GPa]
Mechanical
-
650
Specific heat
c
[J/kg-K]
Thermal
Room temp.
220
Coefficient of linear thermal expansion
α
[10^-6/ºC]
Thermal
(ΔT=0-100°C)
5.2
Thermal conductivity
λ
[W/(m·K)]
Thermal
Room temp.
80.0
Electric resistivity
ρ
[Ω*m*10^-9]
Electric
-
200
Relative magnetic permeability
µ
-
Magnetic
Slighlty ferrom.
max 12
3/8

3/8
