11/16 17.463mm Stainless Steel Balls 304 Grade With AISI ASTM Standard
11/16 17.463mm Stainless Steel Balls 304 Grade With AISI ASTM Standard
11/16 17.463mm Stainless Steel Balls 304 Grade With AISI ASTM Standard
11/16 17.463mm Stainless Steel Balls 304 Grade With AISI ASTM Standard
11/16 17.463mm Stainless Steel Balls 304 Grade With AISI ASTM Standard
11/16 17.463mm Stainless Steel Balls 304 Grade With AISI ASTM Standard
11/16 17.463mm Stainless Steel Balls 304 Grade With AISI ASTM Standard
11/16 17.463mm Stainless Steel Balls 304 Grade With AISI ASTM Standard
Specifications
Brand Name :
JN
Model Number :
11/16" (17.463mm)
Certification :
ISO SGS
Place of Origin :
ShanDong,China
MOQ :
500kg
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
50 Tons Per Month
Delivery Time :
7-15 days
Packaging Details :
Ploy bag+25kg carton box+1000kg wooden box
Product Name :
20mm Steel Ball
Material Type :
AISI304 SS304 SUS304
Grade :
G100 G200 G500
Application :
Nail Polish
Sample :
Free
Standard :
AISI, ASTM, DIN, EN, GB, JIS
Description

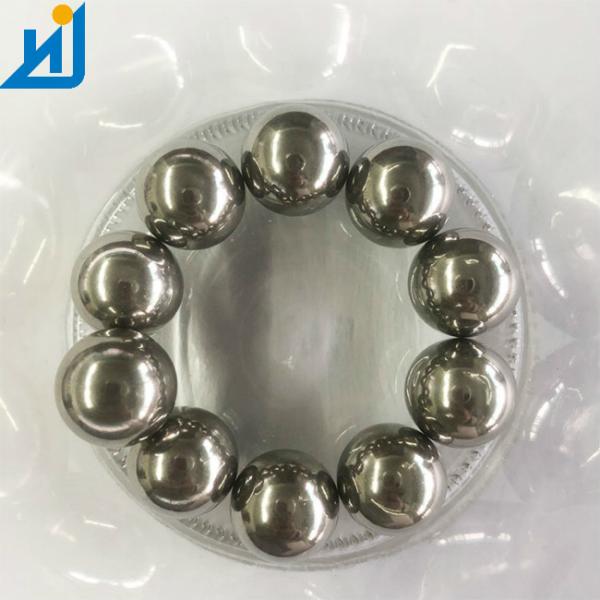

11/16" (17.463mm) Stainless Steel Ball 304 with AISI ASTM Standard
Basic Information

Unhardened austenitc stainless steel balls, they display good mechanical characteristics, toughness and corrosion resistance.

AISI 304L provides lower carbon content, AISI 302 better mechanical characteristics.

Balls are provided in the passivated condition.

AISI type 304 stainless steel balls are used where good corrosion resistance is important, but hardness is not.

They offer good resistance to atmospheric corrosion, dyes, food environments, sterilizing solutions and many organic

and inorganic materials.

Chemical Composition Of AISI304 Steel Ball

C

0.08% max.
Si

1.00% max.
Mn

2.00% max.
P

0.045% max.
S

0.030% max.
Cr

17.00 to 19.00%
Molybdenum

-----
Ni

8.00 -- 10.00%


physical capability of 304 stainless steel balls
Tensile strength

100,000 to 180,000 psi
Yield strength

50,000 to 150,000 psi
Tensibility

55 to 60%
Modulus of Elasticity

29,000,000 psi



Production Process

Wire Drawing →Cold Heading→Lapping→Grinding →Cold Heading→Heat Treatment→Polishing→

Picking→Polishing→Testing→Packing→Shipping


11/16

Stainless Steel Beads Application
Suitable for Precision bearings, automotive components (brakes, steering, line shaft), bicycle, agitators,

appliances, sliders, quick couplings, machine tool, lock mechanisms, conveyor belts, skates, pens,
pumps, castors, measurement instruments, valves.



11/16
11/16

Transportation Service

1. DHL,Fedex,TNT,UPS,ARAMEX,EMS,Railway,ect. express shipping ways for small quantity orders.

Express shipping way can guarantee the fast and safe delivery to the customer's hand .

2. For bulk quantity orders ,could by sea or by air way . By sea is the cheapest shipping way but this delivery time is little longer .

3. By air are very fast and safe but the shipping cost is higher .This way for urgent delivery requirement .


11/16

How to Order Our Steel Balls

When ordering balls, please specify the following:

1. Ball diameter.

2. Type of material.

3. Precision grade.

All standard balls are always in stock and ready for immediate off-the-shelf delivery.

If your application calls for custom balls, send us your specifications and we could custom prodcue for you.
