Automotive Components Chrome Steel Balls Pinball Machine 16MM G100 G200 G500 G1000
Automotive Components Chrome Steel Balls Pinball Machine 16MM G100 G200 G500 G1000
Automotive Components Chrome Steel Balls Pinball Machine 16MM G100 G200 G500 G1000
Automotive Components Chrome Steel Balls Pinball Machine 16MM G100 G200 G500 G1000
Automotive Components Chrome Steel Balls Pinball Machine 16MM G100 G200 G500 G1000
Automotive Components Chrome Steel Balls Pinball Machine 16MM G100 G200 G500 G1000
Automotive Components Chrome Steel Balls Pinball Machine 16MM G100 G200 G500 G1000
Automotive Components Chrome Steel Balls Pinball Machine 16MM G100 G200 G500 G1000
Specifications
Brand Name :
JN
Model Number :
16MM
Certification :
SGS ISO
Place of Origin :
China
MOQ :
500kg
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability :
50 Tons per Month
Delivery Time :
7-15 days
Packaging Details :
Ploy bag+25kg carton box+1000kg wooden box
Produce Name :
Bearing Balls
Grade :
G100 G200 G500 G1000
Hardness :
HRC58-65 HRC
Standard :
JIS SUJ2
Tolerance :
0.002~0.02mm refers to grade
Application :
Pinball Machine
Description

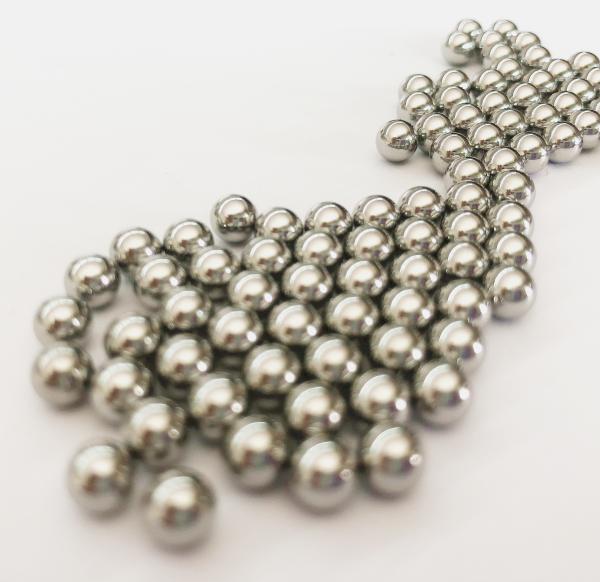

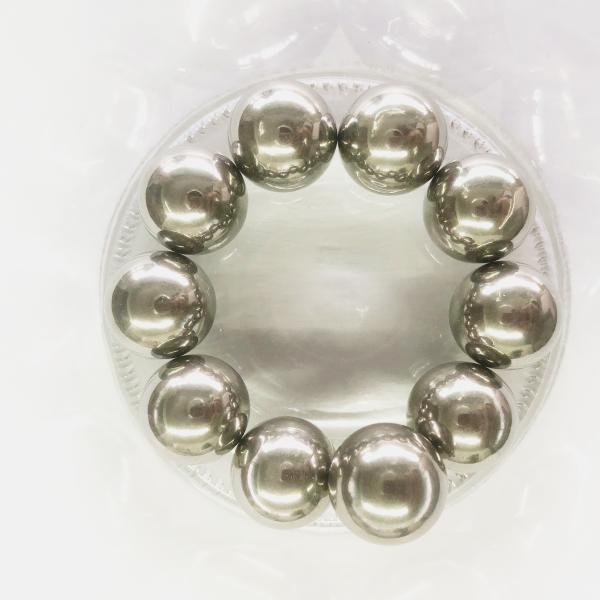

Bearing Balls Chrome Steel Ball For Pinball Machine 16MM G100 G200 G500 G1000

Characteristics

Low alloy hardened chromium steel balls, they show excellent hardness, wear resistance,
very good surface finishing and dimensional stability.
Applications
Precision bearings, automotive components (brakes, steering, line shaft), ball transfer units,
linear ball bearings, bike and motor-bike components, appliances, quick couplings,
machine tool, lock mechanisms, conveyor belts, skates, ball pens, pumps, castors,
measurement instruments, valves, recirculating balls.
Utilized in browning, polishing and milling machineries.

Basic Informaiton

Chrome steel ball/bearing steel ball
1. Material AISI 52100/ 100Cr6/ 100C6/ SUJ2/ Wks 1.3505
2. Size Range 0.6mm-180mm
3. Grade G10-1000
4. Hardness 58-65 HRC
5. Magnetic Yes
6. Applications Bearings, Ball screws, Automotive (transmission, steering, anti-lock brakes) Valves...

Chemical Composition

%C
%Si
%Mn
%P
%S
%Cr
%Mo
%Cu
%Al
%O
0.93-1.05
0.15-0.45
0.60-0.80
0.025 max
0.015 max
1.65-1.95
0.20-0.35
0.30 max
0.050 max
0.0015 max
Physical / mechanical / thermal / electric / magnetic properties
Property
Symbol
U.o.M.
Type
Notes
Values
Density
δ
[g/cm3]
Physical
Room temp.
7.82
Young's modulus
E
[GPa]
Mechanical
-
205
Specific heat
c
[J/kg-K]
Thermal
Room temp.
477
Coefficient of linear thermal expansion
α
[10^-6/ºC]
Thermal
(ΔT=0-100°C)
13.1
Thermal conductivity
λ
[W/(m·K)]
Thermal
Room temp.
42.7
Electric resistivity
ρ
[Ω*m*10^-9]
Electric
-
218
Relative magnetic permeability
µ
-
Magnetic
Ferromagnetic
> 300

Technical data
Property
Type
U.o.M.
Values
U.o.M.
Values
Hardness
Mechanical
[HRC]
60 - 66
-
-
Ultimate compressive strength
Mechanical
[MPa]
2500 - 2600
[psix10^3]
362 - 377
Service temperature
Thermal
[ºC]
-60 / 150
[ºF]
-76 / 302

Automotive Components Chrome Steel Balls Pinball Machine 16MM G100 G200 G500 G1000
