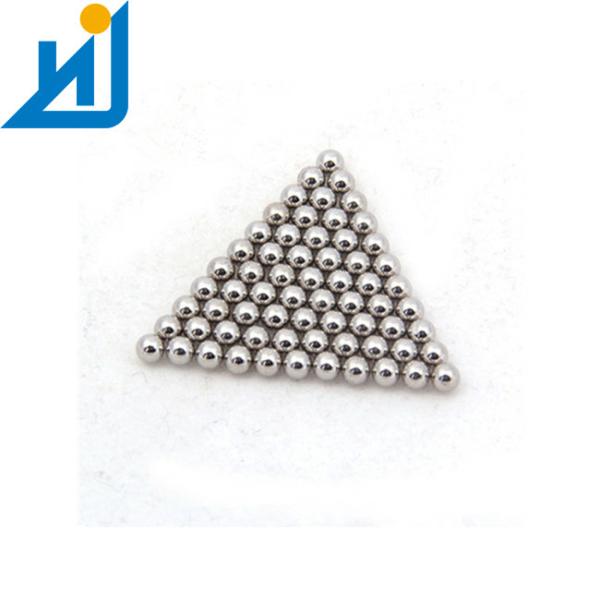

AISI52100 Chrome Steel Balls Bearing GCr15 High Precision 12.7MM G10 G20 G100
AISI52100 Chrome Steel Balls Bearing GCr15 High Precision 12.7MM G10 G20 G100
AISI52100 Chrome Steel Balls Bearing GCr15 High Precision 12.7MM G10 G20 G100
AISI52100 Chrome Steel Balls Bearing GCr15 High Precision 12.7MM G10 G20 G100
AISI52100 Chrome Steel Balls Bearing GCr15 High Precision 12.7MM G10 G20 G100
AISI52100 Chrome Steel Balls Bearing GCr15 High Precision 12.7MM G10 G20 G100
AISI52100 Chrome Steel Balls Bearing GCr15 High Precision 12.7MM G10 G20 G100
AISI52100 Chrome Steel Balls Bearing GCr15 High Precision 12.7MM G10 G20 G100
Specifications
Brand Name :
JN
Model Number :
12.7MM
Certification :
SGS ISO
Place of Origin :
China
MOQ :
500kg
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability :
50 Tons per Month
Delivery Time :
7-15 days
Packaging Details :
Ploy bag+25kg carton box+1000kg wooden box
Produce Name :
Bearing Steel Ball
Grade :
G500
Hardness :
HRC58-HRC65
Standard :
AISI,DIN,ASTM,JIS,EN
Tolerance :
0.002~0.02mm refers to grade
Chrome type :
100CrMn6 , 100CrMo7-3 , 100CrMnMo8
Description

AISI52100 GCr15 High Precision Chrome Steel Bearing Ball 12.7MM G10 G20 G100

Product description:

(1) G10 G20 G100 AISI52100 chrome steel ball bearing GCr15 high precision 12.7MM uses low alloy hardened chrome steel ball, which has excellent hardness, wear resistance, and has very good surface finish and dimensional stability.


(2) The steel has medium plasticity, low cutting performance, and poor welding performance.


(3) With high and uniform hardness, good abrasion resistance and high contact fatigue performance


(4) Mainly used for special bearings and pumps, aerosol pumps, gardening and household sprayers, pre-compressed perfume pumps, seams, valves for medical applications, agricultural backpack sprayers, recirculating balls. It is also used in food, chemical, naval, aerospace and military industries.

AISI52100 Chrome Steel Balls Bearing GCr15 High Precision 12.7MM G10 G20 G100

Applications
High precision & aircraft bearings, recirculating ball screws, high precision spindles & gears, bearings for electric motors.
Chemical composition
%C
%Si
%Mn
%P
%S
%Cr
%Ni
%Mo
%Cu
-
-
-
0.95-1.05
0.15-0.35
0.25-0.45
0.025 max
0.025 max
1.40-1.65
0.30 max
0.08 max
0.20 max
-
-
-
International standards
ITA
USA
GER
FRA
UK
RUS
CHN
JAP
100Cr6
52100
1.3505
100C6
534A99
9Ch1
GCr15
SUJ2

Physical / mechanical / thermal / electric / magnetic properties
Property
Symbol
U.o.M.
Type
Notes
Values
Density
δ
[g/cm3]
Physical
Room temp.
7.80
Young's modulus
E
[GPa]
Mechanical
-
200
Specific heat
c
[J/kg-K]
Thermal
Room temp.
464
Coefficient of linear thermal expansion
α
[10^-6/ºC]
Thermal
(ΔT=0-100°C)
12.3
Thermal conductivity
λ
[W/(m·K)]
Thermal
Room temp.
42.4
Electric resistivity
ρ
[Ω*m*10^-9]
Electric
-
215
Relative magnetic permeability
µ
-
Magnetic
Ferromagnetic
> 300
Technical data
Property
Type
U.o.M.
Values
U.o.M.
Values
Hardness
Mechanical
[HRC]
60 - 66
-
-
Ultimate compressive strength
Mechanical
[MPa]
2500 - 2600
[psix10^3]
362 - 377
Service temperature
Thermal
[ºC]
-60 / 150
[ºF]
-76 / 302

Steel Balls For Bearings

Steel balls for bearings are generally made from chrome steel.

High precision low noise AISI 52100 chrome steel balls are a good example

and they are used in situations where reduced noise levels and tolerance are required.

Many steel balls for bearings such as AISI 52100 100 Cr6

have a hardness of between 60 - 66 and ultimate compressive strength of 2500 - 2600 although

100CrMn6 chrome steel balls are a good alternative when a higher core strength is required.

FAQ:
Q1, can I order samples?

A: Yes, we welcome you to order samples to test and check the quality. Mixed samples are acceptable.

Q2, how about the production time?

Answer: The sample size is usually required within 3 days, and the batch production time is more than 5 tons, it takes 5 to 20 days.

Q3, do you have a MOQ limit on stainless steel balls?

Answer: The minimum order quantity is usually 1kg or 100pcs.

Question 4, how do you ship the goods and how long does it take to reach your destination?

A: We usually ship by DHL, UPS, Fedex or TNT. It usually takes 3-5 days to reach the destination. Airlines and sea transportation are also optional.

Q5, how to order?

A: First, please let us know your requirements or applications.

Secondly, we quote according to your requirements or suggestions.

Third, you confirm the sample and deposit it into the formal order.

Fourth, we arrange production.

Q6. Can I print my logo on the product?

A: Yes, please inform us formally before production, and confirm the design according to our samples first.

Q7, what is the packaging?

A: Usually, we put the plastic bag balls in a carton and then put them in a plywood tray, which can be customized.
