Metal Carbon Iron Hardened Steel Balls 5/32 7/32 15/64 For Furniture Castors
Metal Carbon Iron Hardened Steel Balls 5/32 7/32 15/64 For Furniture Castors
Metal Carbon Iron Hardened Steel Balls 5/32 7/32 15/64 For Furniture Castors
Metal Carbon Iron Hardened Steel Balls 5/32 7/32 15/64 For Furniture Castors
Metal Carbon Iron Hardened Steel Balls 5/32 7/32 15/64 For Furniture Castors
Metal Carbon Iron Hardened Steel Balls 5/32 7/32 15/64 For Furniture Castors
Metal Carbon Iron Hardened Steel Balls 5/32 7/32 15/64 For Furniture Castors
Metal Carbon Iron Hardened Steel Balls 5/32 7/32 15/64 For Furniture Castors
Specifications
Brand Name :
JN
Model Number :
5/32" 7/32" 15/64"
Certification :
SGS ISO
Place of Origin :
China
MOQ :
500kg
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,Paypal, L/C, D/A, D/P
Supply Ability :
25 Tons per Month
Delivery Time :
7-15 days
Packaging Details :
Ploy bag+25kg carton box+1000kg wooden box
Product Name :
Iron Steel Ball
Grade :
G1000
Ball Type :
Harden Ball or Soft Balls
Density :
7.82g/cm3
Young's Modulus :
200GPa
Feature :
Not Corrosion Resistance
Description

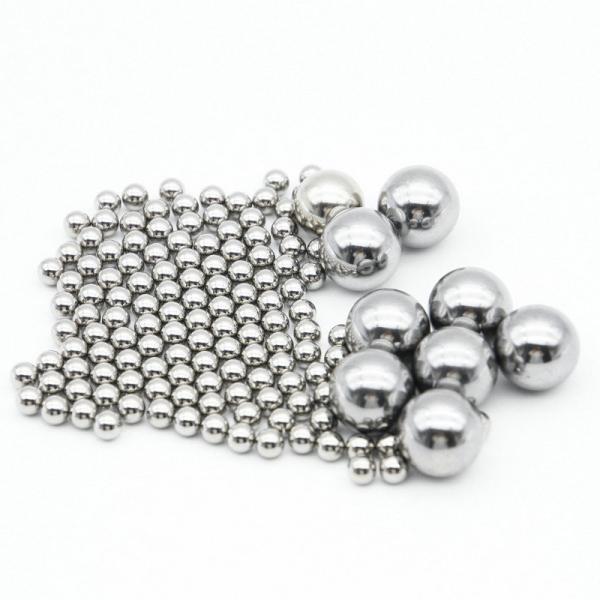

Metal Balls Carbon Steel Iron Ball 5/32" 7/32" 15/64" For Furniture Castors

Carbon steel balls are made from a combination of steel and carbon,

with carbon present in concentrations lower than 0.093%.

The carbon acts as a hardening agent, providing additional strength,

at a lower cost than alternative hardening techniques.

They can be used in anything from furniture castors to sliding rails,

polishing and milling machines, peening processes, and welding appliances,

depending on the type of carbon steel balls you choose.

Precision carbon steel balls for industry

Our carbon steel balls come in four varieties: low carbon steel cemented,

low soft unhardened carbon steel, low carbon steel, and high carbon balls.

Each variety has its own properties, so choose one that matches your requirements.

Chemical Composition

Type
%C
%Si
%Mn
%P
%S
1010
0.08-0.13
0.10-0.35
0.30-0.60
0.040 max
0.050 max
1015
0.12-0.18
0.10-0.35
0.30-0.60
0.040 max
0.050 max

International Standards

ITA
USA
GER
FRA
UK
RUS
CHN
JPN
C10
1010
1.1121
CC10
040A10
10
10
S10C
C15
1015
1.1141
XC12
080M15
15
15
S15C

Physical / mechanical / thermal / electric / magnetic properties
Property
Symbol
U.o.M.
Type
Notes
Values
Density
δ
[g/cm3]
Physical
Room temp.
7.82
Young's modulus
E
[GPa]
Mechanical
-
200
Specific heat
c
[J/kg-K]
Thermal
Room temp.
468
Coefficient of linear thermal expansion
α
[10^-6/ºC]
Thermal
(ΔT=0-100°C)
11.8
Thermal conductivity
λ
[W/(m·K)]
Thermal
Room temp.
57.9
Electric resistivity
ρ
[Ω*m*10^-9]
Electric
-
155
Relative magnetic permeability
µ
-
Magnetic
Ferromagnetic
> 500

Applications
Furniture rails and rollers, drawers and rolling bearings, locks, oilers and greasers, skates, caddies,
toys, belt and roller conveyors, tumble finishing.

Range
Diameters (min/max)
U.o.M.
Diameters (min/max)
U.o.M.
Precision grades (ISO 3290-1 / DIN 5401 / AFBMA)
1.500 - 300.000
[mm]
1/16 - 12
["]
G100-200-300-500-600-700-1000
