Super Cold Drawn 2205 Duplex Stainless Steel Tubing A790 Standard Industrial
Super Cold Drawn 2205 Duplex Stainless Steel Tubing A790 Standard Industrial
Super Cold Drawn 2205 Duplex Stainless Steel Tubing A790 Standard Industrial
Super Cold Drawn 2205 Duplex Stainless Steel Tubing A790 Standard Industrial
Specifications
Brand Name :
zheheng
Model Number :
19mm
Certification :
ISO9001 PED
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
50TONS/30DAYS
Delivery Time :
30 DAYS
Packaging Details :
In bundles with waterproof material,or wooden crate packing
Material :
2205 / S32205 / 1.4462 / X2CRNIMON22-5-3
Standard :
A789 / A790
Type :
seamless
Technique :
Cold drawing
Trade terms :
FOB,CNF,CIF
Certificates :
BV,DNV,NK,LR,ABS
Description

TP304 / S30400 / 1.4301 / X5RCI18-10 Duplex Steel Pipe / A269 / A213 standard

The main products include steel sheets, steel plates, steel coils, steel pipes, steel tubes, steel bars, steel circles, square steel, hexagonal bar, steel tube, steel pipe fittings, flanges, etc. And also we can produce according to the requirments of the costomer. The production capacity of our company is anout 200000 tons per year. .

product description:

ITEM: TP304 / S30400 / 1.4301 / X5RCI18-10 Duplex Steel Pipe / A269 / A213 standard
Brand: RONSCO,BAOSTEEL, JISCO, TISCO, etc.
Material:
201.202.301.302.304.304L.310S.316.316L.321.430.430A.309S.2205.2507.
2520.430.410.440.904Lect. Or Customized
Standard: GB, AISI, ASTM, ASME, EN, BS, DIN, JIS
Size: ANSI /ASME size is under,other standard of size is for ready choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm)
Length: Max.18 Meter,NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10
Surface: Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull and so on.
Application: Decoration, construction and upholstery, etc
Package: Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request
Lead Time: 7-10days for one FCL Or according to order list detail
Payment: A: 100% T/T advance. ( For small order.) B: 30% T/T and balance against copy of documents.
C: 30% T/T advance, balance L/C at sight D: 30% T/T , balance L/C usance
E: 100% L/C usance. F: 100% L/C at sight.
Sample: we could offer the sample for free charge but do not pay the cost of freight.

QUALITY CONTROL

Chemical Composition about stainless steel pipe
904L ≤2.0 ≤0.045 ≤1.0 ≤0.035 - 23.0-28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.80 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤0.03 0.19-0.22 0.24-0.26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤0.03 - 11.5-13.5 -
430 ≤0.12 ≤0.75 ≤1.0 ≤0.040 ≤0.03 ≤0.60 16.0-18.0 -

Hydrostatic or Nondestructive Electric Test
1 Each tube shall be subjected to the nondestructive electric test or the hydrostatic test. The type of test to be used shall be at the option of the manufacturer, unless otherwise
specified in the purchase order.
2 The hydrostatic test shall be in accordance with Specification A 1016/A 1016M, except that in the calculation of the hydrostatic test pressure 64000(441.2) shall be substituted for 32000(220.6).

production range:

Austenitic Steel: TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H,
TP317,TP317L, TP321, TP321H,TP347, TP347H,904L…
Duplex Steel : S32101,S32205,S31803,S32304,S32750, S32760
Others:TP405,TP409, TP410, TP430, TP439 ...

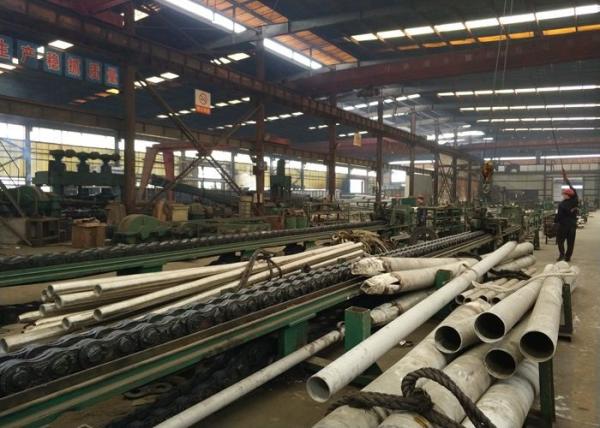

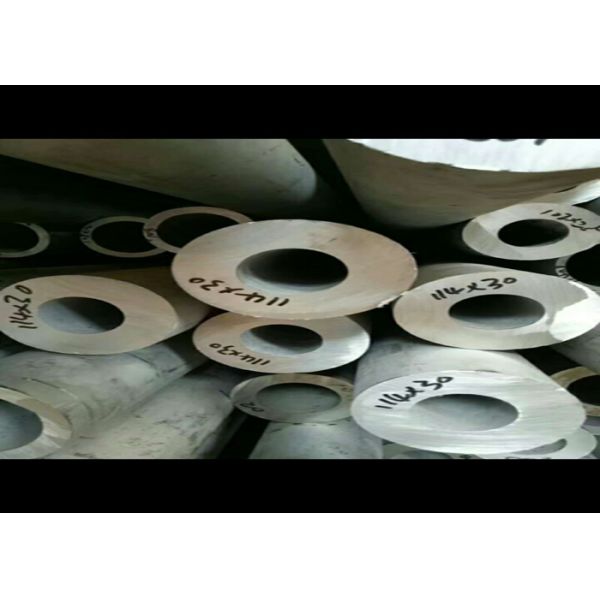

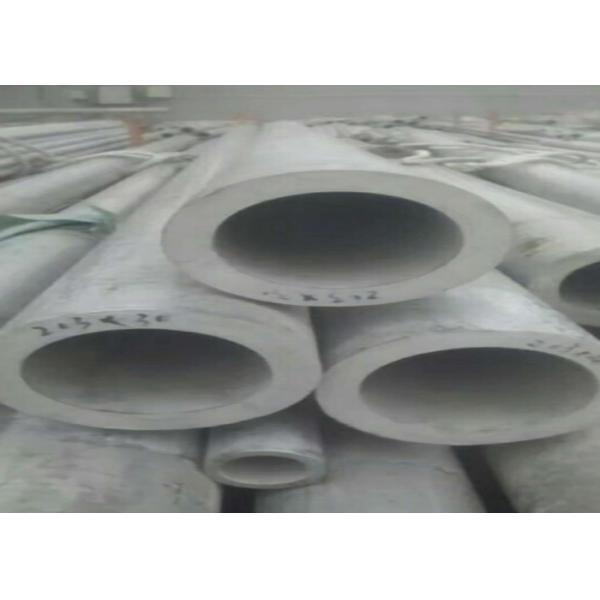

product show:

Super Cold Drawn 2205 Duplex Stainless Steel Tubing A790 Standard IndustrialSuper Cold Drawn 2205 Duplex Stainless Steel Tubing A790 Standard Industrial
