Small Diameter Seamless Stainless Steel Tubing Bright Annealed Food Grade
Small Diameter Seamless Stainless Steel Tubing Bright Annealed Food Grade
Small Diameter Seamless Stainless Steel Tubing Bright Annealed Food Grade
Small Diameter Seamless Stainless Steel Tubing Bright Annealed Food Grade
Specifications
Brand Name :
zheheng
Model Number :
1"*sch10s
Certification :
ISO9001 PED
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, D/A, D/P
Supply Ability :
50TONS/30DAYS
Delivery Time :
30 DAYS
Packaging Details :
In bundles with waterproof material,or wooden crate packing
Material :
seamless stainless steel tubing
Standard :
ASTM, AISI, DIN, EN, GB, JIS
Type :
seamless
Applications :
petrochemical; environmental protection
OD :
33.4mm
WT :
2mm
Description

Bright annealed, small diameter tubing / seamless stainless steel tubing

You can select different sizes stainless steel products with high quality from a reliable manufacturer with reasonable price. We can supply stainless tube/pipe, stainless steel sheet&plate, stainless steel bar, stainless steel wire, stainless steel coil etc.

zheheng steel As one of the leading manufacturer in stainless steel seamless tubing, seamless steel tubing are our basic and main advantage products.it is one of exporter ,manufacturer ,producer,supply all kinds of ss stainless steel tubing

.pipe fittings .steel flanges

We zheheng steel have the most advanced producing and testing equipments, also have the biggest production scale.

We can also supply small diameter tubing, bright annealed seamless steel tubing,which are widely used.Petrol, Oil and Nature gas, Chemical Industry,Boiler,Heat Exchange Architecture,Machine Equipment,City Decoration,Bridge, Food and Medical Industry,Electric Components,Shipping Manufacture,

Small diameter stainless steel tubing description:

Stainless pipe
Pickling
Project Standard ASTM A269/A269M ASTM A312/A312M ASTM A213/A213M ASTM A789/789M ASTM A790/790M
Grade

TP304

TP304L

TP321

TP316

TP316L

TP317

TP321

TP347

N08904/904L

TP304

TP304L

TP309S

TP310S

TP316

TP316L

TP316Ti

TP317

TP317L

TP321

TP347

TP304

TP304L

TP309S

TP316

TP316L

TP316Ti

TP317

TP310S

TP321

TP347

S32250

S31803

S32750

S31803

S32750
Size

NPS:1/8”-48” SCH:5S,10/10S,20,30,40/40S,60,80/80S,100,120,140,160,STD,XS,XXS

OD:0.23”-26”(5.8mm-660.4mm)

WT:0.04”- 2”(1.0mm-50.8mm)
Length According to customer’s request, Max. 18Meters.
Chemical composition(According to the standard)
Eg. TP304L(ASTM)/1.4306(DIN)
C max Si max Mn max P max S max Cr Ni N max
TP304L 0.035 1.00 2.00 0.045 0.030 18.0-20.0 8.0-12.0 --
1.4306 0.030 1.00 2.00 0.045 0.030 18.0-20.0 10.0-12.0 0.11
Surface Finish Pickled
Packing Bundles for each piece then packed in seaworthy wooden cases.
Applications For fluid & gas transport; structure & machining; petrochemical; environmental protection; electricity etc
Other standards

ASTM A270/270M

ASTM B667

EN10216-5

JIS G3463

2. Description:

3.Chemical Composition:

3.1Material

Grade C Si Mn P S Ni Cr Mo N
317l ≤0.03 ≤1.00 ≤2.0 ≤0.045 ≤0.03 11.0-15.0 18.0-20.0 3.0-4.0
321 ≤0.08 ≤1.0 ≤2.0 ≤0.04 ≤0.03 9.0-12.0 17.0-19.0 Ti≥5xC
409 ≤0.08 ≤1.0 ≤1.0 ≤0.04 ≤0.03 ≤0.5 10.5-11.7 Ti6xC%≤0.70
409L ≤0.03 ≤1.0 ≤1.0 ≤0.04 ≤0.03 0.5 10.5-11.7 Ti8xC%≤0.70
430 ≤0.12 ≤1.0 ≤1.0 ≤0.04 ≤0.03 16.0-18.0
SS329J4L ≤0.03 ≤1.0 ≤1.5 ≤0.04 ≤0.03 5.50-7.50 24.00-26.00 2.50-3.50

3.2 Mechanical Property:

ASTM Tensile Strength (Mpa) Yield Strength (Mpa) Elogation (%) Hardness (HRB)
317L ≥480 ≥175 ≥40 ≤200
321 ≥515 ≥205 ≥40 ≤95
409 ≥380 ≥205 ≥20 ≤80
409L ≥350 ≥185 ≥22 ≤80
430 ≥450 ≥205 ≥22 ≤80
SS329J4L ≥620 ≥450 ≥18 ≤320
Our Services

You can select different sizes stainless steel products with high quality from a reliable manufacturer with reasonable price. We can supply stainless tube/pipe, stainless steel sheet&plate, stainless steel bar, stainless steel wire, stainless steel coil etc.

Size

 Outer Diameter:1mm-10mm; 10mm-250mm
Wall Thickness: 0.01mm-4mm; 1mm-20mm
Length: 10mm -6000mm
Surface treatment Polishing, Mirro surface, Bright, Pickling
Type Welded, ERW, seamless
Manufacturing method Hot rolled, Extrusion, Cold drawn, Cold rolled
Shape Round, Square, Irregular

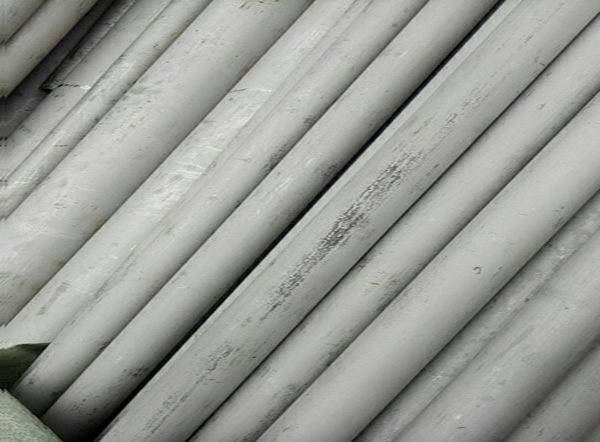

Bright annealed, small diameter tubing show:

Small Diameter Seamless Stainless Steel Tubing Bright Annealed Food Grade
